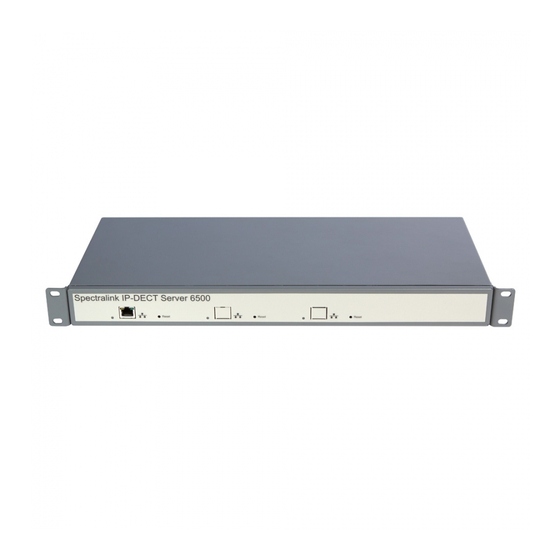

- Page 1 Spectralink DECT/IP-DECT Server 400/6500/2500/8000 Synchronization and Deployment Guide 14169000 Version 9.3 October, 2016...
- Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.
-
Page 3: Table Of Contents
Introduction Scope ..............................3 About Synchronization ........................3 Types of Synchronization ..........................3 Before You Begin ............Related Documentation . - Page 4 Configuration and Administration ....................28 DECT/IP-DECT Server System Settings ....................28 Base Station Individual Settings ......................... 29 Base Station Synchronization Status ......................29 Troubleshooting Troubleshooting - Deployment ....................... 31 Troubleshooting - Synchronization ....................31...
-
Page 5: Scope
Synchronization and Deployment Guide Chapter 1: Introduction This guide is intended for qualified technicians who are looking to will deploy Spectralink DECT/IP-DECT Server Solutions. To qualify to deploy a DECT/IP-DECT Server Solution, you must have understood and completed the technical training successfully. This guide covers both 1G8 and 1G9 deployment. -
Page 6: Before You Begin
To subscribe, go to www.spectralink.com Terminology and Acronyms Table 2 refers to common terms and acronyms that are related to the Spectralink DECT/IP-DECT solutions that are found through this document. Table 2 Terminology and Acronyms Term... - Page 7 Synchronization and Deployment Guide Table 2 Terminology and Acronyms Term Definition Method for synchronizing IP base stations over LAN synchronization Synchronization Method for synchronizing IP base stations over Air (radio) Over the Air (OTA) Radio Frequency RSSI Value Radio Signal Strength Indication value. A relative expression for the signal strength of a base station as measured by the handset at a given location.
-
Page 8: Off-Site Planning, Prior To Visit
Synchronization and Deployment Guide Chapter 2: Off-site planning, prior to visit Below you will find at list of questions and considerations to take into account during the planning phase prior to visiting a site. If the customer wants to replace existing DECT/IP-DECT system: Is it an IP base station or a digital base station? •... - Page 9 Synchronization and Deployment Guide — Are there more sites (sub-sites)? » If there are several sites - the remote site(s) (i.e. those where it will not be possible to establish synchronization) must be DECT/IP DECT system(s) • Study blueprints of building —...
-
Page 10: Conclusion
“Conclusion” Based on the above analysis the installer must be able to determine whether to install a Spectralink DECT server or Spectralink IP-DECT server or a combination. • DECT/IP-DECT systems with IP base stations can benefit from synchronization over LAN •... -
Page 11: On-Site Investigation
Synchronization and Deployment Guide Chapter 3: On-site Investigation Below you will find considerations to take into account when investigating a site. Aligning expectations with customers • Start your on-site visit with meeting the customer and align expectations to coverage (areas) and dropped calls (expect 2-3-% dropped calls). -
Page 12: On-Site Deployment
Synchronization and Deployment Guide Chapter 4: On-site Deployment Below you will find at list of tools to bring on a site, and descriptions of how to deploy Spectralink IP-DECT 400/6500 Server and Spectralink DECT 2500/8000 Server. Deployment Tools Bring the following tools for deployment: •... - Page 13 Consider also to bring a device you can use to play sound in the handset. • • A good idea would be also to bring a laptop with network cable to connect with the Spectralink IP-DECT server 400. • If you bring a repeater you should also bring power supply for the repeater, and repeater programming kit (Product ID: 02509210).
-
Page 14: Important Parameters
Synchronization and Deployment Guide Important parameters When deploying there are 3 parameters which are equally important: • RSSI-values: Value indicating signal strength • Q-value: Value indicating the signal quality (preferably steady at min 64) • Sound Quality: Measured by walking away from the base station with the handset and measure where the RSSI value drops below 75 and the Q-value stays constant at 64. -
Page 15: Ip Base Station Using Synchronization Over The Air
Necessary overlap in sync chains Necessary overlap between sync chains Deployment procedure Start by placing your tripod with the Spectralink IP-DECT server 400 (from your deployment tools) where you plan the first base station (the sync master) to be: 14169000 Version 9.3... - Page 16 Consider where to place the next base so that the handset gets opportunity to handover to the next base. Determine where to place the next bases. • Move your tripod with the Spectralink IP-DECT server 400 to the next placement. • Take picture of the placement and note it on a blueprint of the building.
-
Page 17: Placement Of Base Stations
Synchronization and Deployment Guide Placement of base stations When determining where to place the bases following points have to be considered: • To get maximum coverage from a base station the bases must be as visible as possible. • A guideline can be to consider where a light bulb can be placed to light up the maximum area. RSSI 75 •... -
Page 18: Digital Base Stations And Ip Base Stations Using Lan Synchronization
Synchronization and Deployment Guide • Sync latency in sync chains. • Propagation through building materials – dense materials influence propagation negatively. • Base stations shall be placed away from reflecting materials like metal. • Base stations shall be placed away from other DECT base stations. •... -
Page 19: Deployment Procedure
Synchronization and Deployment Guide Deployment procedure Start by placing your tripod with the Spectralink DECT server 400/2500 from your deployment tools) where you plan the first base station to be: • Place the first base station in a corner of the building so there is coverage in the corner. - Page 20 To perform a site survey on the deployment handset find the Survey menu from the Main menu of the handset. • Note how far the place is from the tripod with the Spectralink DECT sever 400/2500. • Find the next place for the base station app 2 x the above distance from the first placement •...
-
Page 21: Placement Of Base Stations
Synchronization and Deployment Guide • Continue until the whole site is fully deployed. Note Remember to document each placement for base stations. • Take pictures of where exactly the base station must be placed. • Note it on a drawing of the premises. Placement of base stations When determining where to place the base stations following points have to be considered: 14169000 Version 9.3... - Page 22 Synchronization and Deployment Guide • To get maximum coverage from a base station the bases must be as visible as possible. A guideline can be to consider where a light bulb can be placed to light up the maximum area. RSSI 70 •...
- Page 23 Synchronization and Deployment Guide • Propagation through building materials – dense materials influence propagation negatively. • Base stations shall be placed away from reflecting materials like metal. • Base stations shall be placed away from other DECT base stations. • “When in doubt deploy”, i.e.
-
Page 24: Lan Based Radio Synchronization
Below you will find a description of how LAN based radio synchronization works, and what must be considered when synchronizing. The latest generation of Spectralink IP base stations support the use of corporate Local Area Network (LAN) for synchronization of the DECT radios when running software release PCS15C or later. -
Page 25: Deployment Of Base Stations
Synchronization and Deployment Guide Deployment of Base Stations When the base station radios are synchronized via radio, the base stations that synchronize to each other must be within radio coverage of each other. This is not required when LAN based radio synchronization is used. -
Page 26: Multicast
Any single switch in the network cannot exceed 100nsec of jitter. PTPv2 event traffic must be given strict priority over all other network traffic. Multicast and the IGMP protocol (if used) must be configured per Spectralink requirements. Several factors influence the packet delay: 14169000 Version 9.3... -
Page 27: Network Topology
Synchronization and Deployment Guide • Network topology • The traffic patterns on the network • The quality and configuration of the switches Network topology Every time a PTPv2 packet passes through a switch - jitter is potentially added. Therefore, the number of switches between all base stations must be kept low. -
Page 28: Quality And Configuration Of The Switches
Synchronization and Deployment Guide If the traffic load causes problems for the base station synchronization, it may be necessary to separate the base stations from the data network. Be aware that separation via VLAN may not help as it is still using the same physical link. Quality and Configuration of the Switches The LAN based synchronization is highly dependent on the quality and configuration of the deployment network. - Page 29 Synchronization and Deployment Guide Default sync type This setting controls the default synchronization type for new base stations. The following values can be selected: • Free running • Radio (default) • LAN sync transport protocol This setting controls the protocol used as transport for the PTPv2 packets used for synchronization.
- Page 30 Synchronization and Deployment Guide The “Lost” column displays the number of times the synchronization has been lost and a percentage which is the ratio of time the base station has been without synchronization. The lost counter must be low but is expected to grow slowly over time. The percentage will start high and must be zero after some time.
- Page 31 Deployment Guide Chapter 6: Troubleshooting Synchronization Table 4 Synchronization Symptom Problem Resolution All base stations are Multicast traffic is blocked in Enable multicast traffic on all switches between synchronization masters the network. the base stations. Synchronization is OK at IGMP snooping is active, but Add an IGMP querier to the network or disable startup but fails after a no IGMP querier is present on...
- Page 32 ©2013 Spectralink Corporation. All rights reserved. Specifications subject to change without notice. Spectralink Corporation 2560 55th Street Boulder CO 80301, USA Spectralink Europe ApS Spectralink Europe ApS Bygholm Søpark 21E DK-8700 Horsens Tel. +45 7560 2850 infodk@spectralink.com www.spectralink.com...
