How to Wall Mount the Repeater

For best RF coverage, the device must be mounted vertically on walls.
Caution:
The repeater and external antenna is to be fixed-mounted on indoor permanent struc-
tures providing a separation distance of at least 20 cm/8 inches from all persons during
normal operation and must not be co-located or operating in conjunction with any other
antenna or repeater. The maximum radiated output power is 1W e.i.r.p.

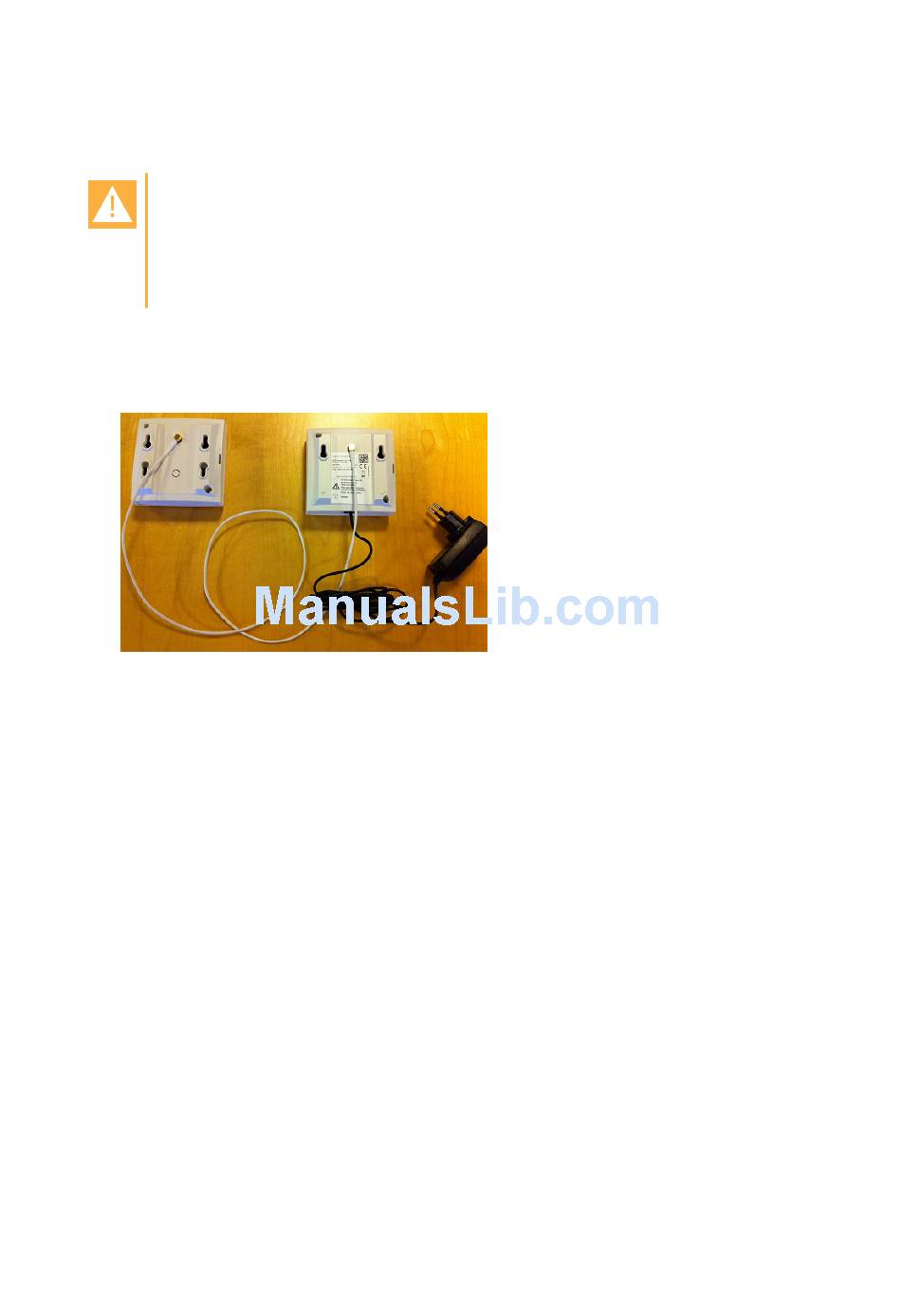

1. Connect the power supply cable to the RJ9 port on the bottom of the repeater.
For repeaters with external antenna, connect the external antenna cable to the antenna con-
nector on the rear side of the repeater and in the same way on the external antenna.
2. Mount the repeater on the wall using the anchors and screws accompanying the product.
3. After installing the repeater you need to power it up. The power supply for the repeater is
9VDC, 350mA.
14215700-IG, Edition 8.0
April 2018, Original document
71
