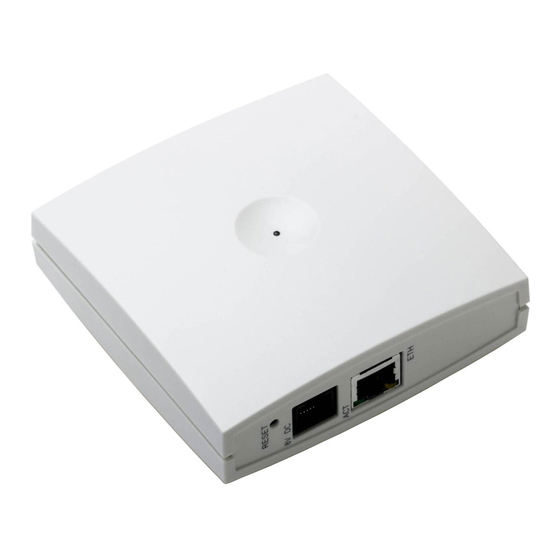

SpectraLink IP-DECT Server 400 Setup Manual
Hide thumbs
Also See for IP-DECT Server 400:
- Installation and configuration manual (221 pages) ,
- Synchronization and deployment manual (36 pages) ,
- Deployment manual (32 pages)
Related Manuals for SpectraLink IP-DECT Server 400
Summary of Contents for SpectraLink IP-DECT Server 400
- Page 1 Spectralink IP-DECT Server 400 DECT Complete Plan (DCP) Mode Setup Guide 722-0250-000 Rev: A April 2024...
- Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.
-
Page 3: Table Of Contents
Loading the DECT Complete Plan License into AMIE ..........6 Creating a Configuration Template using the Configuration Wizard ....... 8 Registering the IP-DECT Server 400 DCP Mode in AMIE (Single Server) ....11 Registering the IP-DECT Server 400 DCP Mode in AMIE (Bulk Registration) ..13 IP-DECT Server 400 Setup and Configuration Template Provisioning .... -
Page 4: Chapter 1: About This Guide
DECT Complete Plan Mode. The DCP Mode allows for servers to be easily deployed, configured and managed with the use of AMIE. Once configured, the IP-DECT Server 400 will run in DCP Mode starting from the initial boot sequence, changing its functionalities and GUI in the following ways: •... -
Page 5: Related Documentation
Available online at this link, by selecting the appropriate server model. Spectralink DECT Training material In order to gain access to the Spectralink training material, you must attend training and become Spectralink Certified Specialist. Please visit http://partneraccess.spectralink.com/training/classroom- training for more information and registration. -
Page 6: Chapter 2: Setup
Below is a step-by-step description of how to convert the Spectralink IP-DECT Server 400 to an IP-DECT Server 400 DCP Mode, and how to connect it to AMIE. The steps must be followed in the listed order, to ensure a successful conversion process. - Page 7 Spectralink IP-DECT Server Setup Guide—DCP Mode 3. Validate the License Data and press Submit. 4. Validate that the newly added license is displayed in the License overview and make sure that the License Status displays a green key icon. 722-0250-000 Rev: A...
-
Page 8: Creating A Configuration Template Using The Configuration Wizard
Spectralink IP-DECT Server Setup Guide—DCP Mode Creating a Configuration Template using the Configuration Wizard 1. Navigate to Server Management and open the Config Wizard. 2. Select the IP-DECT Server 400 DCP Mode and press Next. 722-0250-000 Rev: A May 2024... - Page 9 Spectralink IP-DECT Server Setup Guide—DCP Mode 3. Select any of the Features that you want to enable for the IP-DECT Server 400 DCP Mode. When done, press Next. 4. Select the desired Server Configuration for the IP-DECT Server 400 DCP Mode.
- Page 10 Spectralink IP-DECT Server Setup Guide—DCP Mode 5. Select the desired SIP Configuration for the IP-DECT Server 400 DCP Mode. When done, press Next. 6. Finally, set a description for the Configuration Template, and press Save. 722-0250-000 Rev: A May 2024...
-
Page 11: Registering The Ip-Dect Server 400 Dcp Mode In Amie (Single Server)
Select the IP-DECT Server 400 DCP Mode under Model • Insert a unique Server Name • Insert a MAC Address and Product ID for the IP-DECT Server 400 to be • registered and converted to DCP Mode. Select the Configuration Template created in the previous step. - Page 12 Spectralink IP-DECT Server Setup Guide—DCP Mode 3. Confirm that the IP-DECT Server 400 DCP Mode shows Enabled under the Redirection Service column, and Pending Connection under Status. 722-0250-000 Rev: A May 2024...
-
Page 13: Registering The Ip-Dect Server 400 Dcp Mode In Amie (Bulk Registration)
Server_Name: • MAC_Address • Product_ID • • License_Key For every row of data, a server will be added to AMIE. 2. Press Bulk Registration to register more than one IP-DECT Server 400 DCP Mode 722-0250-000 Rev: A May 2024... -
Page 14: Ip-Dect Server 400 Setup And Configuration Template Provisioning
IP-DECT Server 400 Setup and Configuration Template Provisioning The next steps depend on whether the IP-DECT Server 400 is currently in use, or if it is a new system that hasn’t been previously booted. a) Initial boot of the IP-DECT Server 400. - Page 15 Spectralink IP-DECT Server Setup Guide—DCP Mode Warning: Configuration Template provisioning process Do not log in to the IP-DECT Server 400 (DCP Mode) GUI once this sequence has started – this action could cause the process to stop unexpectedly. Do not power off or disconnect the IP-DECT Server 400 (DCP Mode) once this sequence has started –...
- Page 16 Spectralink IP-DECT Server Setup Guide—DCP Mode 722-0250-000 Rev: A May 2024...
