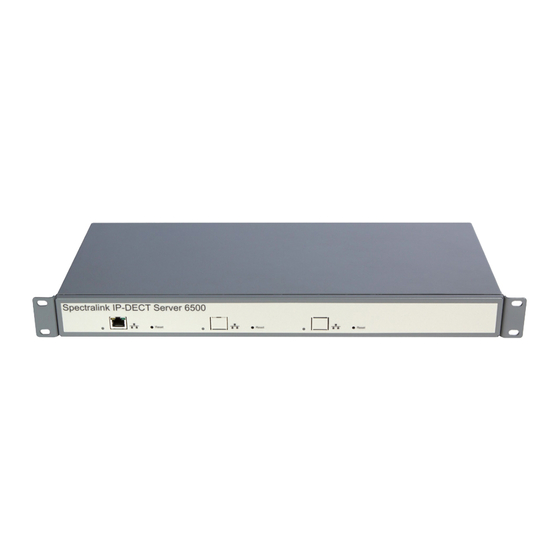

- Page 1 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Cisco Unified Communications Manager (CUCM) 3rd party SIP installation 14205603-IG, Edition 11.0 May 2020, Original document...
- Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.
-
Page 3: Table Of Contents
General Settings SIP Settings Enabling Feature Codes Adding Users and Handsets To Add Users to the Spectralink IP-DECT/DECT/Virtual IP-DECT Server from the Web Based Administration Page Cisco Unified Communications Manager Setting up Phone Security Profile Adding DECT Handsets to CUCM Database... -
Page 4: About This Guide
Handsets configured as a Third Party SIP device will have basic integration. To be able to register Spectralink handsets, phone licenses for 3rd party SIP are required. For more information on License Unit Calculation and download of phone licenses to CUCM, see the Cisco documentation. -
Page 5: Infrastructure Version Information
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Infrastructure Version Information Interoperability testing between the Spectralink IP-DECT/DECT/Virtual IP-DECT Server and the CUCM was conducted using version 11.0 of the Cisco Unified Communications Manager and firmware PCS 16F of the Spectralink IP-DECT Server and PCS 16C of the Spectralink DECT Server. -
Page 6: Related Documentation
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Related Documentation All Spectralink documents are available at http://support.spectralink.com/. Subject Documentation Cisco Unified Communications Man- Navigate to the Cisco documentation site for the latest ager Cisco documentation. -
Page 7: Feature List
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Feature List The following features are supported: Supported features Telephony Basic Calling Call Hold Call Transfer Call Waiting Call Forward (DECT endpoints only) Message Waiting Directed Call Park... -
Page 8: Configuration And Feature Details
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Configuration and Feature Details Supported features Description/Setting Basic Calling Allows user to make and answer calls. Call Hold Allows user to put a call on hold. Call Transfer Allows user to transfer the active call to some other number. -
Page 9: Spectralink Ip-Dect/Dect/Virtual Ip-Dect Server
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Spectralink IP-DECT/DECT/Virtual IP- DECT Server Below is a description of how to configure the Spectralink IP-DECT/DECT/Virtual IP-DECT Server and how to add users and handsets to the system. - Page 10 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide To modify the SIP settings from the web based Administration Page: 1. Click Configuration, and then click SIP. 2. Modify the settings below. Field Setting SIP Configuration - General...
- Page 11 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Example using a standalone CUCM configuration: Example using a CUCM cluster solution: 14205603-IG, Edition 11.0 May 2020, Original document...
- Page 12 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 3. Click Save, and then reboot the system. For an example of the configuration XML file from your Spectralink IP-DECT Server, see "Example of XML Configuration File" on page 29.
-
Page 13: Enabling Feature Codes
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Enabling Feature Codes The advanced feature, Call forward unconditional, is accessed by dialing special feature codes from the DECT handsets. To provide access to the Call forward unconditional feature, the fea- ture codes must be enabled. - Page 14 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Note: The Call Forward Unconditional feature can be activated permanently at subscription time by the service provider. By modifying the Rerouting Calling Search Space option, this will provide the sufficient rights for the handset to action the CFU on the CUCM.
-
Page 15: Adding Users And Handsets
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Adding Users and Handsets Each individual DECT user/handset must be added to the Spectralink IP-DECT/DECT/Virtual IP- DECT Server and later on to the Cisco Unified Communications Manager. - Page 16 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Field Setting Standby text (Optional) Standby text is a fixed label shown in the top left part of the screen on the DECT handset when in idle state.
- Page 17 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Field Setting Domain (Optional) Enter the domain part of a SIP URI. Note: Allowed characters: a-z, A-Z, 0-9, .- Note: If not configured, the default domain entered under SIP configuration will be used.
- Page 18 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 3. Click Save. 4. When the users have been added to the Spectralink IP-DECT/DECT/Virtual IP-DECT Server, the handsets must be DECT subscribed in order to be able to communicate with the Spectralink IP-DECT/DECT/Virtual IP-DECT Server.
-
Page 19: Cisco Unified Communications Manager
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Cisco Unified Communications Manager Below is a description of how to prepare the Cisco Unified Communications Manager, how to setup phone security profile, how to add end users, how to add the DECT handsets either manually or using the Bulk Administration Tool. - Page 20 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 4. On the Phone Security Profile Configuration page, enter relevant data in the following fields: Field Setting Device Protocol Name Enter the relevant name. Description Enter description.
-
Page 21: Adding Dect Handsets To Cucm Database
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Adding DECT Handsets to CUCM Database This section describes how to add the individual Spectralink DECT Handsets to the Cisco Unified Communications Manager. Each individual DECT handset is identified by a unique IPEI number, which is generated by the Spectralink IP-DECT/DECT/Virtual IP-DECT Server. - Page 22 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Field Setting Self Service User ID (Optional) Enter the relevant self service user ID, e.g. 9130 (We may use the extension number we intend for the device. This is not used by Spectralink...
- Page 23 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 4. Click Save. 5. Click Add New and repeat the procedure if you want to add another new end user. To Add Handsets Manually 1. Navigate to Cisco Unified CM Administration > Device > Phone.
- Page 24 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 3. In the Phone Type list, select Third-party SIP Device (Basic), and then click Next. 14205603-IG, Edition 11.0 May 2020, Original document...
- Page 25 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 4. On the Phone Configuration page, enter relevant data in the following fields: Field Setting Device Information Device Name Enter (copy and paste) the IPEI number from...
- Page 26 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 5. When the data is entered, click Save, and then click OK to apply the configuration. 6. In the appearing Association Information, click Add a new DN.
- Page 27 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide 7. On the Directory Number Configuration page, enter the relevant Directory Number in the Directory Number field. Note: The Directory Number must be the same as the Username/Extension field in the User setup on the Spectralink IP-DECT/DECT/Virtual IP-DECT Server.
-
Page 28: Automated End User/Handset Provisioning Using The Bulk Administration Tool
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Automated End User/Handset Provisioning using the Bulk Administration Tool When adding many handsets to the Cisco Unified Communications Manager it is beneficial to use bulk provisioning in order to automate the handset creation process. The Bulk Administration Tool allows you to import the user list and end user configuration from a CSV file in CUCM format into the database. -
Page 29: Example Of Xml Configuration File
Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide Example of XML Configuration File <?xml version="1.0" encoding="UTF-8" standalone="true"?> <config> <application> <enable_msf>true</enable_msf> <enable_rpc>false</enable_rpc> <internal_messaging>true</internal_messaging> <username>GW-DECT/admin</username> </application> <dect> <auth_call>true</auth_call> <encrypt_voice_data>Disabled</encrypt_voice_data> <global_tx_power>0</global_tx_power> <send_date_time>true</send_date_time> <subscription_allowed>true</subscription_allowed> </dect> <feature_codes> <call_forward> <unconditional>... - Page 30 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide <ptp> <transport>l2</transport> </ptp> </rfp> <security> <allow_new_media_resource>true</allow_new_media_resource> <allow_new_rfp>true</allow_new_rfp> </security> <sip> <callwaiting>true</callwaiting> <client_transaction_timeout>4000</client_transaction_timeout> <dect_detach_action>ignore</dect_detach_action> <defaultdomain>172.29.193.102</defaultdomain> <dnsmethod>arecord</dnsmethod> <dtmf> <duration>270</duration> <info>false</info> <rtp>true</rtp> <rtp_payload_type>101</rtp_payload_type> </dtmf> <gruu>true</gruu> <localport>5060</localport> <maxforwards>70</maxforwards> <media> <codecs>64,1,2,0,0,0</codecs> <ice>...
- Page 31 Spectralink IP-DECT Server 200/400/6500, Virtual IP-DECT Server One and DECT Server 2500/8000 Interoperability Guide <weight2>100</weight2> <weight3>100</weight3> <weight4>100</weight4> </proxy> <registration_expire>3600</registration_expire> <send_to_current_registrar>true</send_to_current_registrar> <separate_endpoint_ports>false</separate_endpoint_ports> <showstatustext>true</showstatustext> <tcp_contact_ephemeral_port>true</tcp_contact_ephemeral_port> <tls_allow_insecure>false</tls_allow_insecure> <tos>96</tos> <transport>tcp</transport> <use_sips_uri>false</use_sips_uri> <vlan_cos>3</vlan_cos> </sip> <snmp> <community>public</community> <enable>false</enable> </snmp> <upnp> <broadcast>false</broadcast> <enable>true</enable> </upnp> </config> 14205603-IG, Edition 11.0...
