Spectralink DECT Servers and Base Stations
Feature List
Spectralink IP-DECT Server 200/400/6500
Spectralink Virtual IP-DECT Server One
Spectralink DECT Server 2500/8000
Spectralink Digital DECT Base Station
Spectralink IP-DECT Base Station
Spectralink DECT Repeater
Spectralink External Antenna
722-0211-000 Rev: A
November 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-DECT Server 200 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraLink IP-DECT Server 200

Summary of Contents for SpectraLink IP-DECT Server 200

  • Page 1 Spectralink DECT Servers and Base Stations Feature List Spectralink IP-DECT Server 200/400/6500 Spectralink Virtual IP-DECT Server One Spectralink DECT Server 2500/8000 Spectralink Digital DECT Base Station Spectralink IP-DECT Base Station Spectralink DECT Repeater Spectralink External Antenna 722-0211-000 Rev: A November 2020...
  • Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

  • Page 3: Table Of Contents

    Contents Chapter 1: List of Features ..........4 Chapter 2: Technical Specifications ........8 Spectralink IP-DECT Server 200 ................. 8 Spectralink IP-DECT Server 400 ................11 Spectralink IP-DECT Server 6500 ................14 Spectralink Virtual IP-DECT Server One ..............16 Spectralink DECT Server 2500 .................. 18 Spectralink DECT Server 8000 ..................

  • Page 4: Chapter 1: List Of Features

    Chapter 1: List of Features Server Server Server Virtual Server Server 6500 Server One 2500 8000 Functionality AMiE         COTA G.729 codec           Support of loneworker ...
  • Page 5 Spectralink Servers and Base Stations Feature List Server Server Server Virtual Server Server 6500 Server One 2500 8000 Login/Logout only using long press 9. Login/Logout can be done in a combination of using long press 8, turning handset on/off and removing/...
  • Page 6 Spectralink Servers and Base Stations Feature List Server Server Server Virtual Server Server 6500 Server One 2500 8000       IP-DECT Base Station Spectralink IP-DECT Base Station   Digital DECT Base Station Spectralink Digital DECT Base Station Merge XML files from ...
  • Page 7 6500 Server One 2500 8000 * Note: Besides the Frequency Swap License, a special Spectralink DECT Handset 7212 (part no. 02610004) with a special configuration (and compliance to be compatible with frequency swap) is also required. ** Following is supported: •...

  • Page 8: Chapter 2: Technical Specifications

    Chapter 2: Technical Specifications Below you will find technical specifications of the different Spectralink Server Solution components: • Spectralink IP-DECT Server 200 • Spectralink IP-DECT Server 400 • Spectralink IP-DECT Server 6500 • Spectralink DECT Server 2500 • Spectralink DECT Server 8000 •...
  • Page 9 SNMP SYSTEM ARCHITECTURE • The Spectralink IP-DECT Server 200 is both a radio unit and a SIP integration unit to the host SIP Call Control / UC platform. • 1 x Spectralink IP-DECT Server 200 and up to 3 x Spectralink DECT Repeaters (2 or...
  • Page 10 Spectralink Servers and Base Stations Feature List • Possible to connect external antenna (Only Spectralink External Antenna can be used) ELECTRO MAGNETIC COMPATIBILITY (EMC) APPROVALS (REGULATORY STANDARDS) • EMC: EN 301 489 - 1 • EMC: EN 301 489 - 6 •...

  • Page 11: Spectralink Ip-Dect Server 400

    • SNMP SYSTEM ARCHITECTURE • The Spectralink IP-DECT Server 400 is both a radio unit and a SIP integration unit to the host SIP Call Control / UC platform. Additionally, it controls and handles the Spectralink IP-DECT Base Stations. •...
  • Page 12 Spectralink Servers and Base Stations Feature List ○ 12 wireless users/six simultaneous calls ○ Optional 60 users * Note: * The Spectralink IP-DECT Server 400 does have 12 channels, but is limited to 6 channels in basic version. • Multi-cell configuration:...
  • Page 13 ○ Indoor: 20 - 50 m. (65 - 165 ft.) ○ Outdoor: 300 m. (1000 ft.) • Full slot DECT radio (12 channels) • Possible to connect external antenna (Only Spectralink External Antenna can be used) ELECTRO MAGNETIC COMPATIBILITY (EMC) APPROVALS (REGULATORY STANDARDS) •...

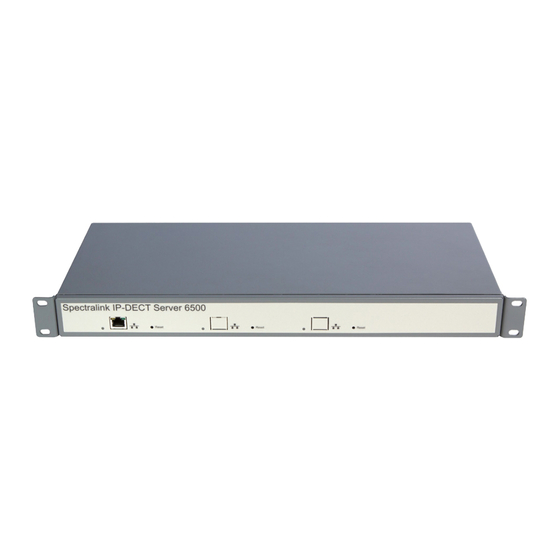

  • Page 14: Spectralink Ip-Dect Server 6500

    Spectralink Servers and Base Stations Feature List • l External power outlet (power supply must be ordered separately) • l External antenna connection (Only Spectralink External Antenna can be used) PHYSICAL CHARACTERISTICS • Size: 100 x 100 x 43 mm (3.94 x 3.94 x 1.69 in.) •...
  • Page 15 • SNMP SYSTEM ARCHITECTURE • The Spectralink IP-DECT Server 6500 is a control unit acting as a SIP integration unit to the host SIP Call Control / UC (IP-PBX) platform, which also controls and handles all other infrastructure elements •...

  • Page 16: Spectralink Virtual Ip-Dect Server One

    Spectralink Servers and Base Stations Feature List • EN 55024: A, A2 • FCC RULES, CRF47, PART15, class B digital device SAFETY (REGULATORY STANDARDS) • UL 60950-1 CAN/CSA-C22.2 No. 60950-1-03 • Safety: EN 60950 - 1 ENVIRONMENTAL CONDITIONS • Operating temperature: 10 - 40º C (50 - 104º F) •...
  • Page 17 SNMP SYSTEM ARCHITECTURE • The Spectralink Virtual IP-DECT Server One is a control unit acting as a SIP integration unit to the host SIP Call Control / UC (IP-PBX) platform, which also controls and handles all other infrastructure elements •...

  • Page 18: Spectralink Dect Server 2500

    Spectralink Servers and Base Stations Feature List • G.729 NETWORK • Manual or dynamic host configuration protocol (DHCP) • Time and date synchronization PROVISIONING • Configuration • User data • Server firmware • Base station firmware (License required) • Handset firmware INTEROPERABILITY •...
  • Page 19 150, but more handsets can be subscribed if low telephone traffic on server. ○ Registered Spectralink DECT Handsets (analogue interface): 32 ○ Spectralink Digital DECT Base Stations: up to eight per base station interface card ○ Spectralink DECT Repeaters: 3 per base station ○...
  • Page 20 Spectralink Servers and Base Stations Feature List PROVISIONING • Configuration • User data • Server firmware • Base station firmware (License required) • Handset firmware (License required) APPROVALS (REGULATORY STANDARDS) • EN 55022, Class A • EN 55024: A, A2 •...

  • Page 21: Spectralink Dect Server 8000

    Spectralink Servers and Base Stations Feature List INTEROPERABILITY • For information about supported Call Control/Unified Communications (UC) (PBX and IP-PBX) platforms, visit http://support.spectralink.com/. Spectralink DECT Server 8000 ANALOG LINE SUPPORT • CLIP FSK Bellcore • DTMF CLIP • Loop break •...
  • Page 22 ○ Simultaneous calls per media resource (G.711 & G. 726): 32 ○ Spectralink Digital DECT Base Stations: 512 ○ Spectralink DECT Repeaters: 3 per base station ○ Spectralink IP-DECT Base Station option: 1024 (each active call takes up two channels on the media resource card) ○ Linked servers: 8 ○...
  • Page 23 Spectralink Servers and Base Stations Feature List • CISPR 22 • ICES-003 • CAN/CSA-CEI/IEC CISPR 22 SAFETY (REGULATORY STANDARDS) • UL 60950-1 CAN/CSA-C22.2 No. 60950-1-03 • UL File No: E170690 • IEC 60950-1 • Safety: EN 60950 - 1 •...

  • Page 24: Spectralink Digital Dect Base Station

    Spectralink Digital DECT Base Station SERVER CONNECTION • LED status indication • 2 or 4 wire connection to Spectralink DECT Server for max. 4 or 8 simultaneous calls. RADIO INTERFACE • RF output 20 to 24 dBm at antenna connection •...

  • Page 25: Spectralink Ip-Dect Base Station

    North America, Europe, Australia and New Zealand. Spectralink IP-DECT Base Station SYSTEM ARCHITECTURE • The Spectralink IP-DECT Base Station does have 12 channels, but only 11 can be used when synchronizing over the air. NETWORK • 10/100 Mbps Ethernet port •...
  • Page 26 ○ Indoor: 20 - 50 m. (65 - 165 ft.) ○ Outdoor: 300 m. (1000 ft.) • Full slot DECT radio (12 channels) • Possible to connect external antenna (Only Spectralink External Antenna can be used) ELECTRO MAGNETIC COMPATIBILITY (EMC) APPROVALS (REGULATORY STANDARDS) •...

  • Page 27: Spectralink Dect Repeater

    Typical range: ○ Indoor: 20 - 50 m. (65 - 165 ft.) ○ Outdoor: 300 m. (1000 ft.) • Full slot DECT radio (12 channels) • Possible to connect external antenna (Only Spectralink External Antenna can be used) 722-0211-000_A.docx November 2020...

  • Page 28: Spectralink External Antenna

    Spectralink Servers and Base Stations Feature List DECT RADIO APPROVAL EN 301 406 • FCC RULES PART 15 / Subpart D, RSS-213 ELECTRO MAGNETIC COMPATIBILITY (EMC) APPROVALS (REGULATORY STANDARDS) • EMC: EN 301 489 - 1 • EMC: EN 301 489 - 6 SAFETY (REGULATORY STANDARDS) •...
  • Page 29 Spectralink Servers and Base Stations Feature List • 3 dB beamwidth horizontal: > 62° • 3 dB beamwidth vertical: > 62° • Front to back ratio: > 8 dB • Return loss: < 15 dB • Connector: SMB male •...
