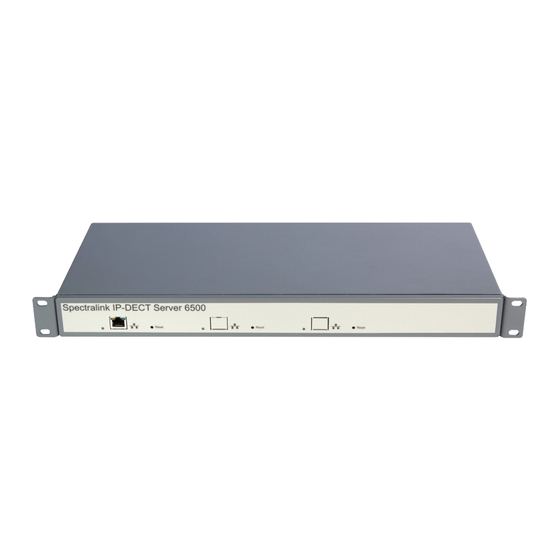

- Page 1 Spectralink IP-DECT Server 200/400/6500 Spectralink Virtual IP-DECT Server One Dstny Interoperability Guide 722-0223-000 Rev: A November 2023...
- Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.
-
Page 3: Table Of Contents
Chapter 3: Configuration and Feature Details ......7 Chapter 4: Dstny ............. 8 Activating a Third-Party SIP Phone in BCS ..............8 Chapter 5: Spectralink IP-DECT Server ......... 9 Configuring the Spectralink IP-DECT Server .............. 9 Adding Users and Handsets ..................13... -
Page 4: Chapter 1: About This Guide
Chapter 1: About This Guide This guide describes how to configure a Spectralink IP-DECT Server 200/400/6500 or a Virtual IP-DECT Server One for connecting to the Dstny Gateway. In the following the servers will be referred to as “Spectralink IP-DECT Server”. - Page 5 Available online at http://support.spectralink.com/products. Spectralink DECT Training material In order to gain access to the Spectralink training material, you must attend training and become Spectralink Certified Specialist. Please visit http://partneraccess.spectralink.com/training/classroom- training for more information and registration.
-
Page 6: Chapter 2: Feature List
Chapter 2: Feature List The following features are supported: Supported features • Basic Calling Telephony • Call Hold • Call Transfer • Call Waiting • Caller Forward (all endpoints) • Music on Hold (MOH) • Call Completed Elsewhere • Message Waiting Indication (MWI) •... -
Page 7: Chapter 3: Configuration And Feature Details
Chapter 3: Configuration and Feature Details Supported features Description/Setting Basic Calling Allows user to make and answer calls. Call Hold Allows user to place active calls on hold. Call Transfer (warm, blind) Allows user to transfer the active call to some other number. -
Page 8: Chapter 4: Dstny
Spectralink IP-DECT Server Interoperability Guide—Dstny Chapter 4: Dstny Each individual DECT handset must be assigned to a Dstny user extension. Spectralink DECT Handsets have to be configured as 3 party SIP phones in the BCS portal. Activating a Third-Party SIP Phone in BCS... -
Page 9: Chapter 5: Spectralink Ip-Dect Server
Chapter 5: Spectralink IP-DECT Server Below is a description of how to configure the Spectralink IP-DECT Server and how to add users and handsets to the system. Note: It is assumed that you have installed and configured the Spectralink IP-DECT Server solution including deployment and administration of base stations before continuing the configuration described below. - Page 10 DHCP, it is necessary to assign a reservation for the device on the DHCP server. SIP Settings The Spectralink IP-DECT Server requires a few SIP settings to be adjusted in order to connect properly to the Dstny Gateway. 722-0223-000 Rev: A...
- Page 11 Spectralink IP-DECT Server Interoperability Guide—Dstny Note: SIP settings not mentioned below should be left at their default values. To modify the SIP settings from the web-based Administration Page: Click Configuration, and then click SIP. Modify the settings below. Field Setting...
- Page 12 Spectralink IP-DECT Server Interoperability Guide—Dstny Click Save, and then reboot the system. Enabling Feature Codes The advanced feature, Call forward unconditional, is accessed by dialing special feature codes from the DECT handsets. To provide access to the Call forward unconditional feature, the feature codes must be enabled.
-
Page 13: Adding Users And Handsets
Adding Users and Handsets Each individual DECT handset/user must be added to the Spectralink IP-DECT Server and also on to the BCS Portal. This section describes how to add the handsets to the Spectralink IP-DECT Server. To Add Users to the Spectralink IP-DECT Server from the Web-Based Administration Page Click Users, click List Users, and then click New. - Page 14 DECT handset when in idle state. E.g.: Ext 101, John Smith Note: Disallowed characters: <>\" Note: This feature is only available if Spectralink DECT handsets are being used. If third-party DECT handsets are being subscribed, this feature is not supported.
- Page 15 Spectralink IP-DECT Server Interoperability Guide—Dstny Field Setting Note: If not configured, the default domain entered under SIP configuration will be used. Display name (Optional) The name of the user can be entered here (or the same as entered as Standby Text).
- Page 16 Click Save. When the users have been added to the Spectralink IP-DECT Server, the handsets must be DECT subscribed in order to be able to communicate with the Spectralink IP-DECT Server. Please refer to the relevant handset documentation for this.
- Page 17 Spectralink IP-DECT Server Interoperability Guide—Dstny Note: You can subscribe up to 12 handsets for Spectralink IP-DECT Server 200, up to 60 handsets for Spectralink IP-DECT Server 400, or up to 4096 handsets for both Spectralink IP-DECT Server 6500 and Virtual IP-DECT Server One to register to Dstny;...
