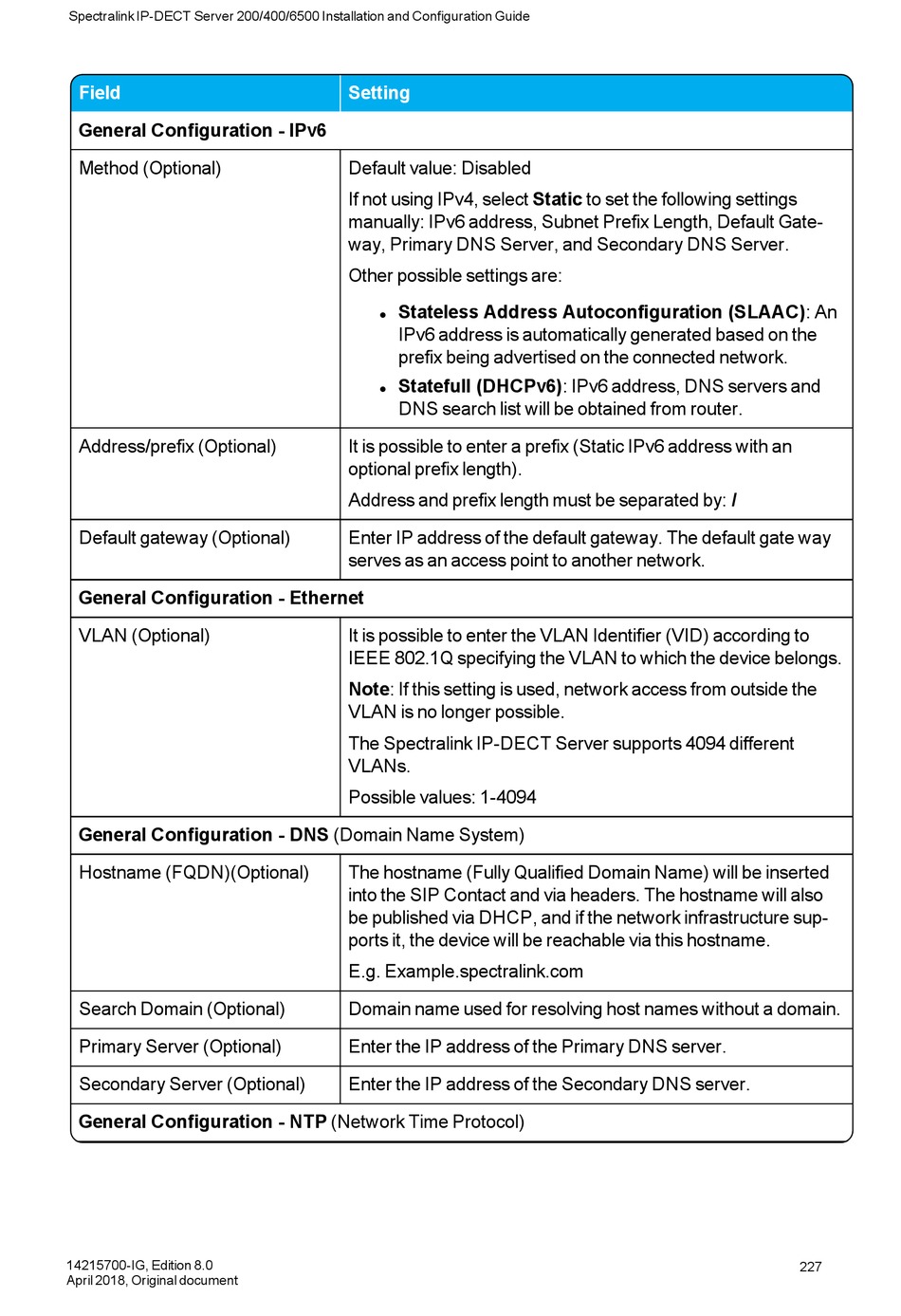

SpectraLink IP-DECT 200 Installation And Configuration Manual page 227

Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
Field
General Configuration - IPv6
Method (Optional)
Address/prefix (Optional)
Default gateway (Optional)
General Configuration - Ethernet
VLAN (Optional)
General Configuration - DNS (Domain Name System)
Hostname (FQDN)(Optional)
Search Domain (Optional)
Primary Server (Optional)
Secondary Server (Optional)
General Configuration - NTP (Network Time Protocol)
14215700-IG, Edition 8.0
April 2018, Original document
Setting
Default value: Disabled
If not using IPv4, select Static to set the following settings
manually: IPv6 address, Subnet Prefix Length, Default Gate-
way, Primary DNS Server, and Secondary DNS Server.
Other possible settings are:
Stateless Address Autoconfiguration (SLAAC): An
l
IPv6 address is automatically generated based on the
prefix being advertised on the connected network.
Statefull (DHCPv6): IPv6 address, DNS servers and
l
DNS search list will be obtained from router.
It is possible to enter a prefix (Static IPv6 address with an
optional prefix length).
Address and prefix length must be separated by: /
Enter IP address of the default gateway. The default gate way
serves as an access point to another network.
It is possible to enter the VLAN Identifier (VID) according to
IEEE 802.1Q specifying the VLAN to which the device belongs.
Note: If this setting is used, network access from outside the
VLAN is no longer possible.
The Spectralink IP-DECT Server supports 4094 different
VLANs.
Possible values: 1-4094
The hostname (Fully Qualified Domain Name) will be inserted
into the SIP Contact and via headers. The hostname will also
be published via DHCP, and if the network infrastructure sup-
ports it, the device will be reachable via this hostname.
E.g. Example.spectralink.com
Domain name used for resolving host names without a domain.
Enter the IP address of the Primary DNS server.
Enter the IP address of the Secondary DNS server.
227
