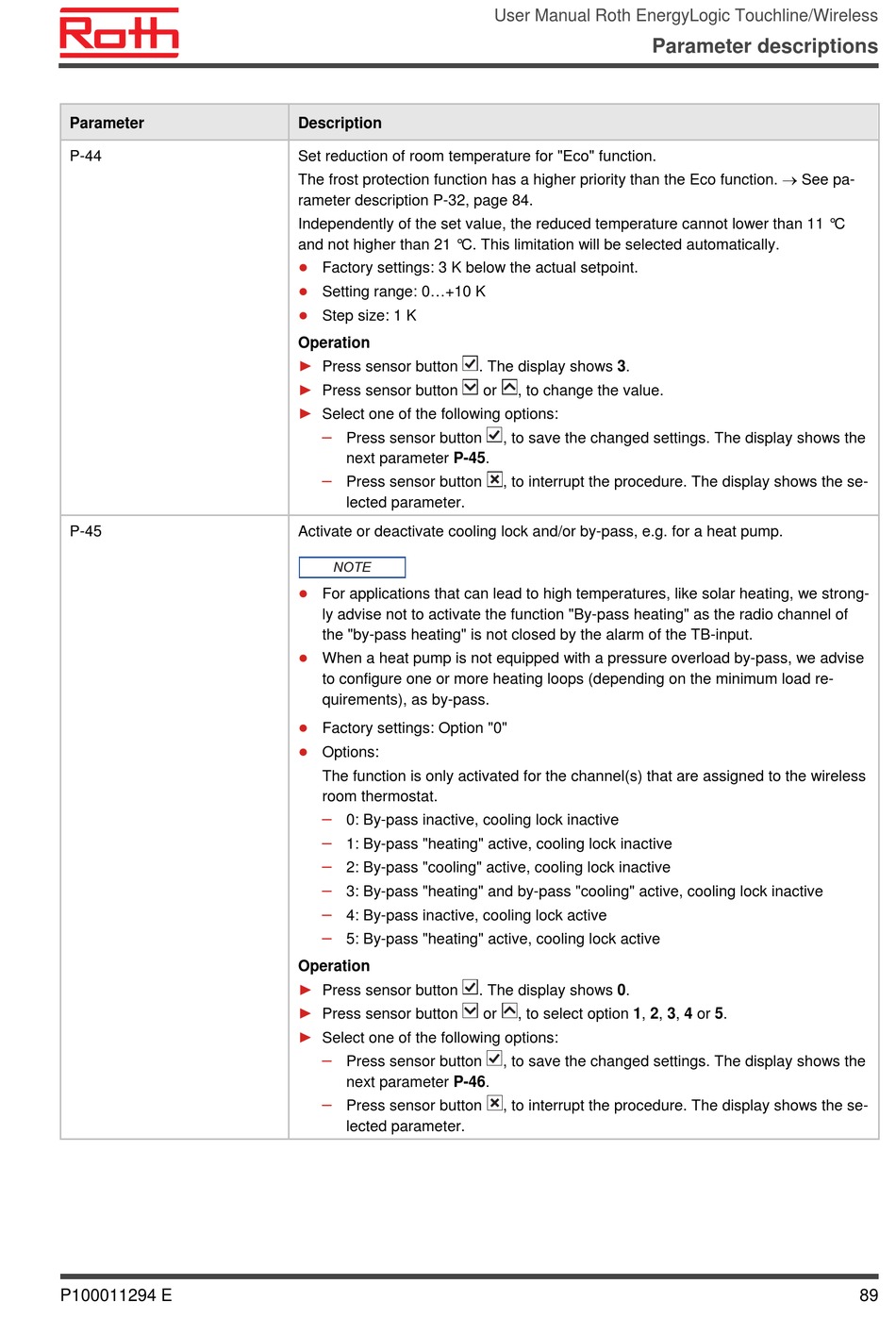

Roth EnergyLogic Touchline/wireless User Manual page 89

Parameter
P-44
P-45
P100011294 E
Description
Set reduction of room temperature for "Eco" function.
The frost protection function has a higher priority than the Eco function.  See pa-
rameter description P-32, page 84.
Independently of the set value, the reduced temperature cannot lower than 11 °C
and not higher than 21 °C. This limitation will be selected automatically.
●
Factory settings: 3 K below the actual setpoint.
●
Setting range: 0...+10 K
●
Step size: 1 K
Operation
►
Press sensor button
►
Press sensor button
►
Select one of the following options:
–
Press sensor button
next parameter P-45.
–
Press sensor button
lected parameter.
Activate or deactivate cooling lock and/or by-pass, e.g. for a heat pump.
NOTE
●
For applications that can lead to high temperatures, like solar heating, we strong-
ly advise not to activate the function "By-pass heating" as the radio channel of
the "by-pass heating" is not closed by the alarm of the TB-input.
●
When a heat pump is not equipped with a pressure overload by-pass, we advise
to configure one or more heating loops (depending on the minimum load re-
quirements), as by-pass.
●
Factory settings: Option "0"
●
Options:
The function is only activated for the channel(s) that are assigned to the wireless
room thermostat.
–
0: By-pass inactive, cooling lock inactive
–
1: By-pass "heating" active, cooling lock inactive
–
2: By-pass "cooling" active, cooling lock inactive
–
3: By-pass "heating" and by-pass "cooling" active, cooling lock inactive
–
4: By-pass inactive, cooling lock active
–
5: By-pass "heating" active, cooling lock active
Operation
►
Press sensor button
►
Press sensor button
►
Select one of the following options:
–
Press sensor button
next parameter P-46.
–
Press sensor button
lected parameter.
User Manual Roth EnergyLogic Touchline/Wireless
. The display shows 3.
or , to change the value.
, to save the changed settings. The display shows the
, to interrupt the procedure. The display shows the se-
. The display shows 0.
or , to select option 1, 2, 3, 4 or 5.
, to save the changed settings. The display shows the
, to interrupt the procedure. The display shows the se-
Parameter descriptions
