Wireless Room Thermostat; Place Of Installation And General Installation Notes - Roth EnergyLogic Touchline/wireless User Manual

5.2

Wireless room thermostat

5.2.1

Place of installation and general installation notes

Conditions for place of
installation
Installation instruction
Wireless room thermostat
with IR sensor
P100011294 E
 Information on dimensions, see page 116, chapter 14.3.1.
The place of installation for the wireless room thermostat must meet the
following conditions:
●
Interior wall
●
Not in direct sunlight
●
Not directly beside the entrance door
●
Away from sources of moisture
●
Away from splashing water
●
Away from heat sources such as fireplaces, heaters, televisions or other
electronic devices.

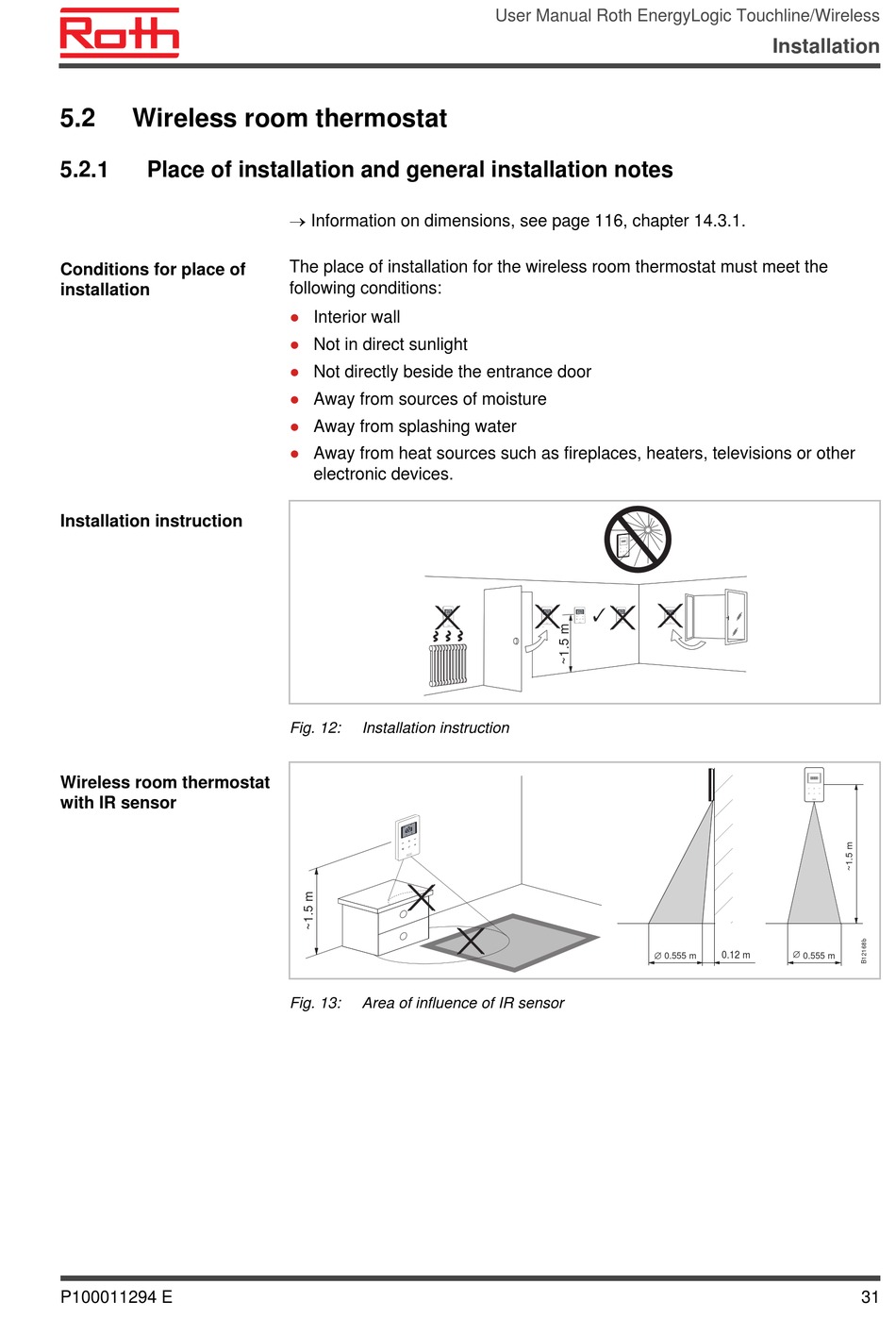

Fig. 12: Installation instruction
Fig. 13: Area of influence of IR sensor
User Manual Roth EnergyLogic Touchline/Wireless
Installation
0.12 m
0.555 m 0.555 m
31
