4.3.1 Wireless room thermostat without display

LED
P100011294 E
1

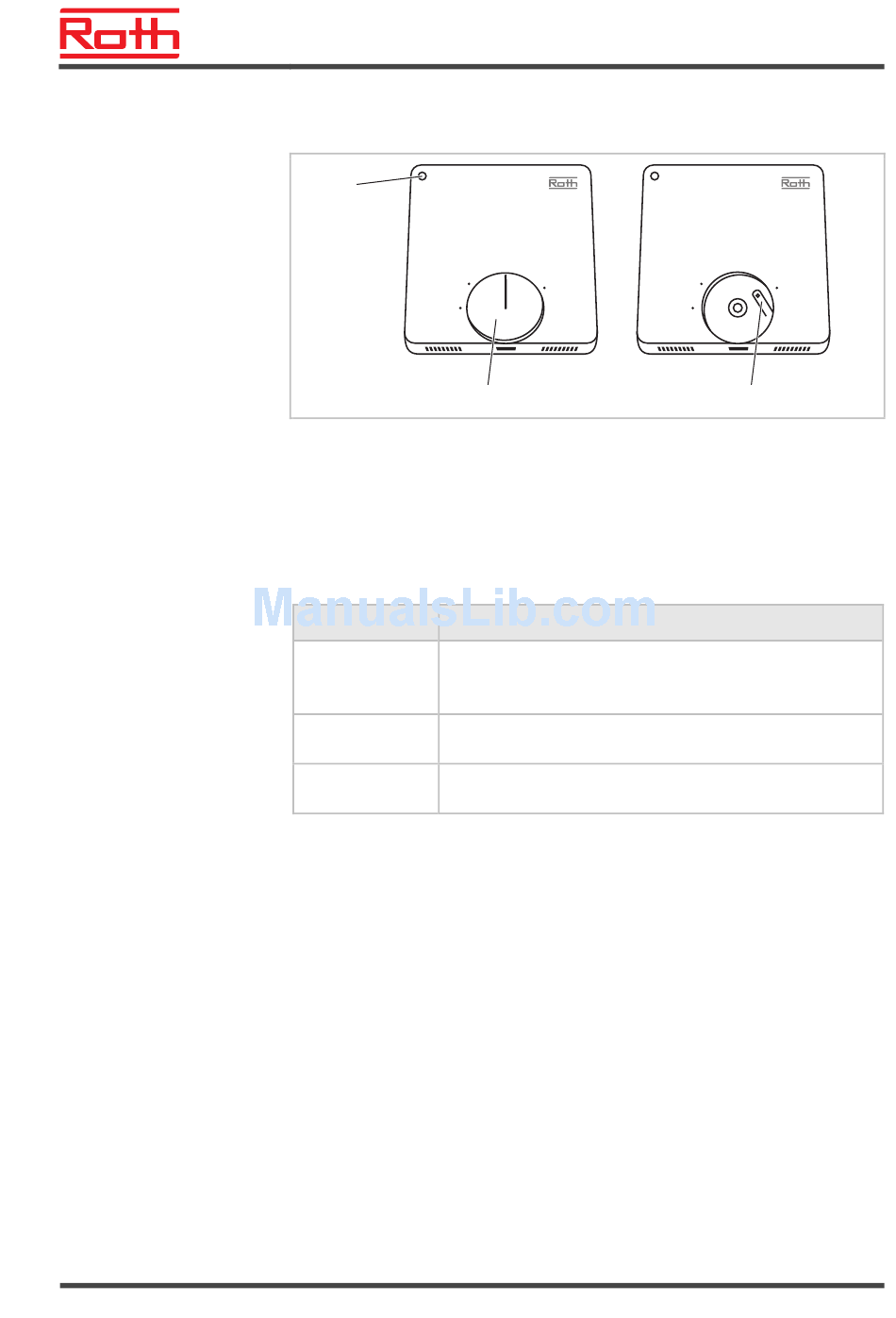

Fig. 9: Overview operating elements wireless room thermostat
1 LED
2 Rotary knob for setting the setpoint
3 Button for addressing to a wireless connection module
LED Description
LED flashes mul- Pairing with the wireless connection module
tiple times
Wireless room thermostat is assigned to a wireless connection
module
LED flashes once Wireless transmission between wireless room thermostat and
for 20 ms wireless connection module
LED Flashes for Battery must be replaced.
20 ms every 3 s
Table 8: LED
