Plant examples and communication
122
1
SENS
CH 2
CH 1

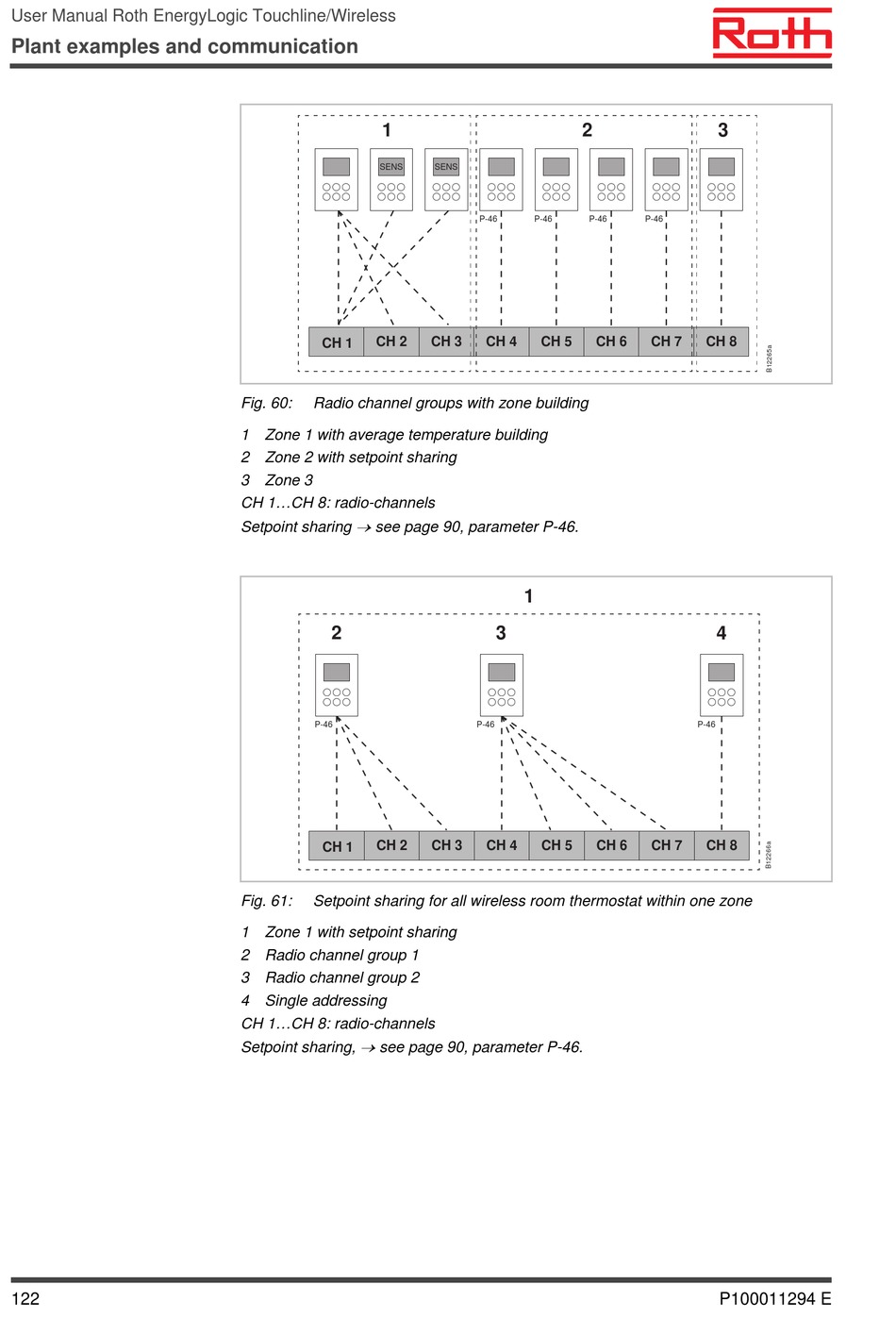

Fig. 60: Radio channel groups with zone building
1 Zone 1 with average temperature building
2 Zone 2 with setpoint sharing
3 Zone 3
CH 1...CH 8: radio-channels

Setpoint sharing see page 90, parameter P-46.
2
P-46
CH 2
CH 1
Fig. 61: Setpoint sharing for all wireless room thermostat within one zone
1 Zone 1 with setpoint sharing
2 Radio channel group 1
3 Radio channel group 2
4 Single addressing
CH 1...CH 8: radio-channels

Setpoint sharing, see page 90, parameter P-46.
2
SENS
P-46 P-46 P-46
CH 3 CH 4 CH 5 CH 6
1
3
P-46
CH 3 CH 4 CH 5 CH 6
3
P-46
CH 7 CH 8
4
P-46
CH 7 CH 8
