Wireless room thermostat with 230 V connection

DANGER
36
Danger to life from electrical voltage!
Contact with live parts is an immediate danger to life.
Damage to the insulation or individual components can be life threatening.
– When insulation is damaged turn off power immediately and arrange for
repair.
– Only a qualified electrician should perform work on the electrical system.
– Prior to any work on the system, shut off the power supply and secure
against restart. Check for the absence of power!
– Moisture and dust should be kept away from energized parts. Moisture
or dust can cause a short circuit.
►
Open the cover of the wireless room thermostat.  See page 32.
►
Install the bottom part of the wireless room thermostat with the 2 included
screws and plugs.
1

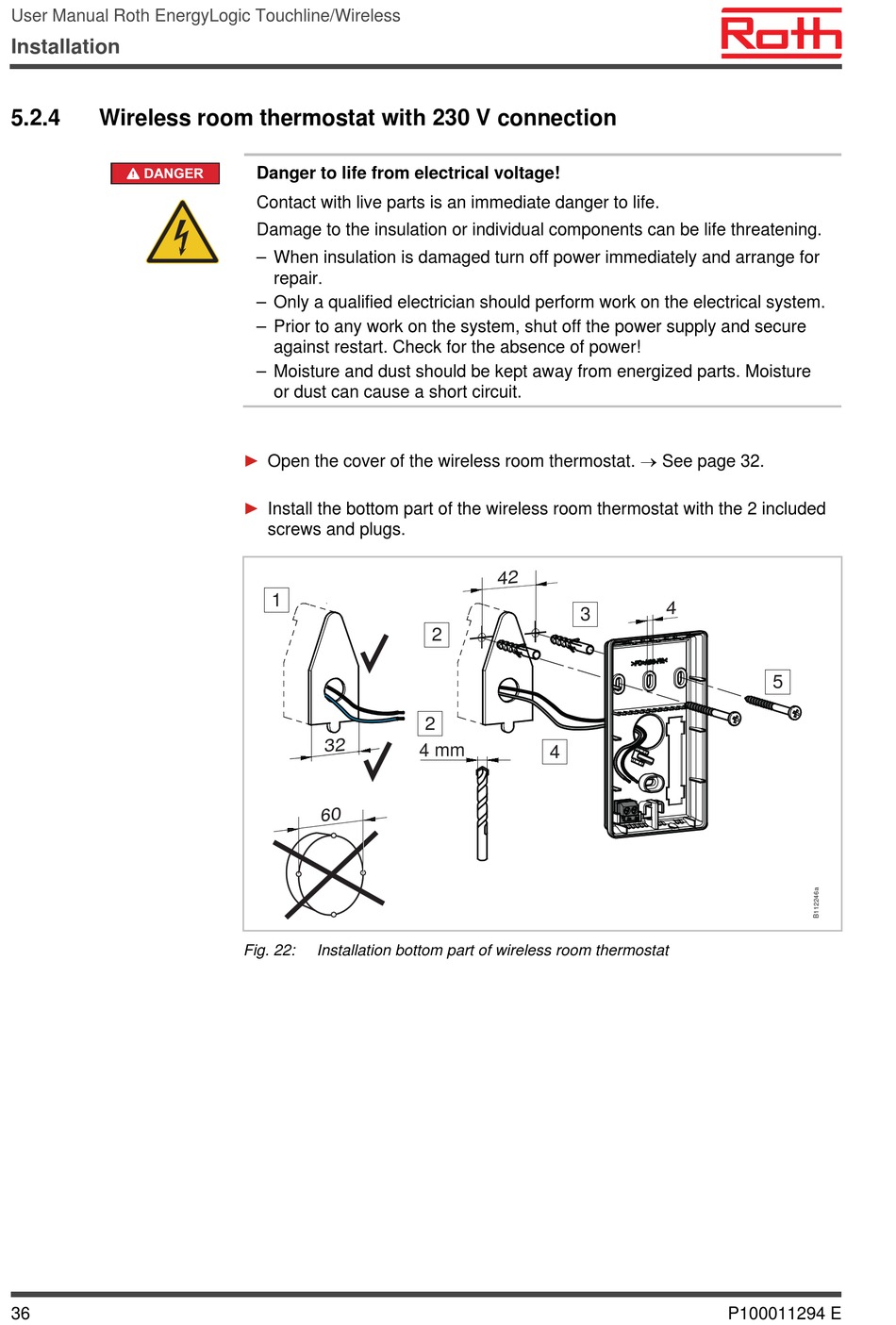

Fig. 22: Installation bottom part of wireless room thermostat
3
2
2
4 mm
4
5
