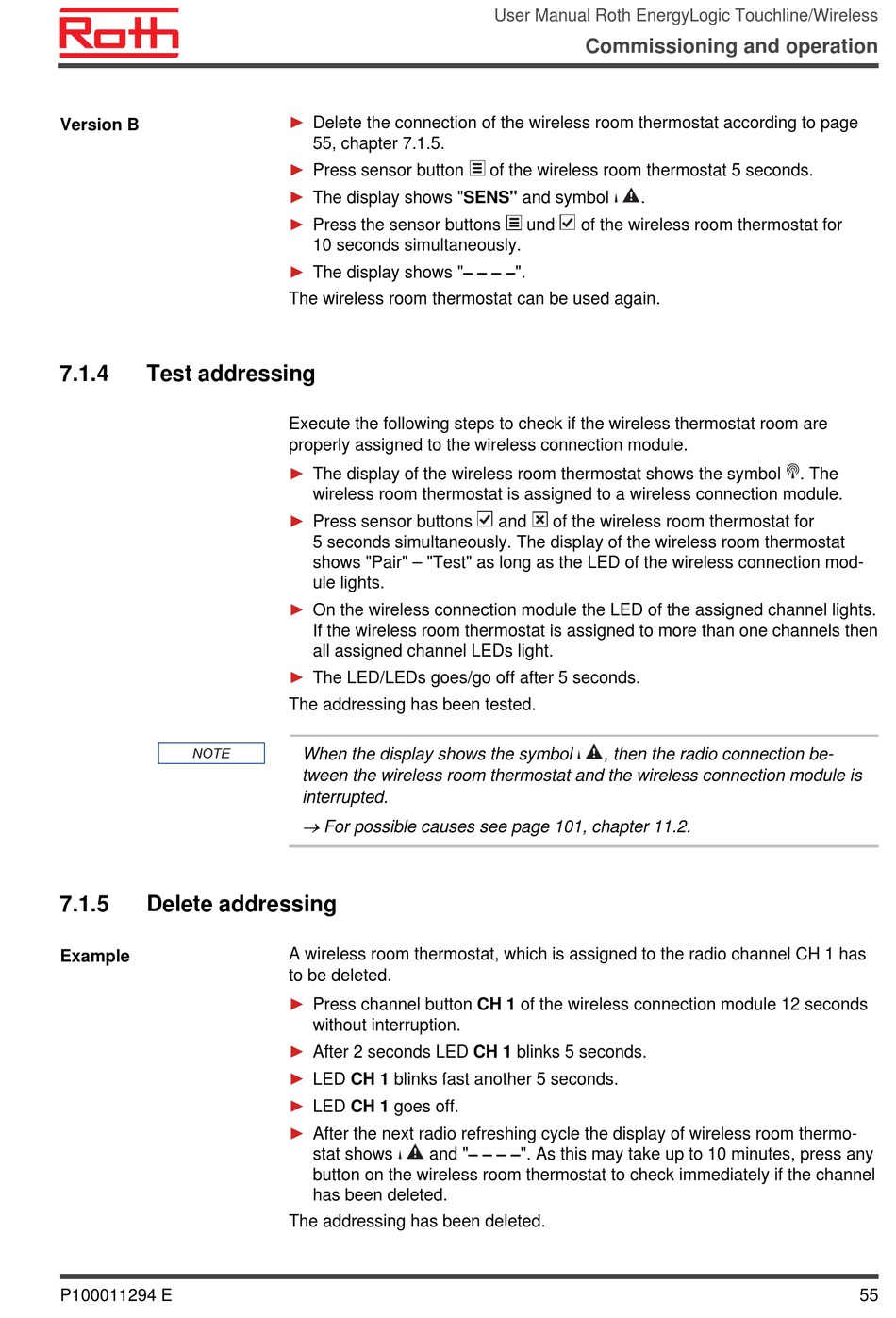

Test addressing

NOTE
7.1.5

Delete addressing

Example
P100011294 E
►
Delete the connection of the wireless room thermostat according to page
55, chapter 7.1.5.
►
Press sensor button
►
The display shows "SENS" and symbol
►
Press the sensor buttons
10 seconds simultaneously.
►
The display shows "– – – –".
The wireless room thermostat can be used again.
Execute the following steps to check if the wireless thermostat room are
properly assigned to the wireless connection module.
►
The display of the wireless room thermostat shows the symbol
wireless room thermostat is assigned to a wireless connection module.
►
Press sensor buttons
5 seconds simultaneously. The display of the wireless room thermostat
shows "Pair" – "Test" as long as the LED of the wireless connection mod-
ule lights.
►
On the wireless connection module the LED of the assigned channel lights.
If the wireless room thermostat is assigned to more than one channels then
all assigned channel LEDs light.
►
The LED/LEDs goes/go off after 5 seconds.
The addressing has been tested.
When the display shows the symbol
tween the wireless room thermostat and the wireless connection module is
interrupted.

For possible causes see page 101, chapter 11.2.
A wireless room thermostat, which is assigned to the radio channel CH 1 has
to be deleted.
►
Press channel button CH 1 of the wireless connection module 12 seconds
without interruption.
►
After 2 seconds LED CH 1 blinks 5 seconds.
►
LED CH 1 blinks fast another 5 seconds.
►
LED CH 1 goes off.
►
After the next radio refreshing cycle the display of wireless room thermo-
stat shows and "– – – –". As this may take up to 10 minutes, press any
button on the wireless room thermostat to check immediately if the channel
has been deleted.
The addressing has been deleted.
