User Manual Roth EnergyLogic Touchline/Wireless
Electrical connections

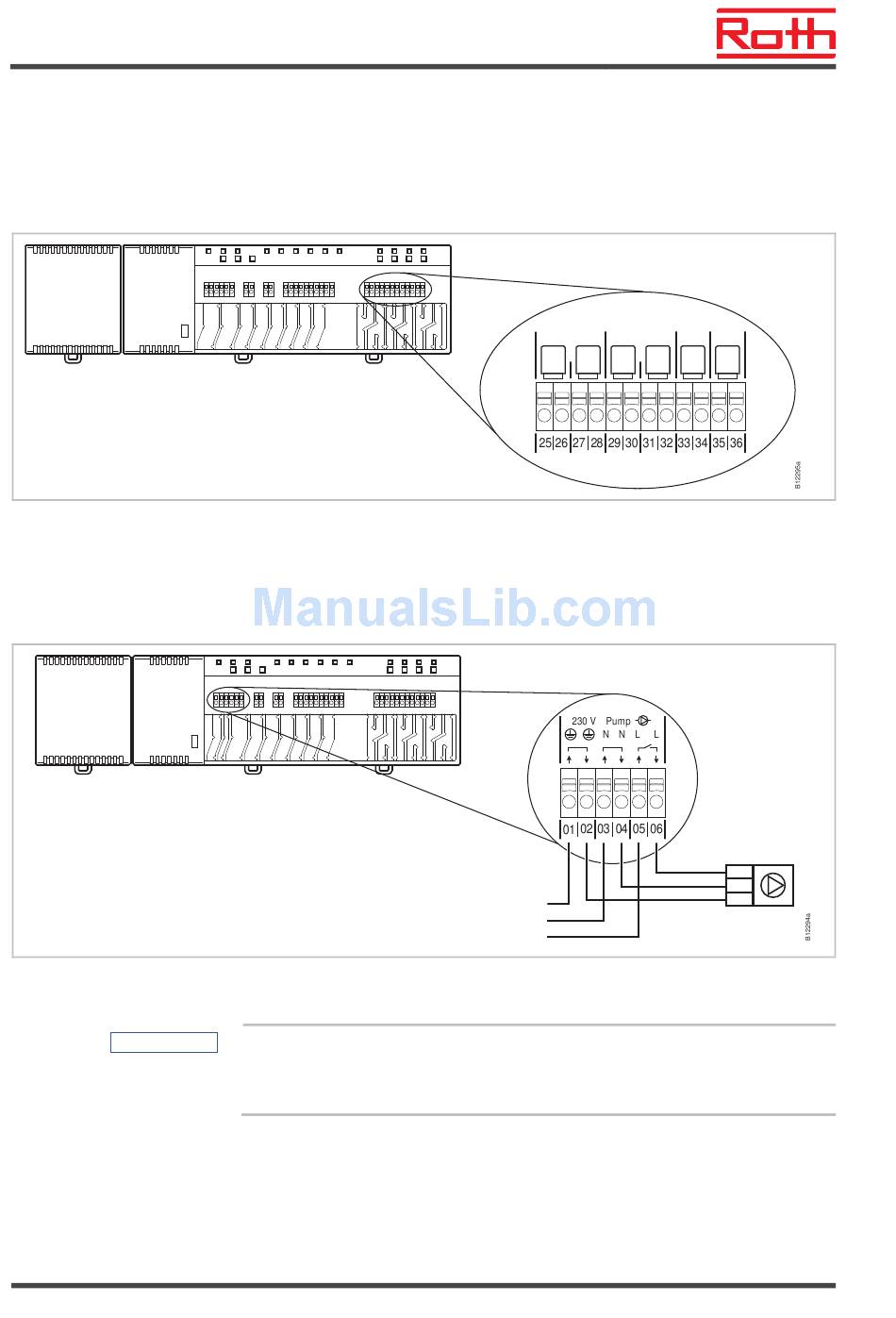

Connect thermal actuators
Fig. 31: Connect thermal actuators
Connect 230 V pump
Fig. 32: Connect pump, 230 V
NOTE
44
►
Connect the thermal actuators to the following terminals:
– 4-channel version: terminals 25 to 36 for max. 6 actuators
– 8-channel version: terminals 25 to 56 for max. 12 actuators
– 12-channel version: terminals 25 to 76 for max. 18 actuators
►
Connect the pump to terminal 04, 05 and 06.
Contact rating: 230 V, 2.5 (1) A
To save energy and on demand, the pump command is released only after
2 minutes in any setting.
CH 1 CH 2 CH 3
24V 24V 24V 24V 24V
PE
N
L
CH 4
24V
L
N
PE
P100011294 E
