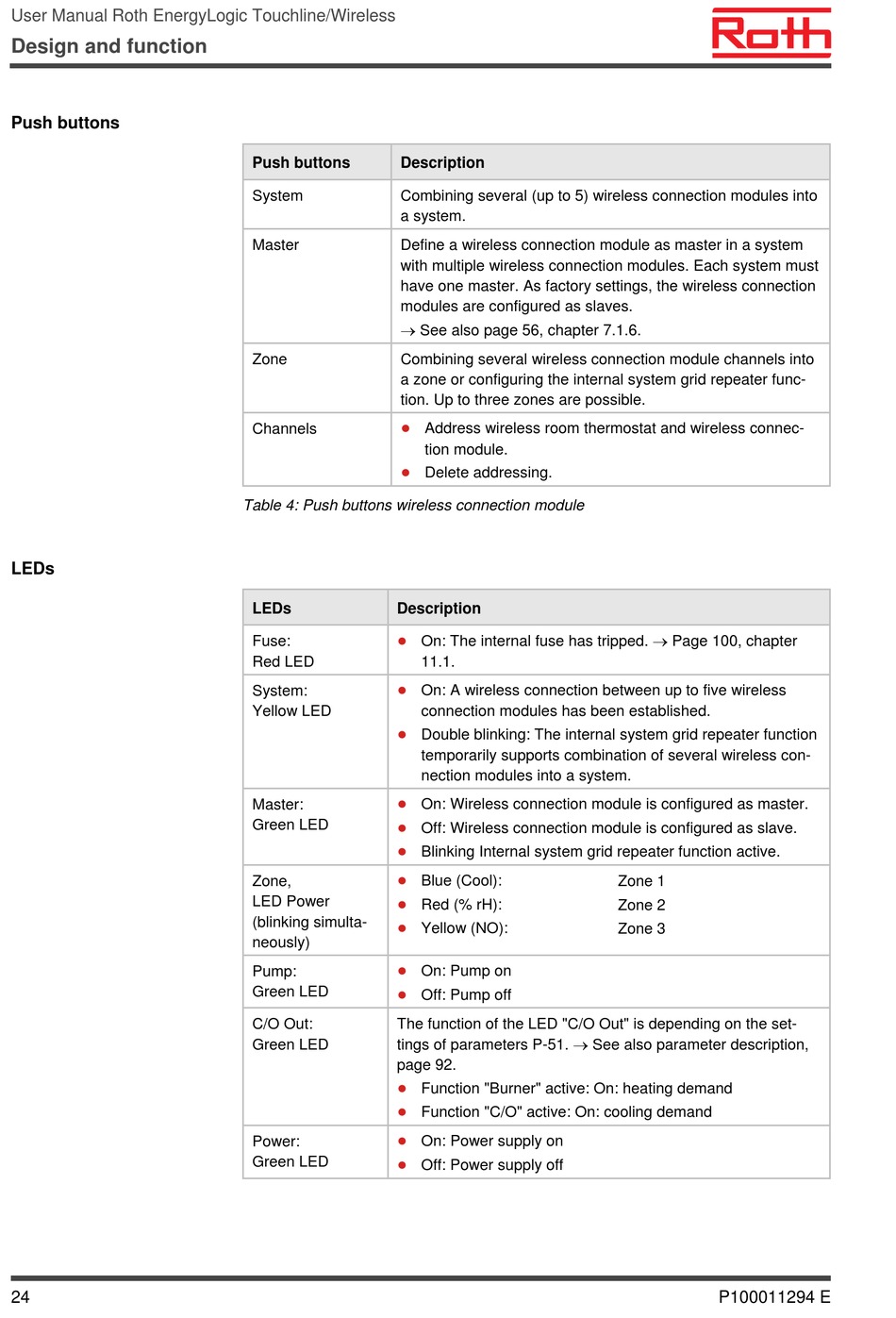

Roth EnergyLogic Touchline/wireless User Manual page 24

User Manual Roth EnergyLogic Touchline/Wireless
Design and function
Push buttons
LEDs
24
Push buttons Description
System Combining several (up to 5) wireless connection modules into
a system.
Master Define a wireless connection module as master in a system
with multiple wireless connection modules. Each system must
have one master. As factory settings, the wireless connection
modules are configured as slaves.
 See also page 56, chapter 7.1.6.
Zone Combining several wireless connection module channels into
a zone or configuring the internal system grid repeater func-
tion. Up to three zones are possible.
●
Channels
●
Table 4: Push buttons wireless connection module
LEDs Description
●
Fuse:
Red LED
●
System:
Yellow LED
●
●
Master:
●
Green LED
●
●
Zone,
●
LED Power
(blinking simulta-
●
neously)
●
Pump:
●
Green LED
C/O Out: The function of the LED "C/O Out" is depending on the set-
tings of parameters P-51.  See also parameter description,
Green LED
page 92.
●
●
●
Power:
●
Green LED
Address wireless room thermostat and wireless connec-
tion module.
Delete addressing.
On: The internal fuse has tripped.  Page 100, chapter
11.1.
On: A wireless connection between up to five wireless
connection modules has been established.
Double blinking: The internal system grid repeater function
temporarily supports combination of several wireless con-
nection modules into a system.
On: Wireless connection module is configured as master.
Off: Wireless connection module is configured as slave.
Blinking Internal system grid repeater function active.
Blue (Cool):
Red (% rH):
Yellow (NO):
On: Pump on
Off: Pump off
Function "Burner" active: On: heating demand
Function "C/O" active: On: cooling demand
On: Power supply on
Off: Power supply off
Zone 1
Zone 2
Zone 3
P100011294 E
