User Manual Roth EnergyLogic Touchline/Wireless

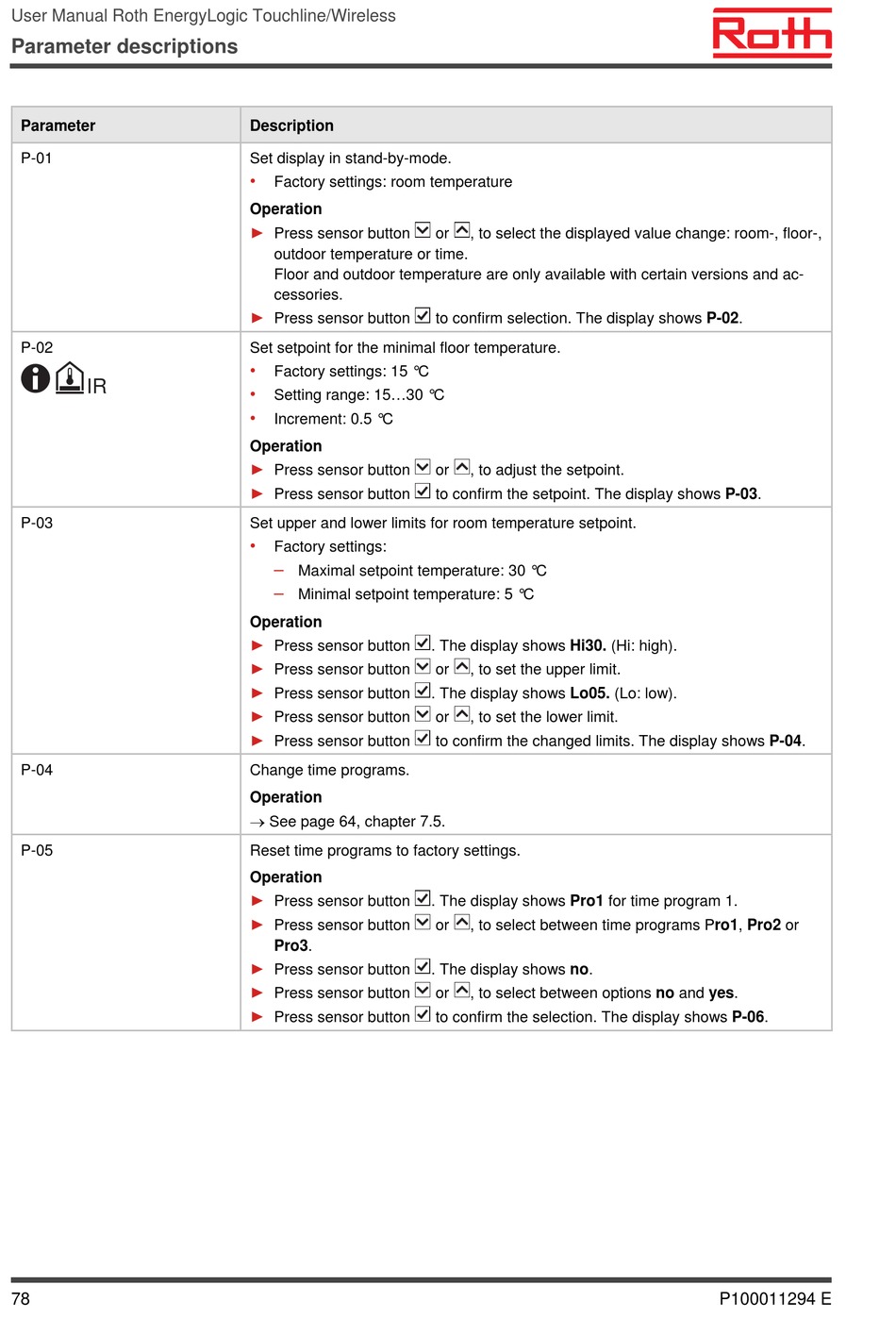

Parameter descriptions
Parameter
P-01
P-02
IR
P-03
P-04
P-05
78
Description
Set display in stand-by-mode.
•
Factory settings: room temperature
Operation
►
Press sensor button
outdoor temperature or time.
Floor and outdoor temperature are only available with certain versions and ac-
cessories.
►
Press sensor button
Set setpoint for the minimal floor temperature.
•
Factory settings: 15 °C
•
Setting range: 15...30 °C
•
Increment: 0.5 °C
Operation
►
Press sensor button
►
Press sensor button
Set upper and lower limits for room temperature setpoint.
•
Factory settings:
–
Maximal setpoint temperature: 30 °C
–
Minimal setpoint temperature: 5 °C
Operation
►
Press sensor button
►
Press sensor button
►
Press sensor button
►
Press sensor button
►
Press sensor button
Change time programs.
Operation
 See page 64, chapter 7.5.
Reset time programs to factory settings.
Operation
►
Press sensor button
►
Press sensor button
Pro3.
►
Press sensor button
►
Press sensor button
►
Press sensor button
or , to select the displayed value change: room-, floor-,
to confirm selection. The display shows P-02.
or , to adjust the setpoint.
to confirm the setpoint. The display shows P-03.
. The display shows Hi30. (Hi: high).
or , to set the upper limit.
. The display shows Lo05. (Lo: low).
or , to set the lower limit.
to confirm the changed limits. The display shows P-04.
. The display shows Pro1 for time program 1.
or , to select between time programs Pro1, Pro2 or
. The display shows no.
or , to select between options no and yes.
to confirm the selection. The display shows P-06.
