16 Plant examples and communication

16.1 Plant examples with one wireless connection module

P100011294 E
1
CH 2
CH 1

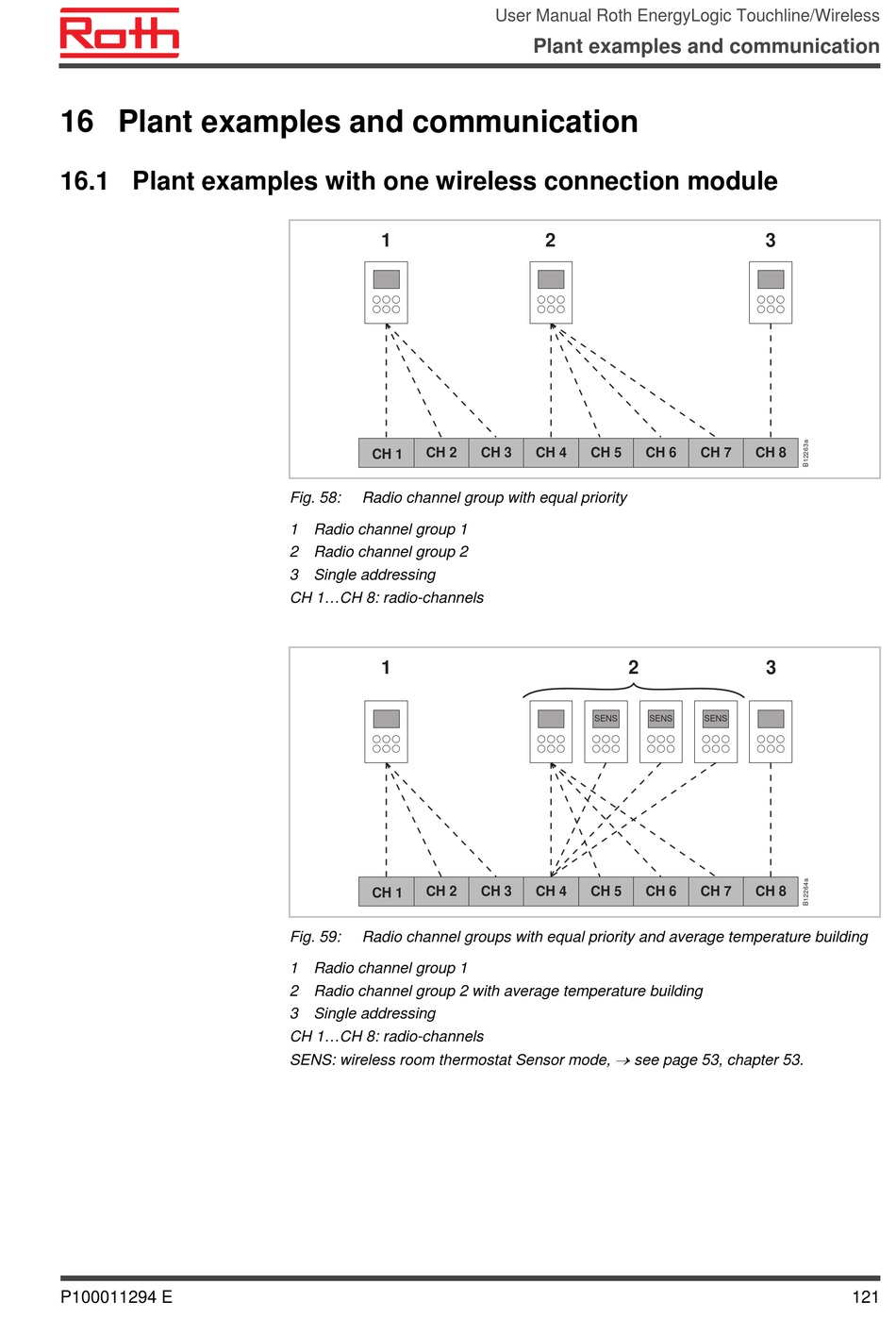

Fig. 58: Radio channel group with equal priority
1 Radio channel group 1
2 Radio channel group 2
3 Single addressing
CH 1...CH 8: radio-channels
1
CH 2
CH 1
Fig. 59: Radio channel groups with equal priority and average temperature building
1 Radio channel group 1
2 Radio channel group 2 with average temperature building
3 Single addressing
CH 1...CH 8: radio-channels
SENS: wireless room thermostat Sensor mode,
User Manual Roth EnergyLogic Touchline/Wireless
Plant examples and communication
2
CH 3 CH 4 CH 5 CH 6
2
SENS
CH 3 CH 4 CH 5 CH 6

see page 53, chapter 53.
3
CH 7 CH 8
3
SENS SENS
CH 7 CH 8
121
