Installation
5.2.2

Wireless room thermostat with display

Open wireless room ther-
mostat
ATTENTION
32
►
Hold the cover of the wireless room thermostat with one hand.
►
Open the cover by applying a 5 mm Phillips-tip screwdriver in the hole.
►
Remove the cover.
Damage due to improper opening!
– Please hold the cover tight while opening the wireless room thermostat.
– Use the correct hole for opening the wireless room thermostat with IR
sensor as shown below.
1
5 mm
3
2

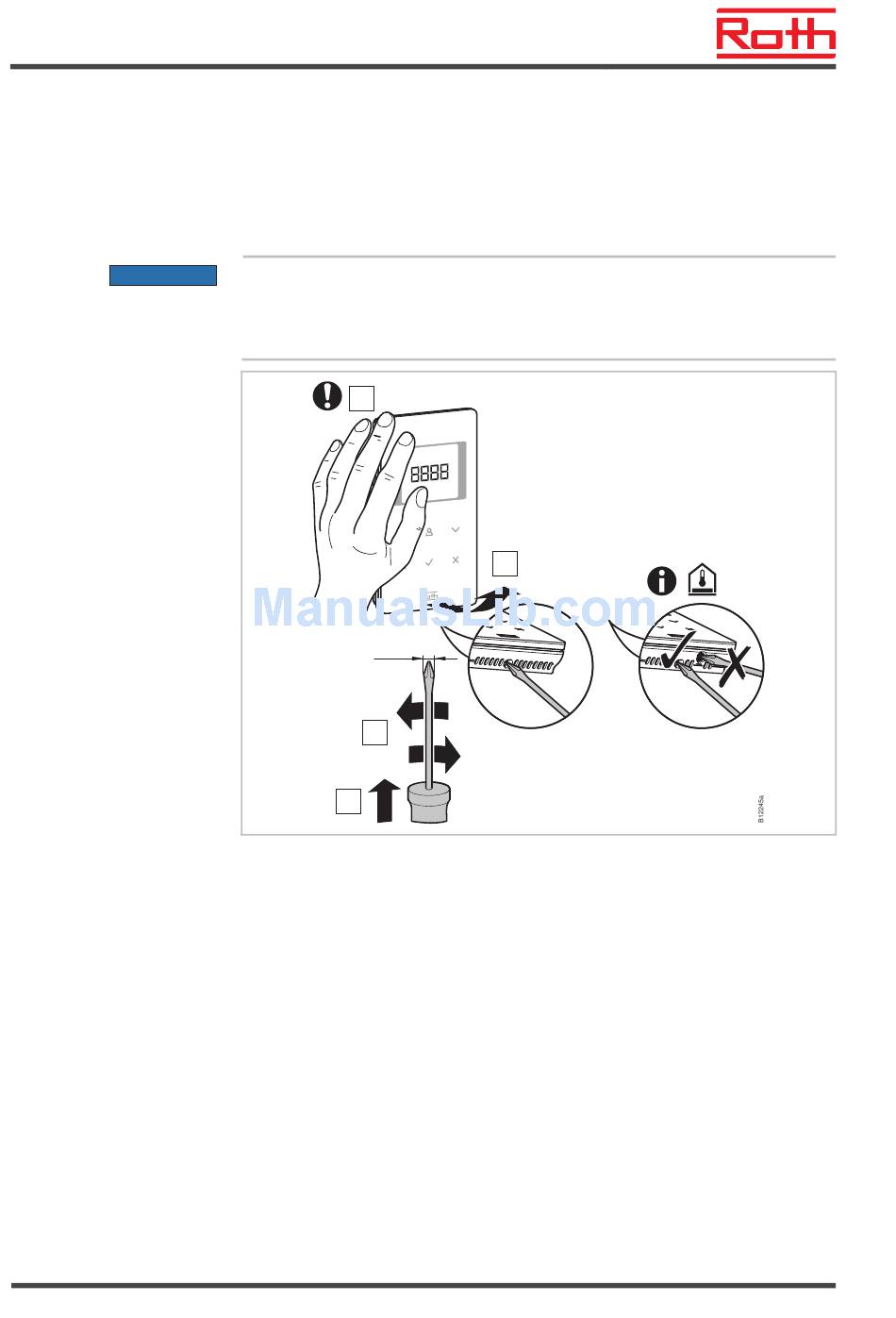

Fig. 14: Open the wireless room thermostat
4
IR
