13.2 External Repeater

Function
NOTE
Push button and LEDs
NOTE
106
If a radio connection between the wireless connection module and wireless
room thermostat or between the wireless connection modules cannot be
achieved, you may use an external repeater. This leads to a larger range
between the wireless connection modules.
You can use at most one repeater per wireless room thermostat network.
 For the room thermostat network, see chapter 13.2.2.  For system net-
works, see chapters 7.1.7 and 13.2.4.
The distance between the external repeater and a wireless connection
module must not exceed 30 m.

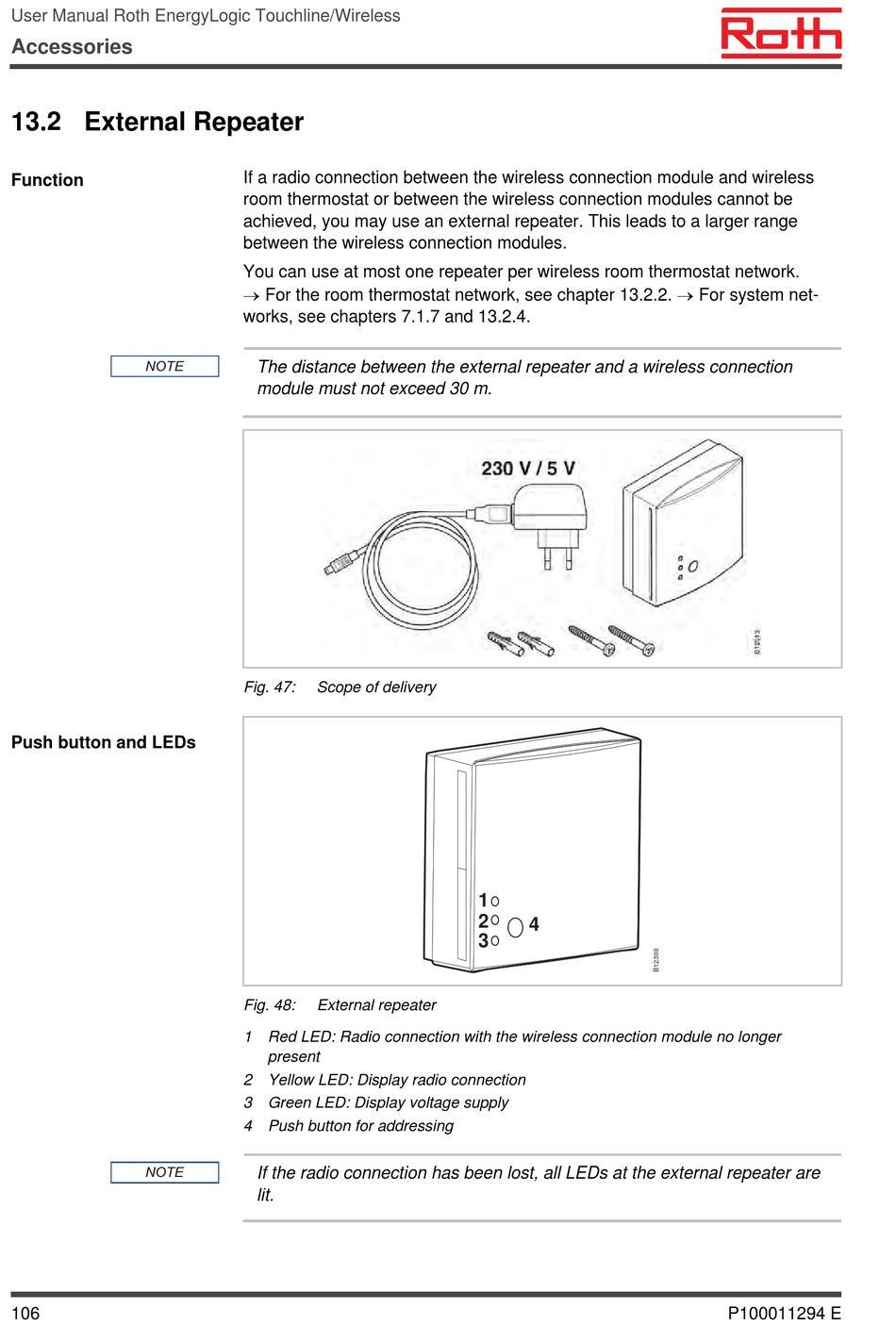

Fig. 47: Scope of delivery
Fig. 48: External repeater
1 Red LED: Radio connection with the wireless connection module no longer
present
2 Yellow LED: Display radio connection
3 Green LED: Display voltage supply
4 Push button for addressing
If the radio connection has been lost, all LEDs at the external repeater are
lit.
1
2
4
3
