Design and function

4 Design and function
4.1

Design

4.1.1

Wireless connection module with LAN

1

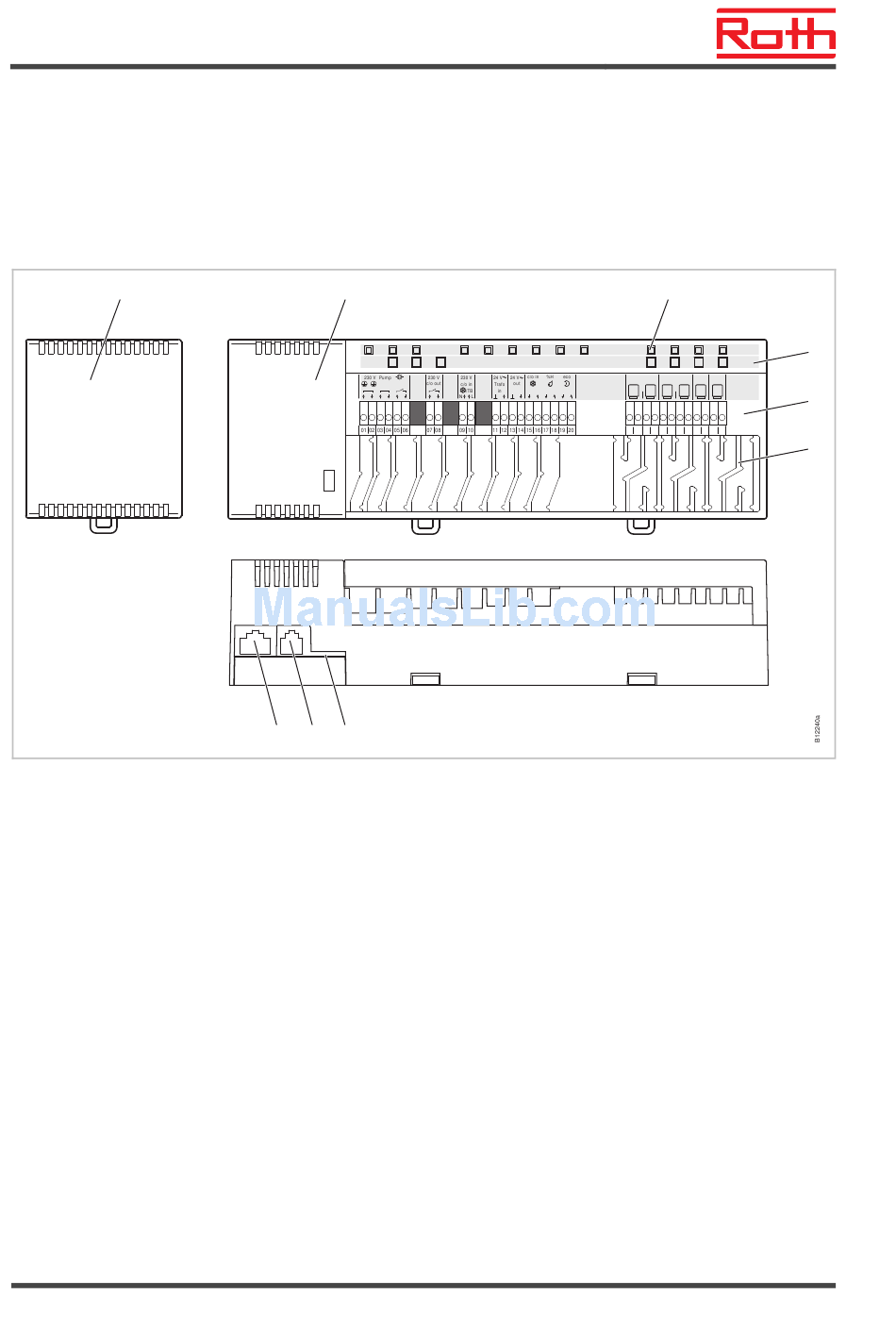

Fig. 2: Design wireless connection module with LAN, 4-channel version shown
1 Transformer 230 / 24 V AC
2 Wireless connection module
3 LEDs
4 Push buttons
5 Terminals
18
2
N N L L
9 8 7
6 Strain reliefs
7 micro SD-card for software update
8 RJ-12 for external active antenna
9 RJ-45 for LAN
3
CH 1 CH 2 CH 3 CH 4
24V 24V 24V 24V 24V 24V
25 26 27 28 29 30 31 32 33 34 35 36
