Roth EnergyLogic Touchline/wireless User Manual page 39

Fine-wire conductor
Single-wire or multi-wire
conductors
P100011294 E
Fine-wire conductors must only be used with wire-end ferrules.
L

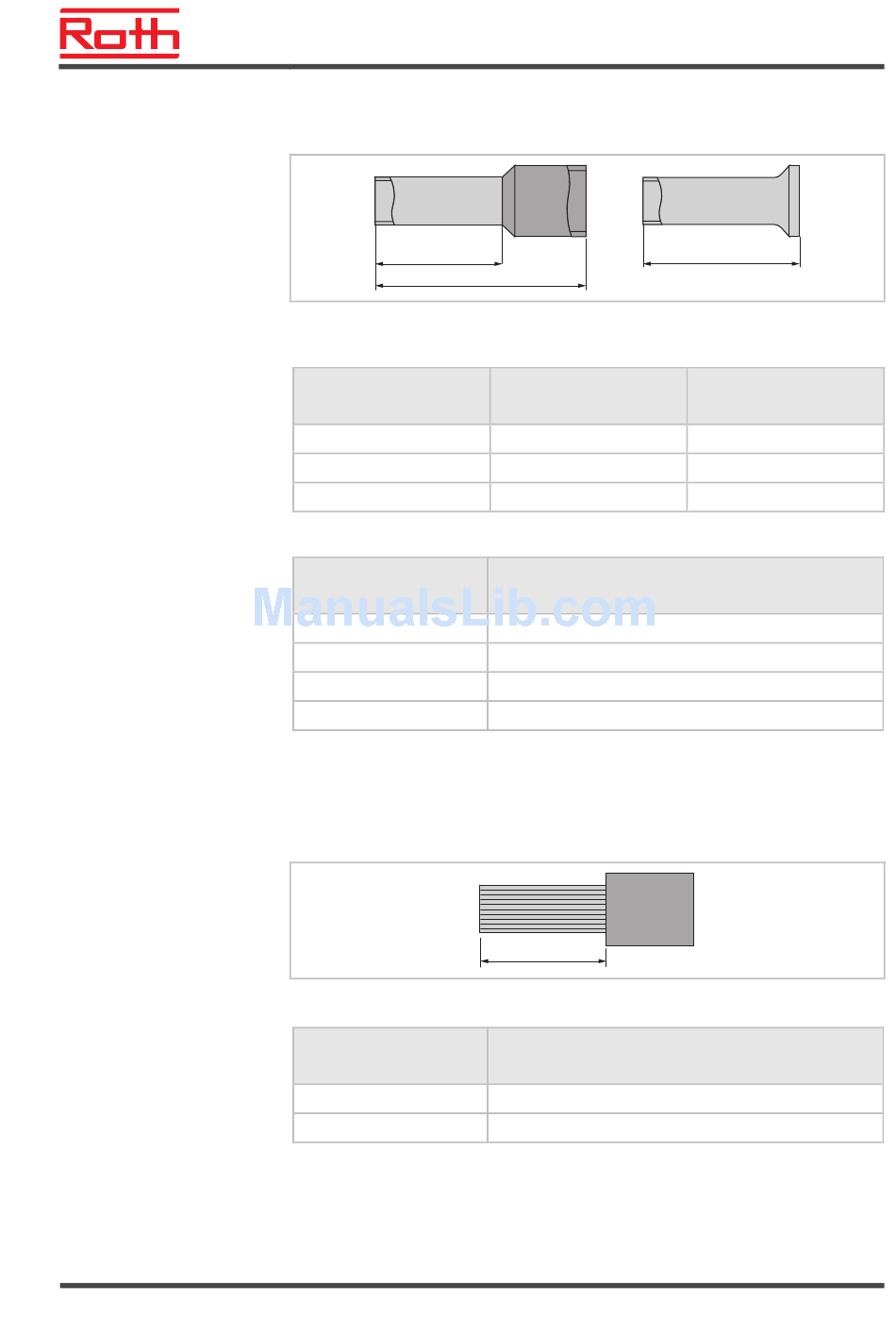

Fig. 24: Left: Wire-end ferrules with plastic collar
right: Wire-end ferrules without plastic collar
Strand cross-section
[mm²]
0.25 to 0.34
0.5
0.75
Table 9: Dimensions for fine-wire conductors, wire-end ferrules with plastic collar
Strand cross-section
[mm²]
0.5
0.75
1
1.5
Table 10: Dimensions for fine-wire conductors, wire-end ferrules without plastic collar
Single-wire or multi-wire conductors must not be used without wire-end fer-
rules.
Fig. 25: Single-wire or multi-wire conductors
Strand cross-section
[mm²]
0.2 to 0.75
0.75 to 1.5
Table 11: Dimensions for single-wire or multi-wire conductors
User Manual Roth EnergyLogic Touchline/Wireless
L1
L [mm]
8
8
8
L [mm]
8
8
8
8
L
L [mm]
8
8
Electrical connections
L
L1 [mm]
10 to 14
12 to 14
12 to 14
39
