User Manual Roth EnergyLogic Touchline/Wireless

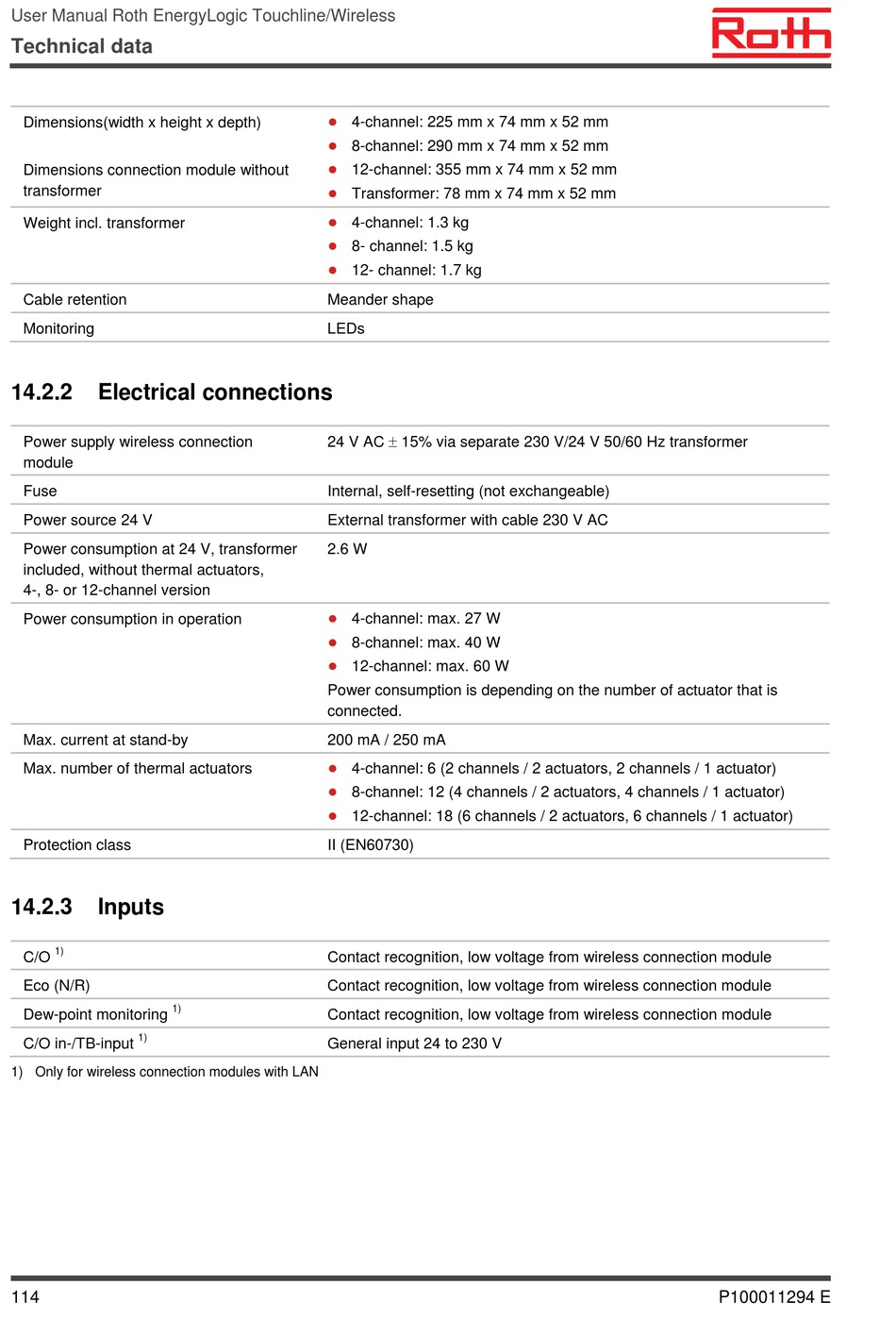

Technical data
Dimensions(width x height x depth)
Dimensions connection module without
transformer
Weight incl. transformer
Cable retention
Monitoring
14.2.2

Electrical connections

Power supply wireless connection
module
Fuse
Power source 24 V
Power consumption at 24 V, transformer
included, without thermal actuators,
4-, 8- or 12-channel version
Power consumption in operation
Max. current at stand-by
Max. number of thermal actuators
Protection class
14.2.3

Inputs

1)
C/O
Eco (N/R)
1)
Dew-point monitoring
1)
C/O in-/TB-input
1) Only for wireless connection modules with LAN
114
●
4-channel: 225 mm x 74 mm x 52 mm
●
8-channel: 290 mm x 74 mm x 52 mm
●
12-channel: 355 mm x 74 mm x 52 mm
●
Transformer: 78 mm x 74 mm x 52 mm
●
4-channel: 1.3 kg
●
8- channel: 1.5 kg
●
12- channel: 1.7 kg
Meander shape
LEDs
24 V AC  15% via separate 230 V/24 V 50/60 Hz transformer
Internal, self-resetting (not exchangeable)
External transformer with cable 230 V AC
2.6 W
●
4-channel: max. 27 W
●
8-channel: max. 40 W
●
12-channel: max. 60 W
Power consumption is depending on the number of actuator that is
connected.
200 mA / 250 mA
●
4-channel: 6 (2 channels / 2 actuators, 2 channels / 1 actuator)
●
8-channel: 12 (4 channels / 2 actuators, 4 channels / 1 actuator)
●
12-channel: 18 (6 channels / 2 actuators, 6 channels / 1 actuator)
II (EN60730)
Contact recognition, low voltage from wireless connection module
Contact recognition, low voltage from wireless connection module
Contact recognition, low voltage from wireless connection module
General input 24 to 230 V
P100011294 E
