Connect transformer
ATTENTION
NOTE
P100011294 E
►
Connect the transformer to the 24 V input terminals 11 and 12.
Malfunctioning due to improper connection!
Improper connection may cause malfunction of the system.
– Each wireless connection module must have a separate transformer.

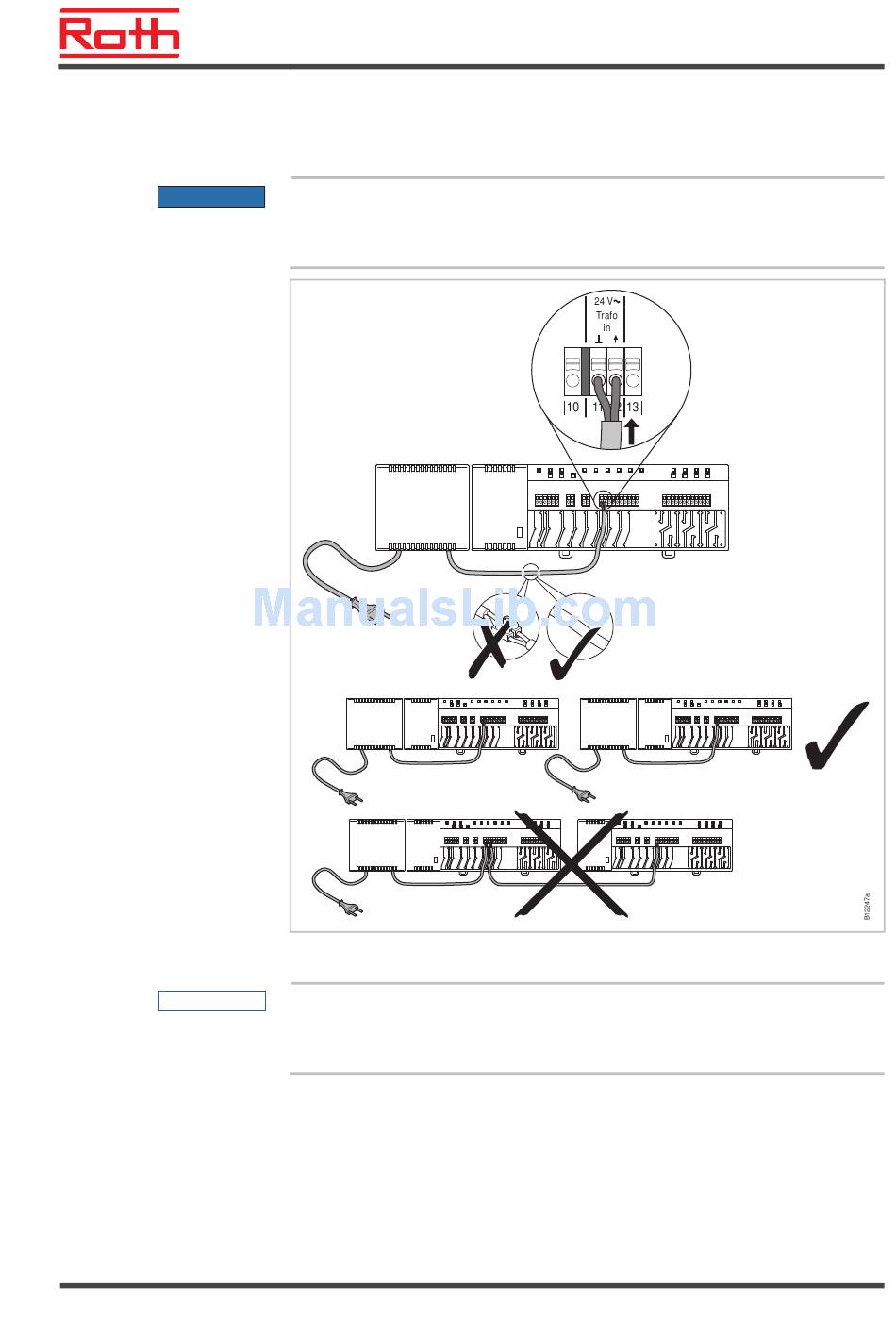

Abb. 30: Connect transformer
The 24 V output is used only as support voltage for a dew-point sensor or
as a voltage signal to the TB input (temperature limit).
