Change time program

NOTE
a
00:00 02:00 04:00
b
00:00 02:00 04:00

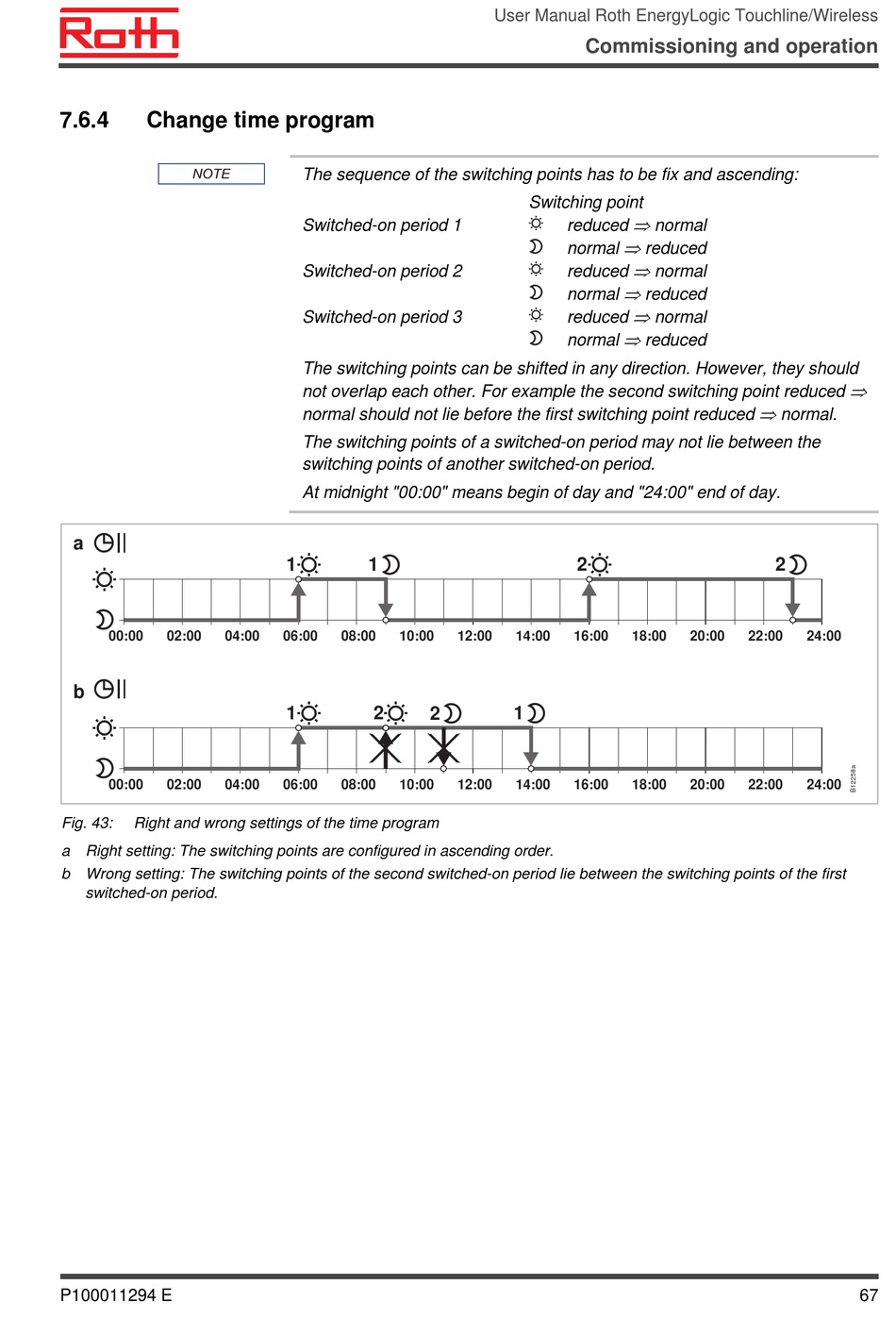

Fig. 43: Right and wrong settings of the time program
a Right setting: The switching points are configured in ascending order.
b Wrong setting: The switching points of the second switched-on period lie between the switching points of the first
switched-on period.
P100011294 E
The sequence of the switching points has to be fix and ascending:
Switched-on period 1
Switched-on period 2
Switched-on period 3
The switching points can be shifted in any direction. However, they should
not overlap each other. For example the second switching point reduced
normal should not lie before the first switching point reduced
The switching points of a switched-on period may not lie between the
switching points of another switched-on period.
At midnight "00:00" means begin of day and "24:00" end of day.
1 1
06:00 08:00 10:00
1 2 2
06:00 08:00 10:00
