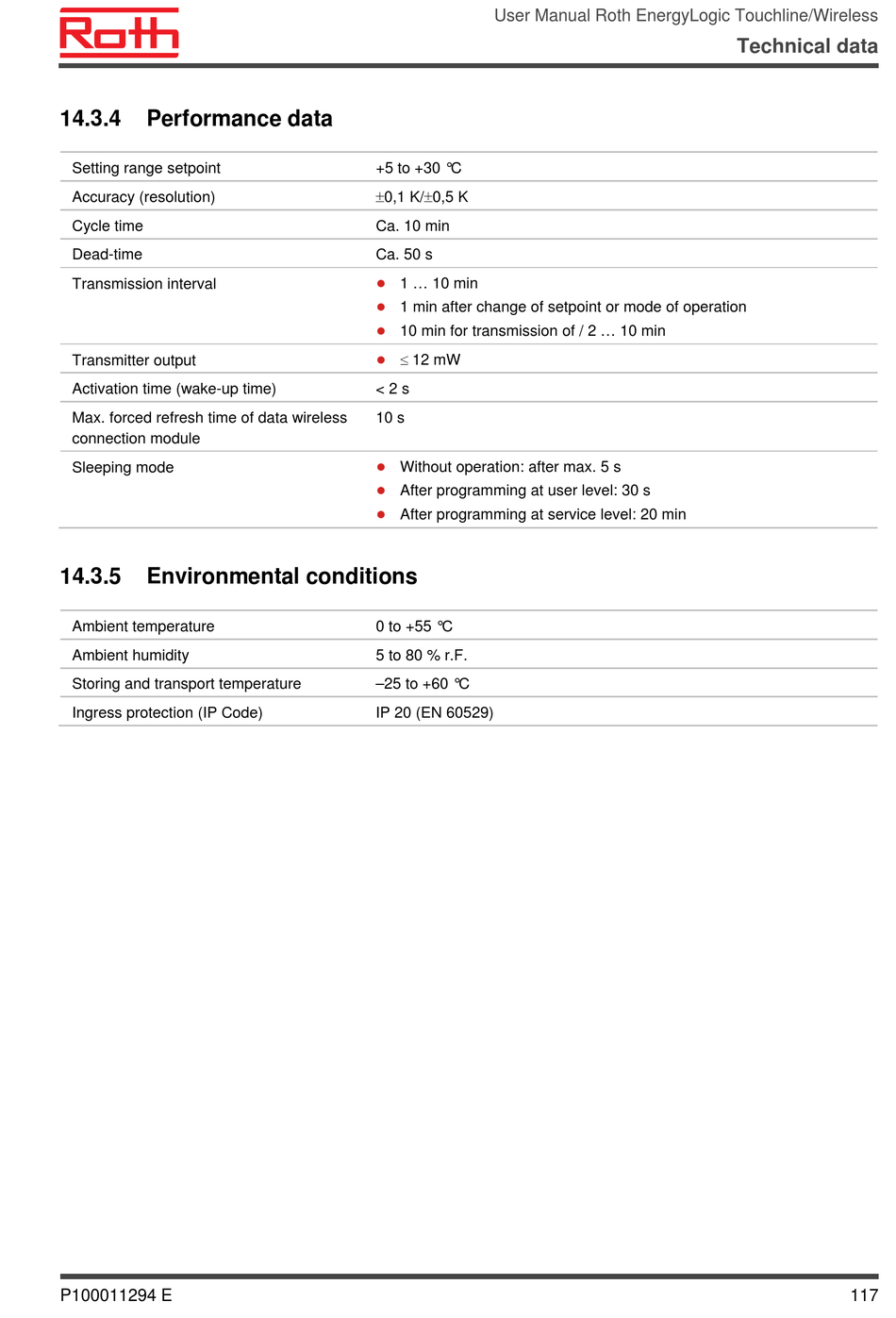

14.3.4

Performance data

Setting range setpoint
Accuracy (resolution)
Cycle time
Dead-time
Transmission interval
Transmitter output
Activation time (wake-up time)
Max. forced refresh time of data wireless
connection module
Sleeping mode
14.3.5

Environmental conditions

Ambient temperature
Ambient humidity
Storing and transport temperature
Ingress protection (IP Code)
P100011294 E
User Manual Roth EnergyLogic Touchline/Wireless
+5 to +30 °C
0,1 K/0,5 K
Ca. 10 min
Ca. 50 s
●
1 ... 10 min
●
1 min after change of setpoint or mode of operation
●
10 min for transmission of / 2 ... 10 min
●
12 mW
< 2 s
10 s
●
Without operation: after max. 5 s
●
After programming at user level: 30 s
●
After programming at service level: 20 min
0 to +55 °C
5 to 80 % r.F.
–25 to +60 °C
IP 20 (EN 60529)
Technical data
117
