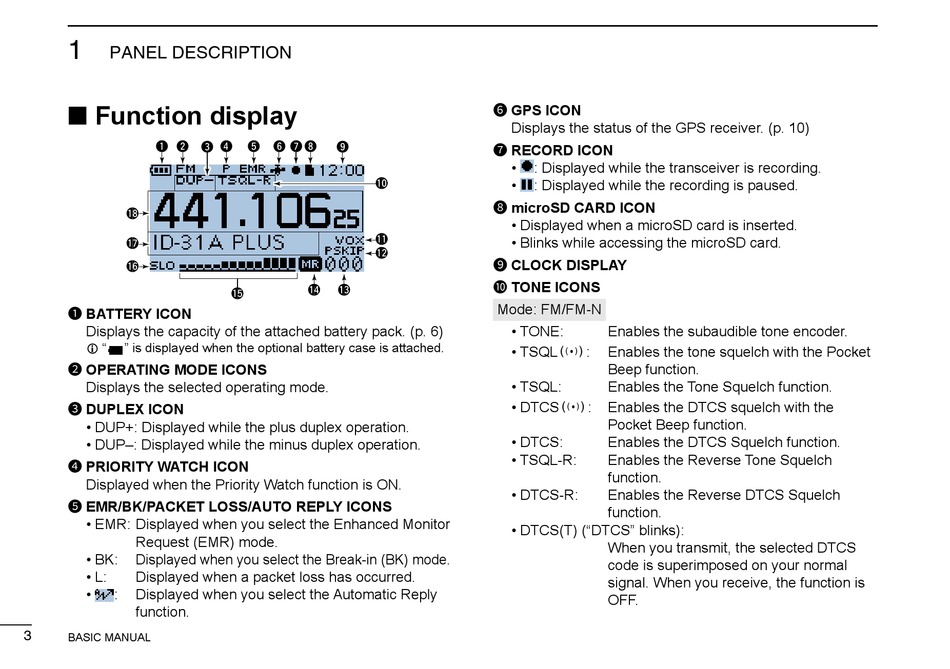

PANEL DESCRIPTION
■ Function display
q w
e
! 8
! 7
! 6
1 BATTERY ICON
Displays the capacity of the attached battery pack. (p. 6)
L "
" is displayed when the optional battery case is attached.
2 OPERATING MODE ICONS
Displays the selected operating mode.
3 DUPLEX ICON
• DUP+: Displayed while the plus duplex operation.
• DUP–: Displayed while the minus duplex operation.
4 PRIORITY WATCH ICON
Displayed when the Priority Watch function is ON.
5 EMR/BK/PACKET LOSS/AUTO REPLY ICONS
• EMR: Displayed when you select the Enhanced Monitor
Request (EMR) mode.
• BK:
Displayed when you select the Break-in (BK) mode.
• L:
Displayed when a packet loss has occurred.
•
:
Displayed when you select the Automatic Reply
function.
3
BASIC MANUAL
r
t
y u i
o
! 0
! 1
! 2
! 4
! 3
! 5
6 GPS ICON
Displays the status of the GPS receiver. (p. 10)
7 RECORD ICON
•
: Displayed while the transceiver is recording.
•
: Displayed while the recording is paused.
8 microSD CARD ICON
• Displayed when a microSD card is inserted.
• Blinks while accessing the microSD card.
9 CLOCK DISPLAY
10 TONE ICONS
Mode: FM/FM-N
• TONE:
Enables the subaudible tone encoder.
• TSQL
:
Enables the tone squelch with the Pocket
S
Beep function.
• TSQL:
Enables the Tone Squelch function.
• DTCS
:
Enables the DTCS squelch with the
S
Pocket Beep function.
• DTCS:
Enables the DTCS Squelch function.
• TSQL-R:
Enables the Reverse Tone Squelch
function.
• DTCS-R:
Enables the Reverse DTCS Squelch
function.
• DTCS(T) ("DTCS" blinks):
When you transmit, the selected DTCS
code is superimposed on your normal
signal. When you receive, the function is
OFF.
