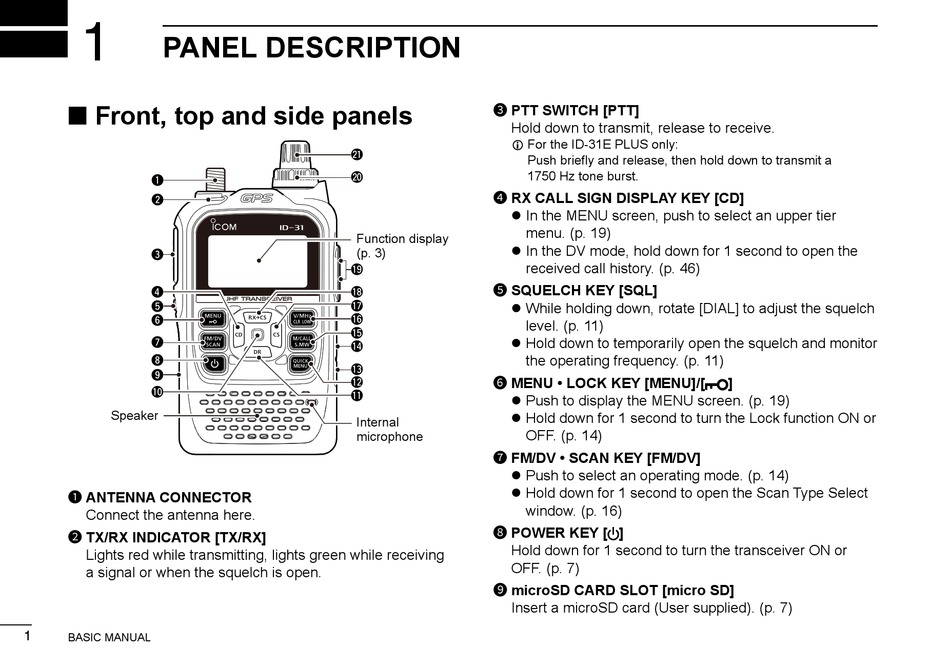

PANEL DESCRIPTION
■ Front, top and side panels
q
w
e
r
t
y
u
i
o
!0
Speaker
1 ANTENNA CONNECTOR
Connect the antenna here.
2 TX/RX INDICATOR [TX/RX]
Lights red while transmitting, lights green while receiving
a signal or when the squelch is open.
1
BASIC MANUAL
3 PTT SWITCH [PTT]
Hold down to transmit, release to receive.
L For the ID-31E PLUS only:
@1
Push briefl y and release, then hold down to transmit a
1750 Hz tone burst.
@0
4 RX CALL SIGN DISPLAY KEY [CD]
z In the MENU screen, push to select an upper tier
menu. (p. 19)
Function display
z In the DV mode, hold down for 1 second to open the
(p. 3)
received call history. (p. 46)
!9
5 SQUELCH KEY [SQL]
!8
z While holding down, rotate [DIAL] to adjust the squelch
!7
!6
level. (p. 11)
!5
z Hold down to temporarily open the squelch and monitor
!4
the operating frequency. (p. 11)
!3
6 MENU • LOCK KEY [MENU]/[
!2
!1
z Push to display the MENU screen. (p. 19)
z Hold down for 1 second to turn the Lock function ON or
Internal
OFF. (p. 14)
microphone
7 FM/DV • SCAN KEY [FM/DV]
z Push to select an operating mode. (p. 14)
z Hold down for 1 second to open the Scan Type Select
window. (p. 16)
8 POWER KEY [ ]
Hold down for 1 second to turn the transceiver ON or
OFF. (p. 7)
9 microSD CARD SLOT [micro SD]
Insert a microSD card (User supplied). (p. 7)
]
