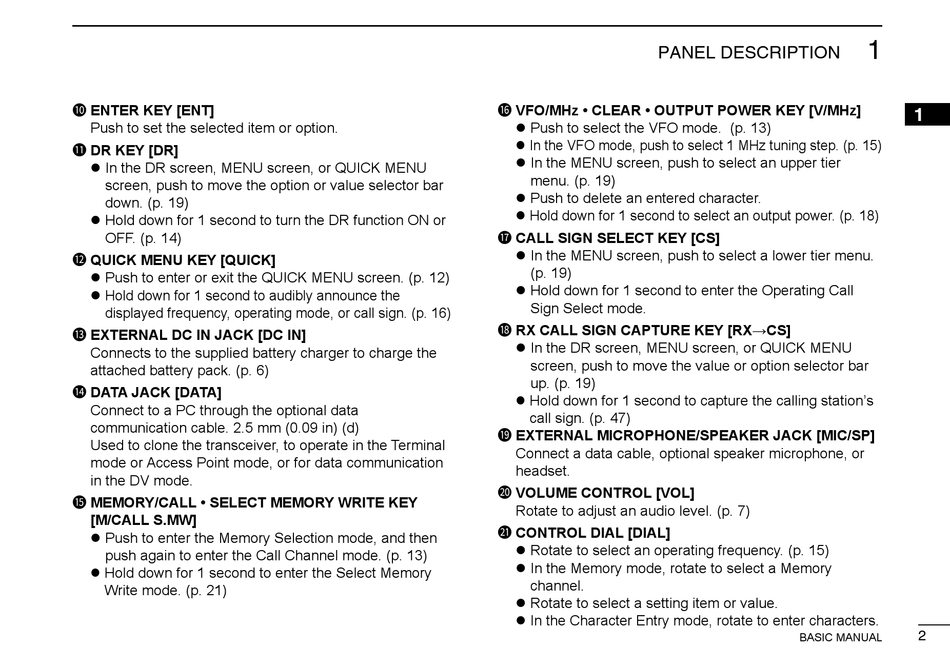

Icom ID-31E PLUS Basic Manual page 15

10 ENTER KEY [ENT]
Push to set the selected item or option.
11 DR KEY [DR]
z In the DR screen, MENU screen, or QUICK MENU
screen, push to move the option or value selector bar
down. (p. 19)
z Hold down for 1 second to turn the DR function ON or
OFF. (p. 14)
12 QUICK MENU KEY [QUICK]
z Push to enter or exit the QUICK MENU screen. (p. 12)
z Hold down for 1 second to audibly announce the
displayed frequency, operating mode, or call sign. (p. 16)
13 EXTERNAL DC IN JACK [DC IN]
Connects to the supplied battery charger to charge the
attached battery pack. (p. 6)
14 DATA JACK [DATA]
Connect to a PC through the optional data
communication cable. 2.5 mm (0.09 in) (d)
Used to clone the transceiver, to operate in the Terminal
mode or Access Point mode, or for data communication
in the DV mode.
15 MEMORY/CALL • SELECT MEMORY WRITE KEY
[M/CALL S.MW]
z Push to enter the Memory Selection mode, and then
push again to enter the Call Channel mode. (p. 13)
z Hold down for 1 second to enter the Select Memory
Write mode. (p. 21)
PANEL DESCRIPTION
16 VFO/MHz • CLEAR • OUTPUT POWER KEY [V/MHz]
z Push to select the VFO mode. (p. 13)
z In the VFO mode, push to select 1 MHz tuning step. (p. 15)
z In the MENU screen, push to select an upper tier
menu. (p. 19)
z Push to delete an entered character.
z Hold down for 1 second to select an output power. (p. 18)
17 CALL SIGN SELECT KEY [CS]
z In the MENU screen, push to select a lower tier menu.
(p. 19)
z Hold down for 1 second to enter the Operating Call
Sign Select mode.
18 RX CALL SIGN CAPTURE KEY [RX→CS]
z In the DR screen, MENU screen, or QUICK MENU
screen, push to move the value or option selector bar
up. (p. 19)
z Hold down for 1 second to capture the calling stationʼs
call sign. (p. 47)
19 EXTERNAL MICROPHONE/SPEAKER JACK [MIC/SP]
Connect a data cable, optional speaker microphone, or
headset.
20 VOLUME CONTROL [VOL]
Rotate to adjust an audio level. (p. 7)
21 CONTROL DIAL [DIAL]
z Rotate to select an operating frequency. (p. 15)
z In the Memory mode, rotate to select a Memory
channel.
z Rotate to select a setting item or value.
z In the Character Entry mode, rotate to enter characters.
