Icom ID-31E PLUS Basic Manual page 71

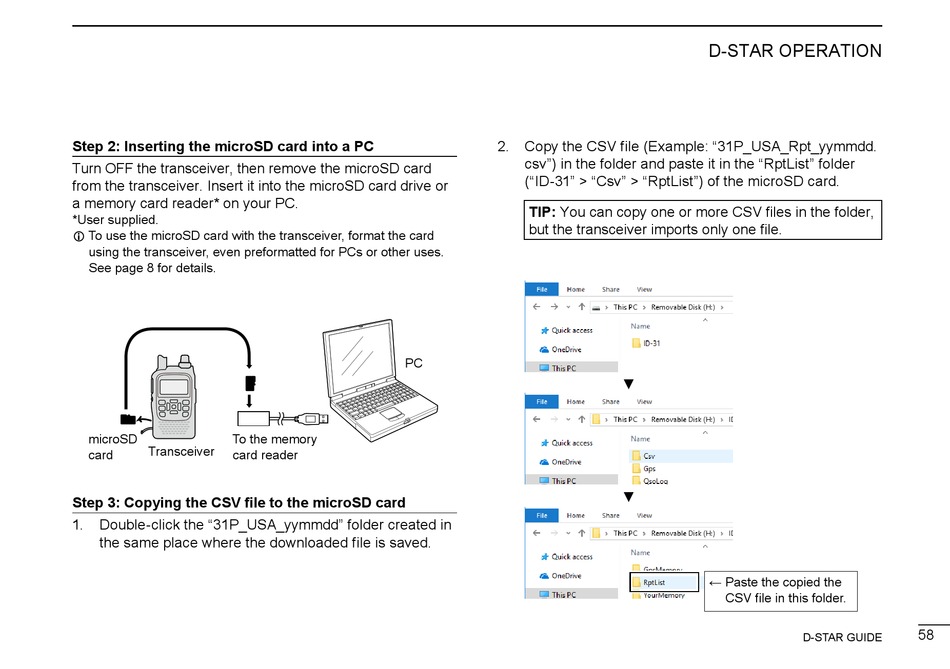

Step 2: Inserting the microSD card into a PC
Turn OFF the transceiver, then remove the microSD card
from the transceiver. Insert it into the microSD card drive or
a memory card reader* on your PC.
*User supplied.
L To use the microSD card with the transceiver, format the card
using the transceiver, even preformatted for PCs or other uses.
See page 8 for details.
microSD To the memory
Transceiver
card card reader
Step 3: Copying the CSV file to the microSD card
1. Double-click the "31P_USA_yymmdd" folder created in
the same place where the downloaded file is saved.
2. Copy the CSV file (Example: "31P_USA_Rpt_yymmdd.
csv") in the folder and paste it in the "RptList" folder
("ID-31" > "Csv" > "RptList") of the microSD card.
TIP: You can copy one or more CSV files in the folder,
but the transceiver imports only one file.
PC
D-STAR OPERATION
▼
▼
← Paste the copied the
CSV file in this folder.
58
D-STAR GUIDE
