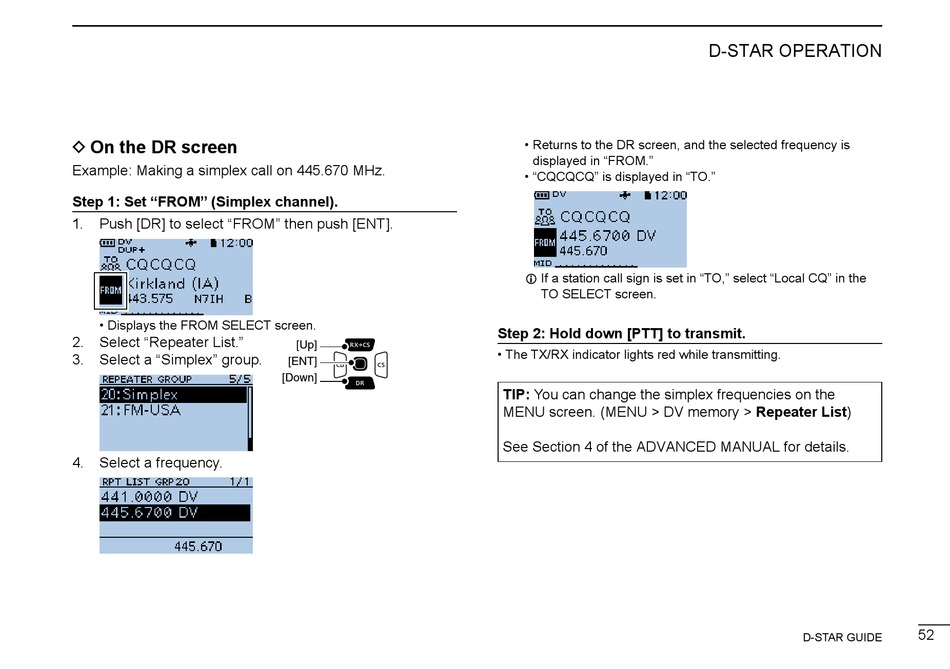

D On the DR screen
Example: Making a simplex call on 445.670 MHz.
Step 1: Set "FROM" (Simplex channel).
1.
Push [DR] to select "FROM" then push [ENT].
• Displays the FROM SELECT screen.
2. Select "Repeater List."
3. Select a "Simplex" group.
4.
Select a frequency.
[Up]
[ENT]
[Down]
• Returns to the DR screen, and the selected frequency is
displayed in "FROM."
• "CQCQCQ" is displayed in "TO."
L If a station call sign is set in "TO," select "Local CQ" in the
TO SELECT screen.
Step 2: Hold down [PTT] to transmit.
• The TX/RX indicator lights red while transmitting.
TIP: You can change the simplex frequencies on the
MENU screen. (MENU > DV memory > Repeater List)
See Section 4 of the ADVANCED MANUAL for details.
D-STAR OPERATION
D-STAR GUIDE
52
