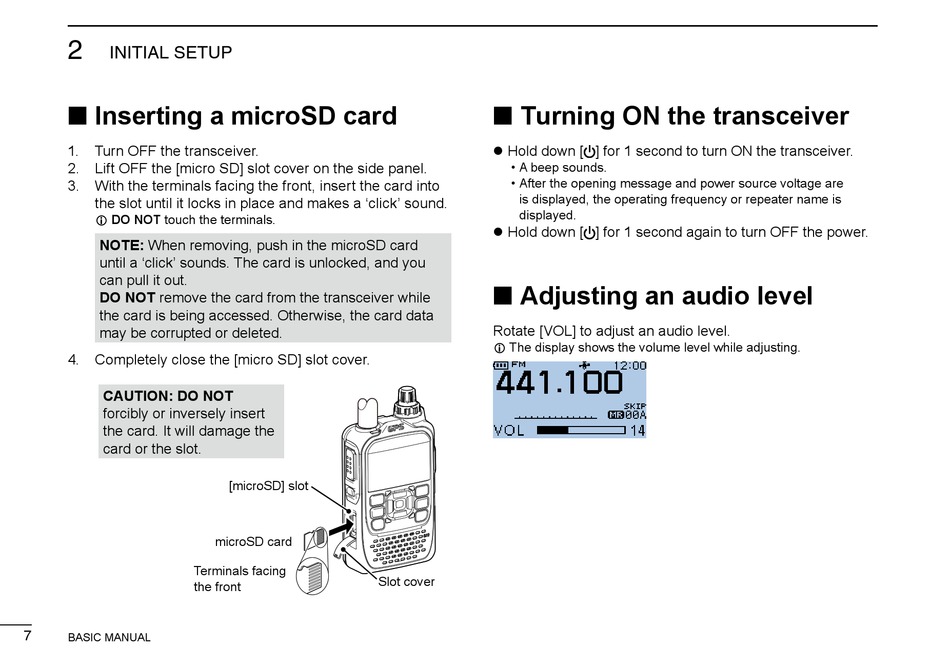

Inserting A Microsd Card; Turning On The Transceiver; Adjusting An Audio Level; Microsd Card - Icom ID-31E PLUS Basic Manual

2
INITIAL SETUP

■ Inserting a microSD card

1. Turn OFF the transceiver.
2. Lift OFF the [micro SD] slot cover on the side panel.
3. With the terminals facing the front, insert the card into
the slot until it locks in place and makes a 'click' sound.
L DO NOT touch the terminals.
NOTE: When removing, push in the microSD card
until a 'click' sounds. The card is unlocked, and you
can pull it out.
DO NOT remove the card from the transceiver while
the card is being accessed. Otherwise, the card data
may be corrupted or deleted.
4. Completely close the [micro SD] slot cover.
CAUTION: DO NOT
forcibly or inversely insert
the card. It will damage the
card or the slot.
Terminals facing
the front
7
BASIC MANUAL
[microSD] slot

microSD card

Slot cover

■ Turning ON the transceiver

z Hold down [ ] for 1 second to turn ON the transceiver.
• A beep sounds.
• After the opening message and power source voltage are
is displayed, the operating frequency or repeater name is
displayed.
z Hold down [ ] for 1 second again to turn OFF the power.

■ Adjusting an audio level

Rotate [VOL] to adjust an audio level.
L The display shows the volume level while adjusting.
