Page 14: Introduction, Safety, Plates And Decals
Copyright © SECTION 1 INTRODUCTION, SAFETY, PLATES AND DECALS FOREWORD The current Operator’s Manual is the user’s guide SPARE PARTS for correct run-in, use and maintenance of the The “non-genuine” spare parts have not been con- machine. trolled and authorized by the Manufacturer. The Carefully read this Operator’s Manual and store it in assembly and/or use of such products may have the cab for quick location and reference.
Page 15: Safety Instructions
CAUTION It warns the operator of a possible hazard of machine damage in case he does not follow a determined procedure. Your safety and that of people around you depends on you. It is essential that you understand this man- ual for the correct operation, inspection, lubrication and maintenance of this machine.
Page 16: Designated Use
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS DESIGNATED USE The machine has been built in accordance with state-of-the-art standards and the recognized safety rules. Nevertheless, its use may constitute a risk to life and limb for the user or third parties or cause damage to the machine and to other material prop- erty.
Page 17: Noise Levels
Copyright © SECTION 1 NOISE LEVELS Sound power level (acoustic external) LWA: WX 145 models: 101 dB (A) WX 165 models: 102 dB (A) WX 185 models: 103 dB (A) Sound power level guaranteed (1), determined in compliance with European standard 2000/14/EC. Sound pressure level in the operator’s seat (acoustic internal) LpA:...
Page 18: Level Of Vibrations Transmitted To The Operator
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS LEVEL OF VIBRATIONS TRANSMITTED TO THE OPERATOR The vibration level to the operator depends mainly on the conditions of the ground where the machine is being operated and on the use conditions of the machine and its equipment.
Page 19: Before Operating The Machine
- respirator or filter mask. Wear close fitting clothing and safety equipment appropriate for the job. Do not leave anything to the case. Avoid wearing loose clothing, jewellery, or other items that can catch on control levers or other parts of the machine.
Page 20 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS PREPARE FOR EMERGENCIES Be prepared if a fire starts or an accident occurs. Keep the first-aid kit and fire extinguisher on hand. Thoroughly read and understand the label attached to the fire extinguisher to use it properly. Establish emergency priority procedures to cope with fires and accidents.
Page 21: Operating The Machine
Copyright © SECTION 1 OPERATING THE MACHINE USE HANDHOLDS AND STEPS Falling is one of the major causes of personal injury. When you get on and off the machine, always main- tain a three-point contact with the steps and hand- rails and face the machine.
Page 22 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS AVOID INJURY FROM REVERSE TRAVEL AND SWING ACCIDENTS If someone stands near the machine when this is swinging or in reverse travel, the same can hit or run over this person causing heavy injuries or even death.
Page 23: Travel
Copyright © SECTION 1 TRAVEL BEFORE SETTING OFF Remove any soil, mud, snow, ice, grease and oil from your working footwear before operating the machine. You might otherwise slip from steps and pedals and thus initiate inadvertent movements. Adjust the driver’s seat and the mirror before setting off.
Page 24 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS TRAVELLING OVER LONG DISTANCES Before travelling over long distances: - return the machine to basic position; - activate the upper structure holding brake in auto- matic mode. The machine is then in basic position. Before driving on public highway, familiarize yourself with local laws and the regulations in force.
Page 25: Travelling On Public Roads
Copyright © SECTION 1 TRAVELLING ON PUBLIC ROADS WARNING Road circulation (on public roads) is ruled by special pro- visions varying from country to country. Check before- hand with local authorities for circulation provisions. Transfer on public roads (each time you leave a yard) is allowed only with an approved configuration, com- plying with dimensions (A), (B) as shown on the tables.
Page 26 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS WX 185 MONOBOOM 2800 2400 2000 Dipper (in) (110.24) (94.98) (78.73) 3850 3800 3800 A Maximum height (in) (151.57) (149.60) (149.60) 4750 4750 4850 B Frontal off-set (in) (187.00) (187.00) (190.94) PLACING BOOM 2400 2000 Dipper...
Page 27 Copyright © SECTION 1 MACHINE LAY-OUT The clamshell switching over valve has to be set to “clamshell” position. In this way, the bucket cylinder is hydraulically locked. Assemble the overall lights on the dipper. Connect the overall lights to outer socket, installed on the frame.
Page 28 1st gear. With remarkable gradients, engage the creep speed. Travel only in basic position and ahead, in this case the flywheel is positioned on the steering axle. Do not travel across slopes or reverse the machine across slopes as it could overturn.
Page 29: Job Site Operation
Copyright © SECTION 1 JOB SITE OPERATION INVESTIGATE JOB SITE BEFOREHAND Clear all persons from area of operation and machine movement. Make sure worksite footing has sufficient strength to firmly support the machine. When digging deeply, avoid hitting bottom of boom or bucket cylinder hoses against the ground.
Page 30 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS AVOID ELECTRIC LINES Serious injury or death can result if the machine or front attachments are not kept a safe distance from electric lines. When operating near an electric line, never move any part of the machine or load closer than 3 m (9.84 ft) plus twice the line insulator length (L).
Page 31: Parking The Machine
Copyright © SECTION 1 PARKING THE MACHINE Park machine on flat and firm surface. Return the machine to basic position. Lock the upper structure. Place the attachment down on the ground. Engage the parking brake. Shut off the engine. CAUTION Do not shut off the engine when running at full speed, but let it run idle for some minutes to cool it down.
Page 32: Loading The Machine On A Trailer
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS LOADING THE MACHINE ON A TRAILER WITH FRONT ATTACHMENT INSTALLED Travel forward along the ramp with the front attach- ment at the front. Once the ramp top has been reached, and before the machine starts falling forward onto the flatbed (shifting its centre of gravity), rest the bucket flat onto the trailer flatbed (the angle between the booms should be 90°...
Page 33: Machine Transport
Copyright © SECTION 1 MACHINE TRANSPORT In case of transport on public roads, ask for relevant permissions to competent authorities. In case of transport by railway, ask for permission and agree the loading and transport of the excava- tor with the competent railway authorities.
Page 34: Unloading The Machine From A Trailer
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS UNLOADING THE MACHINE FROM A TRAILER Unloading procedure may vary dependent upon whether the front attachment is installed or not. WITH FRONT ATTACHMENT INSTALLED Travel slowly in reverse along the flatbed. Once at the flatbed end and before the machine starts falling forward onto the ramp (shifting the position of its centre of gravity), rest the bucket flat side onto the ground (the angle between the booms...
Page 35: Maintenance And Adjustments
Copyright © SECTION 1 MAINTENANCE AND ADJUSTMENTS Do not carry out any service operation until you have read and understood the instructions and warnings given in this manual. Observe the adjusting, maintenance and inspection activities and intervals set out in the operating instructions, including information on the replace- ment of parts and equipment as this service con- cerns exclusively the qualified personnel.
Page 36 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS PROTECT AGAINST NOISE Prolonged exposure to loud noise can cause impair- ment or loss of hearing. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against constant or uncomfortably loud noise. AVOID HIGH PRESSURE FLUIDS Escaping fluid under pressure can penetrate the skin causing serious injury.
Page 37 Copyright © SECTION 1 CHECK TYRES A burst tyre can cause serious injury. Regularly check the condition of tyres and always observe the inflation pressures defined in accordance with the type of tyre and ground concerned. When checking tyre pressures or during an inflation operation, never stay facing the tyre but always fac- ing the tread surface.
Page 38: Prevention Of Fire Or Explosions
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS PREVENTION OF FIRE OR EXPLOSIONS Engine fuel can cause an explosion or a fire. Never refuel when the engine is running. Do not smoke during re-fuelling. Take all the necessary safety measures when weld- ing, grinding or when working near a naked flame.
Page 39: Prevention Of Burns
Copyright © SECTION 1 PREVENTION OF BURNS Battery electrolyte causes severe burns. The battery contains sulphuric acid. Avoid any contact with the skin, eyes or clothing. Antidote: - EXTERNAL: rinse well with water, removing any soiled clothing. - INTERNAL: avoid vomiting. Drink water to rinse your mouth.
Page 40: Precautions For Waste Disposal
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS PRECAUTIONS FOR WASTE DISPOSAL Improperly disposing of waste can threaten the envi- ronment. Each country has its own Regulations on this sub- ject. It is therefore advisable to prepare suitable con- tainers to collect and store momentarily all solid and fluid materials that must not be scattered in the envi- ronment to avoid pollution.
Page 41: Main Components
Copyright © SECTION 1 MAIN COMPONENTS PLACING BOOM ATTACHMENT 1. Bucket 15. Fuel tank 2. Bucket cylinder 16. Counterweight 3. Dipper 17. Stabilizers 4. Batteries 18. Rear wheels 5. Dipper cylinder 19. Rear axle 6. Placing boom 20. Cab 7. Multi-cooler 21.
Page 42: Monoboom Attachment
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS MONOBOOM ATTACHMENT 1. Bucket 15. Counterweight 2. Bucket cylinder 16. Stabilizers 3. Dipper 17. Rear wheels 4. Batteries 18. Rear axle 5. Dipper cylinder 19. Cab 6. Monoboom 20. Stair and storage box 7.
Page 43 Copyright © SECTION 1 UNDERCARRIAGE The undercarriage of the hydraulic excavator is used as a stable base and for travelling. The undercarriage is moreover equipped with com- ponents permitting stabilization of the machine dur- ing working operations, such as the levelling blade and the stabilizers.
Page 44 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS ELECTRICAL SYSTEM The electrical system operates on 24 V. 12 V are provided by an electronic transformer. Electronic modules (Power Control System) ensure that the available engine power is converted in the best possible way into hydraulic performance. WORKING ATTACHMENT The working attachment is composed of positioning, dipper and boom, bucket link and bucket.
Page 45: Components Identification Plates
Copyright © SECTION 1 COMPONENTS IDENTIFICATION PLATES When ordering parts, requesting information or assistance, always give your Dealer the type and serial number of your machine and component con- cerned. MACHINE The machine plate is attached frontally on the right side of the undercarriage.
Page 46: Ce-Mark
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS The plate is attached to the inner right cabin side on the upper beam. 1. Serial number CE-MARK The CE-mark certifies that the machine has been built in conformity with the EC directives 89/392, 91/ 368, 93/44, 93/68 and 98/37.
Page 47: Pump
Copyright © SECTION 1 PUMP The plate is applied on the pump body. 1. Model 2. Serial number AXLES The plate is applied on the axle body. 1. Model CONTROL VALVE The plate is applied on the control valve. 1. Model 2.
Page 48: Decals
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS DECALS WARNING An illegible or missing decal can have far-reaching consequences. Check them everyday. WARNING Make sure that all decals are perfectly legible. Clean them regularly, replace them with new decals if they are damaged, missing or painted over. If there is a decal on a part that is replaced, make sure you install a new decal on the new part.
Page 51 Copyright © SECTION 1 Frontal stay dangerous Nobody must stay in front of machine during the working stages. Danger of injuries caused by the working attach- ment in motion. Move the attachment only after ensuring that nobody is staying in the area of dan- ger.
Page 52 Hydraulic oil tank Read this manual carefully to avoid the risk of oil under pressure inside of the tank in case of service. Fuel tank This decal indicates the fuel tank. Make sure that the tank bearing this decal contains fuel only.
Page 53 Copyright © SECTION 1 Danger electric current Risk of injury from electric current. Keep the follow- ing distances from live wires: up to 1000 V (1 kV) = 1 metre (3.28 ft), from 1 kV to 110 kV = 3 metres (9.84 ft), from 110 kV to 220 kV = 4 metres (13.12 ft), from 220 kV to 380 kV = 5 metres (16.40 ft), unknown voltage = 5 metres (16.40 ft).
Page 54 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS Danger for moving parts Risk of injury from hot or rotating parts in the engine compartment. Open the engine hood only with engine shut off. Parking brake Emergency operation for slewing drive and emer- gency brake.
Page 55 Copyright © SECTION 1 Maintenance in progress tag It is compulsory, for maintenance operators, to apply a card warning about incomplete efficiency of the machine and the presence of personnel performing maintenance in unseen positions. This tag must be located on the cab door. 1-42...
Page 56: Hand Signals
Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS HAND SIGNALS When operating the machine, never attempt to carry out tasks calling for fine control or to work in areas where visibility is poor or during reverse travel, without seeking the assistance of a flag man. Make perfectly sure that you and the signalman understand the signals to be used.
Page 57 Copyright © SECTION 1 STOPPING LOWER LOAD OR BUCKET EMERGENCY STOP RAISE LOAD OR BUCKET SLOWLY RAISE LOAD OR BUCKET LOWER LOAD OR BUCKET SLOWLY 1-44...
Page 58 Copyright © INTRODUCTION, SAFETY, PLATES AND DECALS TURN MACHINE LEFT DUMP THE BUCKET TURN MACHINE RIGHT FILL THE BUCKET 1-45...
Page 61 Copyright © SECTION 2 Ref. Description Operation Symbol Rotary knob/ Activates the blower and has 3-speed stages: 1, 2, Blower selector Air conditioner White button Activates/deactivates the air recirculation. (optional) Air conditioner Activation/deactivation of air conditioner (ON/ Blue button (optional) OFF).
Page 62 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Push-button with two lights and three engagement positions. Left light on: brake permanently locked. Push-button Parking brake Left light off: brake permanently released. Right light on: automatic mode (in 1st gear only). The brake releases when the travel pedal is pressed.
Page 63 Copyright © SECTION 2 Ref. Description Operation Symbol Engine speed increase up to a maximum speed in Push-button Engine rpm 7 steps (7 power stages with fixed speed levels). Push-button Engine rpm Lowering of engine rpm up to idle run in 7 stages. Activation/deactivation of automatic engine speed reduction.
Page 64 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Selects the road travel mode. Ensure that the safety lever is placed to position “0”. Push-button Road travel Activation: press the button face with the symbol (lamp lights up). Deactivation: press the button face with no symbol (lamp turns off).
Page 65 Copyright © SECTION 2 Ref. Description Operation Symbol Activation: press the button face with no symbol. Hydraulic Shears Deactivation: press the button face with the (optional) symbol. Switch Activation: press the button face with no symbol. Frequency switching Deactivation: press the button face with the (optional) symbol.
Page 66: Buzzer": Acoustic Warning Signal
Some troubles occur to the electronic control, but they do not impair the operator’s and machine safety seriously. Triple sound in case of control error. Single sound, by engaging the forward speed. Double sound, by engaging the reverse travel. Long single sound, by setting to idle the travel direc- tion.
Page 67: Controls And Pedals
Copyright © SECTION 2 CONTROLS AND PEDALS Ref. Description Operation Symbol By shifting the lever to the right - the upper structure slews right. Slewing By shifting the lever to the left - the upper structure slews left. Left hydraulic control lever By shifting the lever forward - the dipper extends - the blade/stabilizers lower.
Page 68 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Clamshell Push-button Left clamshell rotation. rotation (optional) Dipper/blade and The controls for dipper/blade and stabilizers switch stabilizers Push-button over. (With blade/stabilizers activated the buzzer controls switch- sounds). over With placing boom: extension/retraction of boom adjusting cylinder.
Page 69 Copyright © SECTION 2 Ref. Description Operation Symbol Lever Turn signal light Right signal light activation. Push-button Flickering lights Flashing lights activation. Steering wheel and Steering Transfers the steering motion to the steering axle. column It locks the steering column to required inclination: Locking of the Lever by pushing downward - the column can be moved;...
Page 70: Multi-Function Display
Copyright © CONTROLS AND INSTRUMENTS MULTI-FUNCTION DISPLAY Ref. Description Operation Symbol This light turns on when the forward Lamp Travel direction travel is engaged. It flashes when the left turn signal is Lamp Turn signal light activated. Lamp Preheating It turns on during preheating. It turns on blue, when the main Lamp Main beams...
Page 71 Copyright © SECTION 2 Ref. Description Operation Symbol It turns on when the reverse travel is Lamp Travel direction activated. Time in hours and minutes/machine working hours display/fuel level indication. Time/Hourmeter/ Indication above the cross line = Fuel level Level OK 121 HOURS Indication under the cross line = top up fuel.
Page 72 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Setting of hydraulic oil pressure and of volumetric flow for the following attachments: - 4 different hydraulic hammers; - 4 different rotary cutters; ATTACHMENTS - 4 different hydraulic shears. Further options can be activated by the dealer for use by the operator: - degree of damping for equipment Attachments...
Page 73 Copyright © SECTION 2 Ref. Description Operation Symbol Display of operating hours by function groups of the machine (disabled in normal machine operation). Display and setting of maintenance intervals (disabled in normal machine operation). MAINTENANCE Calibration machine functions Maintenance (reserved for Service Department). Activation of optional machine func- tions (disabled in normal machine operation).
Page 74 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Lights up yellow in the event of faults which are not safety- or function- rel- evant. When a yellow fault occurs: - yellow warning lamp lights up; - buzzer warning sounds. Faults can be recalled by pressing the “set”...
Page 75 (e.g. safety lever defective, over- load warning) and the functioning of main assemblies of the machine is endangered: - this is the case, for instance, when there is no engine oil pressure or when the admissible load moment is being exceeded (with overload warning option) and when pres- sure- relief valves open.
Page 76: Operating Mode
Copyright © CONTROLS AND INSTRUMENTS The multi-function display handles all important set- tings, controls and functions of the machine. The display can operate in three different modes: - operating mode; - main menu; 969 HOURS - set mode. The arrow keys are basically used for scrolling through the menus, whereas the “set”...
Page 77: Main Menu
Copyright © SECTION 2 MAIN MENU Pressing an arrow button in the operating mode calls up the main menu. The arrow keys equally per- mit access to the various sub-menus: - operation hours; - code; - display settings; - faults retrieval; CODE - informations;...
Page 78: Conditions Of Use
- relative air humidity < 95%. If these conditions are not fulfilled, malfunctions cannot be excluded. In the event of malfunctions or in case of doubt, please contact our Service Depart- ment. At low winter temperatures (below about -20 °C (-4 °F)) the function menus / displays are hardly...
Page 79: Display Setting, Main Menu
Copyright © SECTION 2 DISPLAY SETTING, MAIN MENU In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). By depressing the button with the upward arrow (1) you return to main menu. 969 HOURS With downward arrow button (3) you can recall fol- lowing sub-menus:...
Page 80: Contrast
Copyright © CONTROLS AND INSTRUMENTS CONTRAST Under poor light conditions, strong solar light of extreme cold, the display contrast may need to be modified. In this way the readability of the informa- tions displayed is ensured. In operating mode depress repeatedly the arrow button, until on main menu appears “display”...
Page 81: Brightness
Copyright © SECTION 2 BRIGHTNESS Under poor light conditions, strong solar light or extreme cold, the display contrast may need to be modified. In this way the readability of the informa- tions displayed is ensured. In operating mode depress repeatedly the arrow button, until on main menu appears “display”...
Page 82: Time
For different reasons time may need to be set in the electronic control unit and visualized on the display (for instance in case of legal time change). In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background.
Page 83 Copyright © SECTION 2 Save Save changes? changes? DATE DATE DATE DATE DATE Data input Data input Data input Data input DATE F34019 Indication of the 12 hours Depress repeatedly the arrow keys until the indica- Now you are asked to memorize the settings. By tion “12 h”...
Page 84 Copyright © CONTROLS AND INSTRUMENTS Indication of the 24 hours Date Depress repeatedly the arrow keys until the indica- Depress repeatedly the arrow buttons until the indi- tion “24 h” appears on grey background. Confirm cation of the date appears on grey background. the setting with “set”...
Page 85: Units
Copyright © SECTION 2 UNITS In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). Depress repeatedly the button with downward arrow (3), until the unit symbol appears on grey back- ground (10).
Page 86 Copyright © CONTROLS AND INSTRUMENTS LANGUAGE In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). Depress repeatedly button with downward arrow (3), until the language symbol appears on grey background (13).
Page 87: Symbols
Copyright © SECTION 2 SYMBOLS Attachments Machine Service hours Code Display Faults Informations Maintenance Contrast Brightness Time Units Languages Temperature Speed Pressure Displacement Road travel Hammer Rotary cutter Shears Slew power limitation Damping Digging Stabilizer or blade Levelling Craning hook lowering Stabilizer or blade Stabilizer or blade...
Page 88: Starter Switch
Copyright © CONTROLS AND INSTRUMENTS STARTER SWITCH WARNING Before starting the engine, make sure you are fully aware of the location and the function of each con- trol. Operating the controls wrongly can cause seri- ous physical injury. The ignition key (1) activates following functions: 0 = No electric user is under voltage, the engine is shut off.
Page 89 Copyright © SECTION 2 Time in hours and minutes (A) engine power level (C). The temperature of coolant (D) and of hydraulic oil (E) is displayed. All screens show the fuel level graphically. All functions are now input by the electronics as per table: Operation Situation after ignition to ON...
Page 90: Radio
6. TA activation (short pressure) and TA deactiva- 12. Automatic reload tion (long pressure) 13. Tape quick winding 7. Audio/sound modes selection 14. Tape quick rewinding 8A. Activation (short pressure) and Deactivation (long pressure) 15. Cassette ejection 8B. Audio activation and deactivation 16. Cassette case opening 2-31...
Page 91: Entry And Exit
Copyright © SECTION 2 ENTRY AND EXIT Use only the steps, platforms and grab handles (1) provided for entering and leaving the cab. Always face the machine when climbing or dis- mounting. WARNING Never use the steering wheel or the control levers to help yourself entering or leaving the operator’s compartment.
Page 92: Door Closing
Copyright © CONTROLS AND INSTRUMENTS Opening the door from inside To open the door from inside, push lever (3) forward. DOOR CLOSING Unlock the opened, locked-in door by pushing down the lever (1). Grab the handle (2) on the upper side of the door frame and close the door.
Page 93: Front Window
Copyright © SECTION 2 FRONT WINDOW The front window can slide in the back of the cabin under the roof. Roll up the sunblind. Bring the screen wiper to basic position (fully to the left). Grab both handles (2) at the front window (left and right side) and push lock levers (1) forwards.
Page 94: Emergency Exit
(e.g. in case of an accident). To break the glass panes in case of danger, use the little hammer (1) on the rear wall behind the opera- tor’s seat on the left.
Page 95: Floodlamps
Copyright © SECTION 2 FLOODLAMPS Front working floodlamps activation Depress the blank face of switch (1). The working floodlamps on top of the cab and on the working attachment are on. Front working floodlamps deactivation Depress the symbol face of the switch (1). The working floodlamps on top of the cab and on the working attachment are off.
Page 96: Documents Storage Box, First-Aid Kit, Warning Triangle And Fire-Extinguisher
Copyright © CONTROLS AND INSTRUMENTS DOCUMENTS STORAGE BOX, FIRST- AID KIT, WARNING TRIANGLE AND FIRE-EXTINGUISHER The operator’s seat (1) is equipped behind with a storing compartment for documents (2) where to stow the Operator’s Manual. This compartment can also stow a fire-extinguisher, a first aid-kit and the warning triangle.
Page 97: Cab Lighting
In this case pull the plug out of the socket (1). After 5 - 10 minutes, the overload protection has cooled down and reacti- vates the voltage transformer.
Page 98: Steering Column
Copyright © CONTROLS AND INSTRUMENTS STEERING COLUMN Do not adjust the steering column during travel. Before adjusting the steering column: - stop the machine; - position the button of travel direction to idle; - activate the parking brake. The angle of the steering column can be adjusted to suit the height and posture of the operator.
Page 99: Ventilation, Heating And Air Conditioning (Optional)
Copyright © SECTION 2 VENTILATION, HEATING AND AIR CONDITIONING (OPTIONAL) VENTILATION (air from outside) WITH ENGINE RUNNING Use handle (1) to activate and to adjust the blower speed. WITH ENGINE SHUT OFF Turn first of all the ignition key (2) to position “I”. Now it is possible to activate the knob (1).
Page 100 Copyright © CONTROLS AND INSTRUMENTS Open the two air-flow vents (5) for the front windows as wide as possible and direct onto the front win- dows. Open the air-flow vents (6) for the side window as wide as possible and direct onto the side window. Open the air-flow vents (7) of the rear window as wide as possible and direct onto the rear window.
Page 101: Heating
Copyright © SECTION 2 HEATING The engine coolant flows through the heat exchanger of the heating system. The heating out- put is therefore also dependent on the engine tem- perature. The full heating output is not achieved until the engine has run up to operating tempera- ture.
Page 102: Air Conditioning (Optional)
Copyright © CONTROLS AND INSTRUMENTS AIR CONDITIONING (OPTIONAL) During summer time, when the air conditioner has cooled down the cab temperature, the air inside of it can further be cooled by activating the air recircula- tion. Also during winter it is possible to activate the air conditioner in order to dry the cabin air.
Page 103 Copyright © SECTION 2 CONDITIONS GOOD COOLING REFRIGERATING AGENT R 134a INTENSITY If handled in a wrong manner the refrigerating agent The air intakes ports are on the rear of the cab and R 134a can be dangerous. Therefore it is important should neither be covered nor contaminated.
Page 104: Service And Parking Brakes
Copyright © CONTROLS AND INSTRUMENTS SERVICE AND PARKING BRAKES SERVICE BRAKE The service brake is composed of four multi-plates brakes integrated in the wheel hubs. The brake is operated hydraulically. To ensure the braking function at all times, the brak- ing system is equipped with hydraulic pressure accumulators which are permanently monitored.
Page 105: Parking Brake
Only in emergency case, for instance if the service brake fails, you can activate the parking brake while the machine is still moving. In this case the braking effect is immediate, and the wheels lock! The gearbox contains two packs of plates, that are pressed by preloaded springs, when the parking brake is applied.
Page 106: Operator's Seat
Copyright © CONTROLS AND INSTRUMENTS OPERATOR’S SEAT To operate the machine correctly with maximum effi- ciency and comfort, the seat should be correctly adjusted to suit the weight and height of the opera- tor. WARNING Before using the controls, make sure that the seat is adjusted and positioned correctly.
Page 107 Copyright © SECTION 2 ADJUSTING THE SEAT CUSHION HEIGHT Pull handle (2) at front edge of seat upwards, adjust seat cushion, engage handle (2). FORE-AND-AFT ADJUSTMENT OF SEAT WITHOUT CONSOLES Pull locking lever (3) upwards, shift seat to required position and release locking lever. ADJUSTING THE SUSPENSION/SEAT HEIGHT Suspension The operator’s weight should be adjusted upwards...
Page 108 Copyright © CONTROLS AND INSTRUMENTS FORE-AND-AFT ADJUSTMENT OF SEAT WITH CONSOLES Pull bracket (5) upwards, shift seat and engage bracket. FOLD-BACK ARMRESTS The armrests (7) can be folded upwards for entering and leaving the seat. ARMRESTS ANGLE The angle of the slope can be changed in the lowest position irrespective of the backrest angle, using the integrated handwheel (8).
Page 109 Copyright © SECTION 2 ADJUSTING THE LONGITUDINAL - HORIZONTAL SUSPENSION Unlocking Move lever (9) forward. Locking Move lever (9) backward. BACKREST ADJUSTMENT Sit down on seat and lean lightly against the back- rest. Pull locking lever (10) upwards. Bring backrest to required position by pressing back or leaning for- ward, release locking lever.
Page 110 Copyright © CONTROLS AND INSTRUMENTS ADJUSTING THE LUMBAR SUPPORT An upper and a lower air chamber are integrated into the backrest. They can be inflated or deflated independently of each other. The backrest convexity can be adapted to the shape of the operator’s spine with the two push-buttons (12).
Page 111: Seat Belt
In this way your body could get injured in case of accident. The operator’s seat is fitted with a lap-type seat belt. The belt tensioning roller is incorporated on the left side of the seat.
Page 112: Operating The Machine
Copyright © SECTION 3 OPERATING THE MACHINE GENERAL INSTRUCTIONS BEFORE OPERATING THE MACHINE OPERATING THE MACHINE WARNING WARNING Read and assimilate the instructions and warnings Check that all the controls and all the safety shown in this manual before operating the devices operate correctly in a safe, clear area machine.
Page 113: Running-In Period
Copyright © SECTION 3 - Dust, smoke or fog can reduce visibility and cause RUNNING-IN PERIOD an accident. Stop or slow down the machine until Your machine will last longer and give better and normal visibility is restored. more economical performance if you pay particular - If there is any operating problem, immediately attention to the engine during the first twenty hours lower the loader equipment to the ground, engage...
Page 114: After Daily Operation - Parking
Copyright © OPERATING THE MACHINE AFTER DAILY OPERATION - PARKING Secure the machine: - Carry out daily service operations. - Park the machine. - Park machine on dry and level ground. Place the working equipment on a stand or on the ground. - Return the machine to basic position.
Page 115: Start-Up
Copyright © SECTION 3 START-UP START-UP IMMOBILIZER This machine is equipped with an electronic immobi- lizer as a standard feature. When activated, the immobilizer prevents unauthorized starting of the machine. The immobilizer is not active on delivery from the factory. It can be activated by the customer when the machine is handed over.
Page 116 Copyright © OPERATING THE MACHINE SAVE CHANGES? INPUT CODE NEW CODE WRONG CODE INPUT CODE INPUT NEW CODE PRESS ANY KEY INPUT NEW CODE F34081 key = ON ERROR System MESSAGE check ok? • Engine does not start. • Set ignition key to OFF. •...
Page 117 Copyright © SECTION 3 CODE ACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “CODE” on grey background. By means of the arrow buttons you can select “closed-lock” symbol and confirm the selection with “set” button. CODE DEACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “CODE”...
Page 118 Copyright © OPERATING THE MACHINE IMMOBILIZER, ACTIVATING THE CODE TIMER FUNCTION This menu can be used for setting a time after which By means of the arrow buttons you can activate the code is to be activated. The machine can thus now the clock symbol and confirm the selection with be put back into operation after a pause without the “set”...
Page 119 Copyright © SECTION 3 CODE Active code after: Save changes? Data input Active code after: minimum = 1 minute maximum = 6 hours F34250...
Page 120: Start-Up
Copyright © OPERATING THE MACHINE START-UP The following text describes starting of the machine without entering a number code. Disconnect the pilot control by lifting the safety lever (1) to position “0”. Set the travel direction to neutral with push-button (2).
Page 121 Copyright © SECTION 3 ENGINE DOES NOT START If the engine does not start, reset the ignition key to position “0” and repeat the start-up operation. During this operation hold the key continuously to start-up position for at least 30 seconds. Between one start trial and the other observe a pause of 2 minutes.
Page 122: Assisted Starting (Jump-Starting)
Copyright © OPERATING THE MACHINE ASSISTED STARTING (JUMP- STARTING) CAUTION Keep any potential ignition sources, such as unshielded lights or burning cigarettes, away from the batteries. Battery gases are readily flammable. A high current flows on connection of the earthing cable.
Page 123 Copyright © SECTION 3 CONNECTING THE JUMPER CABLES Connect the red jumper cable to the positive clamp of the discharged battery (1) and then to the positive clamp of the booster battery (2). Connect the black jumper cable first to the negative clamp of the booster battery (3) and then to a bright- metal point on the receiving machine (4).
Page 124: Engine Shut Off
Copyright © OPERATING THE MACHINE ENGINE SHUT OFF WARNING Do not shut off the engine when running at full speed, but let it run idle for three/five minutes to cool it down. Place the working attachment on the ground. By means of push-button Low Idle (1) bring the engine to idle run.
Page 125: Travel
Copyright © SECTION 3 TRAVEL BEFORE STARTING THE TRAVEL Remove any soil, mud, snow, ice, grease and oil from your working footwear. You might otherwise slip from steps and pedals and thus initiate inadvert- ent movements. Raise the working attachment only to such an extent that the machine can pass under overhead power lines without risk.
Page 126 Copyright © OPERATING THE MACHINE The machine is in its basic position when the cab (1) is over the left pair of wheels of the steering axle (2). A = travelling forwards: the wheels of the steered axle are in front. B = travelling backwards: the wheels of the rigid axle are in front.
Page 127: Basic Setting
Copyright © SECTION 3 BASIC SETTING According to the operation requirements and condi- tions, to the pedals and control levers reactions for working and travel movements, you can select up to four different basic settings. Following setting are possible: - (A) - SPORTIVE = bright - (B) - CLASSIC = balanced - (C) - COMFORT = smooth and sensitive - (D) - EVOLUTION = flexible with specific feature...
Page 128 Copyright © OPERATING THE MACHINE In operating mode depress repeatedly the arrow button, until on main menu appears “MACHINE” inside of a frame. Confirm with “set” button. Depress the arrow buttons repeatedly until the bar is on “BASIC SETTING”. Confirm with “set” button. To get back to “MACHINE”...
Page 129: Travel
Copyright © SECTION 3 TRAVEL Raise the blade and the stabilizers completely. Before starting the travel, perform a visual inspec- tion of the machine. Lock the upper structure with the stud (1). Apply the upper structure holding brake, by depressing button (2), until the left lamp of the but- ton lights up.
Page 130 Copyright © OPERATING THE MACHINE Depressing button (4): selection of forward travel direction, shown by lamp (A) on the display. A single acoustic warning is sounded Depressing button (5): select forward travel direc- tion, shown by lamp (B) on the display. If you have to work at a particularly low speed, select the 1st speed (off-road travel) with push-but- ton (8) and than the creep speed with push-button...
Page 131 Copyright © SECTION 3 TRAVEL SCREEN DISPLAY By depressing the button for “Road travel” the dis- play shows and highlights the relevant symbol. F34443 F34099 3-20...
Page 132: Gearbox - Gear Change
Copyright © OPERATING THE MACHINE GEARBOX - GEAR CHANGE According to the machine operation kind, you can afford different operation types at gear change: - 1st speed: left light on button (1) lit and right light out; - 2nd speed: left light out and right light on; - automatic gearshift active: both lamps are out.
Page 133 Copyright © SECTION 3 OPERATION AND SPEED OF AUTOMATIC GEAR CHANGE During travel at 1st speed (left lamp on button (1) lit and right lamp out), the machine travels at low speed “Tortoise” up to 5 km/h (3.11 mph), then the automatic gear change engages and the speed switches over to 2nd gear.
Page 134: Travel With Load Applied To Craning Hook
TRAVEL WITH LOAD APPLIED TO CRANING HOOK Turn the load toward travel direction. The flywheel must be placed in this case over the steering axle. Approach the load as near as possible to the earth and to the machine. Lock the upper structure with the stud (1).
Page 135: Floating Axle Blocking And Unblocking
Copyright © SECTION 3 FLOATING AXLE BLOCKING AND UNBLOCKING The steered axle is suspended from the undercar- riage in such a way that it can float about the longi- tudinal axis of the machine (floating axle). This feature is an advantage when driving on uneven ter- rain.
Page 136: Working Operation
Copyright © OPERATING THE MACHINE WORKING OPERATION SAFETY INSTRUCTIONS Inspect the site for underground gas, power and water lines before starting work. Any damage to these lines is a life-threatening risk. Clean off any earth, mud, snow, ice, grease and oil from your working footwear before operating the machine.
Page 137: Before Beginning The Work
Copyright © SECTION 3 BEFORE BEGINNING THE WORK Every day, before setting the machine in operation, carry out daily maintenance. Enter the cab and seat on the operator’s seat. Carry out all start-up operations. With engine at service temperature, set the required rpm by means off push-button (1).
Page 138 Copyright © OPERATING THE MACHINE AUTOMATIC SPEED REDUCTION (AUTO IDLE) The speed reduction function (Auto Idle) automati- cally reduces the engine speed in no-load working conditions. The drive engine is throttled down to idling speed if work with the working equipment is interrupted for longer than 4 seconds.
Page 139 Copyright © SECTION 3 AUTO IDLE Not operating > for 10 seconds AUTO IDLE AUTO IDLE Selection Power level adjustment F34112 POWER LEVEL SELECTION Select the power level by means of buttons (1) and (2). If the arrow buttons are depressed longer, the values keep changing automatically.
Page 140 Copyright © OPERATING THE MACHINE The selected power level is indicated on the display by dark bars representing the power stages (3). F34114 The power level is associated to 3 different opera- tion modes: - digging (A); - levelling (B); - loads moving (C).
Page 141 Copyright © SECTION 3 PILOT CONTROLS ACTIVATION/DEACTIVATION Perform the activation with following operations: Shift safety lever (1) to position “I”. Now the electrical pilot control is activated; the hydraulic control levers (2) and (3) as well as pedal (4) are operational. Deactivation is performed as following: Move the safety lever (1) to position “0”.
Page 142: Holding And Releasing The Upper Structure Slew
Copyright © OPERATING THE MACHINE HOLDING AND RELEASING THE UPPER STRUCTURE SLEW UPPER STRUCTURE HOLDING Return the machine to basic position. the locking pin (1) is set right above the opening of the undercarriage. Lift the pin (1), turn it away from the seat and push it downward.
Page 143 Copyright © SECTION 3 With ignition key is off, with engine shut off or in the event of system voltage failure, the upper structure holding brake is active. The upper structure holding brake can be operated in the following three modes: - lamps off, button (1) not pressed: the brake is released and the upper structure can rotate freely;...
Page 144 The upper structure slewing is free as soon as the upper structure emergency brake is released with the emergency activation! In such case, the upper structure is not able to stop automatically after the end of the slewing move- ment.
Page 145 Copyright © SECTION 3 UPPER STRUCTURE SLEWING Switch the upper structure holding brake into the automatic mode by depressing button (1) until lamp is lit up (this mode is selected automatically on engine start-up). Activate the pilot control by pushing forward the safety lever (3).
Page 146 Copyright © OPERATING THE MACHINE SLEWING POWER LIMITATION The hydraulic slewing power of the upper structure can be individually adapted to the working needs and to the conditions of use of the machine. In the working mode, depress repeatedly a arrow button until the background of “MACHINE”...
Page 147 The standard values may vary with the type of machine. When the slewing power limitation is on and active, the slewing power symbol is displayed in the lower left corner of the screen. In this case, observe the priority of the temporary symbols displayed. Save Save changes?
Page 148: Power Boost Function - Power Boost
Copyright © OPERATING THE MACHINE POWER BOOST FUNCTION - POWER BOOST The “Power boost function” is always automatically active in power levels 1 - 3 and in the travelling func- tion (travel pedal depressed). In the event of heavier loading, the hydraulic pres- sure for the working functions and for travelling is increased.
Page 149 Copyright © SECTION 3 AUTO POWER BOOST ACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “MACHINE” on grey background. Depress the “set” button. Depress the arrow buttons repeatedly until the bar is on “Auto Power Boost” activates. Depress the “set” button.
Page 150: Levelling Mode
Copyright © OPERATING THE MACHINE LEVELLING MODE The “levelling” mode can be activated in the power levels 4 - 7. Depress button (1). The display shows the symbol “Levelling”. The hydraulic control levers performs controls in a smoother way. If both levers are brought to position “0”, an auto- matic return to the “Digging”...
Page 151 Copyright © SECTION 3 Fine levelling The “Fine levelling” mode can permits even more sensitive working. In this case, the maximum equip- ment speed is no longer available for boom and dip- per movements. This working mode must have been configured beforehand on the display.
Page 152: Hydraulic Damping
Copyright © OPERATING THE MACHINE HYDRAULIC DAMPING By means of the hydraulic damping, the working movements acquire smoothness. Abrupt move- ments of the hydraulic control levers and travel pedal are converted into smooth machine move- ments. The controls of boom, dipper, bucket and travel are in this way suited in the best way to the operator’s ability and to the machine’s operational state.
Page 153 F34132 NOTE: by pressing “ALL STANDARD VALUES”, all The selected assy is now confirmed with button devices will set to DEFAULT value. In such a case “set”. the word “STANDARD” will be shown under the By depressing the buttons with the upward arrow, device name.
Page 154: Stabilization Of The Machine
Copyright © OPERATING THE MACHINE STABILIZATION OF THE MACHINE The standard version of the machine does not per- mit independent control of the stabilizers. This means that the stabilizer legs are lifted and lowered in common. An independent control of the stabiliz- ers is available as an option in stabilization variants.
Page 155 Copyright © SECTION 3 Standard stabilizers Independent stabilizer Stabilizers options Blade control control lowering at the rear push hydraulic control lever forward (without switches A, B, C and raising at the rear pull hydraulic control lever backward (with- out switches A, B, C and D) lowering at the rear lowering at the rear...
Page 156 Copyright © OPERATING THE MACHINE lowering in the front and lowering in the front in the back and in the back push the left hydraulic - front right stabilizer: control lever forward activate button (A) (without switches A, B, C - front left stabilizer: and D all stabilizers lower activate button (B)
Page 157: Working With Standard Bucket Or Clamshell
Copyright © SECTION 3 WORKING WITH STANDARD BUCKET OR CLAMSHELL UPPER STRUCTURE SLEWING To slew the upper structure to the right: Shift the left hydraulic control lever (1) to the right. To slew the upper structure to the left: Shift the left hydraulic control lever (1) to the left. RAISING AND LOWERING THE BOOM To raise the boom: Pull the right hydraulic control lever (2) back.
Page 158 Copyright © OPERATING THE MACHINE EXTENDING AND RETRACTING THE DIPPER First switch over to dipper function with push-button (6). To extend the dipper: Push the left hydraulic control lever (1) forward. To retract the dipper: Pull the left hydraulic control lever (1) back. FILLING AND DUMPING THE BUCKET To fill the bucket: Shift the right hydraulic control lever (2) to the left.
Page 159: Working Stages
Copyright © SECTION 3 WORKING STAGES If possible, working operations should always be carried out by pulling the dipper. When digging, use the retracting forces of the dipper and work with shallow cutting angles of the bucket. Steep bucket angles during digging reduce the per- formance.
Page 160 Copyright © OPERATING THE MACHINE The maximum digging forces are produced at angles ß at approximately 165°. If the machine is to develop maximum digging forces, digging must be done slowly. The dipper cyl- inder must have the longest possible lever arm. To remove sand and soil adhering to the bucket, the dipper must be stretched out to nearly horizontal position and the bucket be brought into dumping...
Page 161 Copyright © SECTION 3 Soil levelling. For filling and levelling the soil after the excavation work, the bucket must be moved hor- izontally forwards and backwards. To level the soil, material has to be shoved or raked with the bucket. The levelling operation must be performed by extending the dipper slowly, by raising the boom slightly and then, when the dipper crosses the verti-...
Page 162: Operating The Machine With Cold Weather
Copyright © OPERATING THE MACHINE OPERATING THE MACHINE WITH COLD WEATHER FUEL Refill the fuel tank after each working day to prevent the formation of condensation and the entry of water into the fuel system. To prevent the formation of crystals (-2 °C (28.4 °F)) use a low temperature fuel or mix a protective fluid with your fuel.
Page 163: Cold Start - Preheating
30 seconds are available for the engine start and for the activation of the post-heat- ing. If this is not the case, for the starting stage are still available from 0 to 15 seconds, for the heating of the intake air.
Page 164 The oil contained in the hydraulic system activates the cylinders and the different hydraulic motors. Cold hydraulic oil is viscous. In such a case, some machine functions as travel and rotation move- ments, are performed more slowly than with hot oil.
Page 165: Operating The Machine With Hot Weather
Copyright © SECTION 3 OPERATING THE MACHINE WITH HOT WEATHER Air density decreases as altitude or ambient temper- ature increases. As a result of this, the engine’s maximum output, quality of exhaust gas, tempera- ture level and, in extreme cases, starting behaviour, are impaired.
Page 166: Machine Recovery And Towing
Copyright © OPERATING THE MACHINE MACHINE RECOVERY AND TOWING Tow the machine only with a tow rod. The tow-rod must be free from damage. It must be dimensioned in such a way that the calculated breaking load is equal to three times the tractive power of the towing machine.
Page 167: Secure The Machine
Copyright © SECTION 3 DURING RECOVERY AND TOWING Limit the hazard area as large as possible. Proceed with caution and slowly. When the engine is running, the service brake is active. When the engine is not running, the service brake is only partially active.
Page 168 Copyright © OPERATING THE MACHINE FASTENING POINT A LEVELLING BLADE IN FRONT NOTA: always drive the machine onto the low-bed trailer in forward gear. Lower the levelling blade for transport and for fastening onto the loading plat- form. Tie down the machine at the central fastening point, using heavy-duty shackle.
Page 169 Copyright © SECTION 3 B FASTENING POINT, LEVELLING BLADE IN THE REAR NOTA: always drive the machine onto the low-bed trailer in forward gear. Lower the levelling blade for transport and for fastening onto the loading plat- form. Tie down the machine at the left and right fastening holes, to the respective side (not crosswise) using heavy-duty shackles.
Page 170: Working Attachment
Copyright © OPERATING THE MACHINE WORKING ATTACHMENT The machine can be equipped with various working Incorrect operation of the machine or the attach- equipments. Components can be combined in vari- ments may cause life threatening situations. ous ways for optimum adaptation of the equipment Tools, hoists, slings, trestles and other devices must to the specific application.
Page 171: Placing Boom Attachment
Copyright © SECTION 3 PLACING BOOM ATTACHMENT On this attachment between the lower boom (3) and positioning boom (1) there is a further articulation point (2). By means of a further hydraulic cylinder, boom adjusting cylinder (4) the placing boom can be adjusted (1).
Page 172 Copyright © OPERATING THE MACHINE SETTING OF BOOM ADJUSTING EQUIPMENT With this menu, it is possible to suit the working speed of the adjusting cylinder to the operator per- sonal requirements and particularly to the work requirements. During this operation the pedal con- trol radius is adapted (1).
Page 173 Copyright © SECTION 3 Depress the arrow buttons repeatedly until the bar By selecting the “ADJUSTMENT” menu, by means is on “SPEED LIMITATION”. Depress “set” button. of arrow buttons you can set the working speed of the adjusting cylinder, by shifting of 10% percent- On the “SPEED LIMITATION”...
Page 174: Working Attachment With Off-Set Boom
If the machine is not equipped with stabilizers, block the floating axle. In such a case pay particular attention during operation, because the overturning danger is remarkably higher. Avoid to exceed the load carry- ing capacity limit.
Page 175: Bucket
Copyright © SECTION 3 BUCKET OPENING/CLOSING SPEED PARAMETERS SETTING In the working mode, depress an arrow button until “MACHINE” appears in the lower part of the display and the machine symbol is marked by a frame. Depress “set” button. Depress the arrow buttons until the bar is on “BUCKET”.
Page 176 Copyright © OPERATING THE MACHINE Position of the tens By depressing button “set”, is highlighted with grey background the first digit (tens position) for the “OPENING”. By means of the arrow buttons you can activate or deactivate this option and confirm the selection with “set”...
Page 177: Bucket Disassembly And Assembly
Copyright © SECTION 3 BUCKET DISASSEMBLY AND ASSEMBLY Place the working equipment on the ground. Shim the bucket bottom. It could overturn, when the pins are removed. Unscrew the screws (2) and (4). Take out pins (1) and (3). Raise the working attachment slightly (5). Now the bucket (6) is free.
Page 178: Buckets Teeth - Change
Copyright © OPERATING THE MACHINE BUCKETS TEETH - CHANGE WARNING Nobody must stay in the way of the tooth or tooth safety latch that has to be extracted. The safety latch or the tooth can suddenly be ejected when driven out and hit persons. Metal splinters may cause injury.
Page 179 Copyright © SECTION 3 The tooth must be in contact with the housing (arrow). Drive in new safety latch (1) into the port (5) of the housing (4). The latch can be driven into the hous- ing from either side. 3-68...
Page 180: Supplies And Service Chart
Copyright © SECTION 4 SUPPLIES AND SERVICE CHART SUPPLIES AND SERVICE CHART Quantity (litres) (gal) Case International Component to refill Suggested Product Viscosity Standard Standard WX 145 WX 165 WX 185 Water and liquid AKCELA PREMIUM Cooling system ORGANIC (6.80) (6.60)
Page 181: Fuel
- ASTM D 975-96; 1-D and 2-D - NATO Code F-54 / F-34 / F-44 and XF 63 Exhaust emission values which may be determined in the case of type approval tests always refer to the fuels prescribed by the authorities for the type approval test.
Page 182: Hydraulic Oil
Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC OIL For the first refilling, Manufacturer uses PANOLIN HLP SYNTH 46. Hydraulic oil is not soluble in water; this can gener- ate condensate water in the hydraulic oil tank. Therefore drain condensate water periodically, par- ticularly after a long downtime period.
Page 183 The sample should then be sent by the customer to PANOLIN AG., that will carry out the necessary checks. The Dealer will care to inform the customer in case the oil has lost the necessary features for use. NOTE: should the Dealer inform the customer that oil has exceeded the service limits, this must be replaced.
Page 184: Safety Instructions
Copyright © SUPPLIES AND SERVICE CHART SAFETY INSTRUCTIONS No inspection and maintenance work may be car- ried out until the Operator’s Manual has been read and understood. CAUTION There is a risk of serious injury if maintenance or repairs are not performed correctly. If you do not understand the maintenance procedures, consult your Dealer.
Page 185: Working Hours / Intervals
Copyright © SECTION 4 WORKING HOURS / INTERVALS A condition for the Manufacturer to take over the costs of the warranty service, is the regular perform- ance of all inspection, maintenance and repair oper- ations prescribed, as instructed by this Operator’s Manual and the use of genuine spares.
Page 186: Maintenance Intervals Chart
Copyright © SUPPLIES AND SERVICE CHART MAINTENANCE INTERVALS CHART Cleaning Oil change Pressure release Level check and top-up Check Water draining Greasing Replacement / Change Air bleeding Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary...
Page 187 Copyright © SECTION 4 Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary hours hours hours hours Hydraulic system 4-13/4-65/ Hydraulic oil tank 4-74 Return filter 4-41 Bleeding valve 4-56 Pilot control filter 4-61 Upper structure Upper structure holding...
Page 188 Copyright © SUPPLIES AND SERVICE CHART Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary hours hours hours hours Attachment Buckets - Teeth 4-88 Clamshell - Wear 4-89 Greasing Various grease nipples - 4-20 Working attachment Several grease nipples -...
Page 189: Machine General Inspection
Copyright © SECTION 4 CHECKS BEFORE START-UP AND BEFORE EACH WORKING SHIFT (10 HOURS) Level check SERVICE POINTS Check Cleaning Greasing and top-up Machine - General inspection Service brake Parking brake Upper structure holding brake Lights Controls and lamps functionality Engine oil - Level Hydraulic oil tank - Level Fuel tank - Level...
Page 190: Service Brake
Copyright © SUPPLIES AND SERVICE CHART SERVICE BRAKE Before starting the machine, check the proper oper- ation of: - service brake. Check the operation of the service brake by depressing pedal (1). The service brake operation is always monitored by the multi-function display.
Page 191: Controls And Instruments
Copyright © SECTION 4 UPPER STRUCTURE HOLDING BRAKE Before starting the machine, check the proper oper- ation of: - upper structure holding brake. Check the correct operation in this way: - Start the engine The upper structure holding brake can be oper- ated in AUTOMATIC mode by the centralized electronic system.
Page 192: Engine Oil - Level
Check that the oil level is above the “min” notch of the dipstick (1) inside of hydraulic oil tank (2). If this is not the case, top up the hydraulic oil. No matter what the position of the working attach- ment is, the oil level must always be between the notches “min”...
Page 193 Copyright © SECTION 4 HYDRAULIC OIL TOP UP The hydraulic oil tank is slightly under pressure at about 0.3 bar (4 psi). As mentioned previously, before performing any top up of the hydraulic oil, it is important to relieve the residual pressure inside of the hydraulic system.
Page 194: Fuel Tank - Level
Copyright © SUPPLIES AND SERVICE CHART FUEL TANK - LEVEL Use commercial-grade diesel fuels with a sulphur content of less than 0.5%. The following fuel specifications are approved: - DIN EN 590 - BS 2869 - ASTM D 975-96; 1-D and 2-D The quantity of Cetane (CZ) inside of fuel should not be lower than 49.
Page 195 In this case: - always refuel through a fine mesh filter; - user only intake hoses with a fine mesh filter;...
Page 196: Cooling System Liquid - Level
If the cooling system is leaking, do not mix sealing additives to the coolant. These could in fact clog the cooling system. In such a case the coolant delivery could cause a engine overheating. The coolant level has to be checked daily, so as to detect in time liquid leaks and to avoid damages.
Page 197 COOLANT LEAKS Leaks of coolant leads to suspect, first of all, to the lack of tightness. In such a case, have the cooling system immediately checked by the After-sales service. The only coolant top up is not sufficient.
Page 198: Screen Washer Liquid - Level
Copyright © SUPPLIES AND SERVICE CHART SCREEN WASHER LIQUID - LEVEL The operation logic and mode of the liquid container have been optimized, because the same has been incorporated in the panel behind the operator’s seat. The panel is used at the same time as supporting surface for operator’s tools and personal objects.
Page 199: Working Attachment - Greasing
Copyright © SECTION 4 WORKING ATTACHMENT - GREASING Before beginning the greasing operation: Clean the grease nipple. - place the working attachment on the ground, com- Apply the pump nozzle on the grease nipple. pletely extended; Now, pump the grease in such a quantity that the - place the machine in a safe condition.
Page 200: Off-Set Boom - Greasing
Copyright © SUPPLIES AND SERVICE CHART Position Lubrication point Quantity Extension/retraction cylinder joint (rod side) Bucket cylinder joint (bottom side) Boom cylinder joint (bottom side) Extension/retraction cylinder joint Clamshell (optional) - Joints - clamshell bucket rotation gear teeth - Clamshell bucket / dipper joint Grease nipples block - Extension/retraction cylinder joint (rod side) - Boom cylinder joint (rod side)
Page 201: Tyres - Pressure Check
Copyright © SECTION 4 TYRES - PRESSURE CHECK CAUTION Before inflating the tyres, check the tyres, rims and rim parts for damage, penetrated foreign objects and proper fitting. Check the tyre inflation pressure only when the tyres are cold, as when they are warm, the pres- sures indicated are higher than usual.
Page 202 Copyright © SUPPLIES AND SERVICE CHART Do not overinflate the tyres, because if bumped they can break easily and under extreme conditions the rim can get deformed and the tyre can burst. CAUTION The tyres inflating pressure varies according to the load applied to axles.
Page 203: Tyres - Nuts Tightening
Copyright © SECTION 4 TYRES - NUTS TIGHTENING Park the machine on a flat surface and lower the equipment to the ground. Shut off the engine. Engage the parking brake. Secure the machine by placing chocks under the wheels to prevent inadvertent movements. Check if nuts (1) are tighten.
Page 204: Weekly Service (50 Hours)
Copyright © SUPPLIES AND SERVICE CHART WEEKLY SERVICE (50 HOURS) Level Water SERVICE POINTS Check check and Cleaning Greasing bleeding draining top-up Cab - Air filter Air filter: Dust discharge valve - Main filter element Air intake system: Intake pipes Cooler Fuel system Fuel filter...
Page 205: Air Filter - Cleaning
DUST DISCHARGE VALVE - CLEANING The dust discharge valve (2) collects dust penetrat- ing into the air filter case. To discharge the dust, compress the dust discharge valve repeatedly. The dirt is crumbled and comes out from the bottom.
Page 206 Copyright © SUPPLIES AND SERVICE CHART MAIN FILTER ELEMENT - CLEANING Never clean filter elements by beating them against hard objects. After 3 cleaning cycles or after one year of operation at the latest, the main filter element must be replaced.
Page 207: Air Intake Line - Check
Copyright © SECTION 4 AIR INTAKE LINE - CHECK Hoses and tubes for air intake damaged or leaking, influence enormously the performance and life of the engine. Dirt or pieces of the intake air can reach the engine and damage it heavily. The feeding pressure created by the turbocharger could dissipate with the consequence that the engine does not develop its full power.
Page 208: Fuel System - Air Bleeding And Water Draining
The cooler has to be cleaned by directing the jets from the top to the bottom. Remove the dirt residu- als. In case of dirt build-up, clean the hood and the draining holes. FUEL SYSTEM - AIR BLEEDING AND WATER DRAINING CAUTION The fuel vapours are readily flammable.
Page 209 Copyright © SECTION 4 AIR BLEEDING When components on the fuel delivery line are replaced, the air bleeding from the system is per- formed automatically. When the fuel line under high pressure is disassem- bled or replaced, the air bleeding is not required for engine start-up.
Page 210 In such a case there is the formation of condensate, in particular when the tank is not completely full. With temperatures lower than 0 °C (32 °F), the condensate freezes and the drain-...
Page 211: Fuel Filter/S - Water Draining
Copyright © SECTION 4 FUEL FILTER/S - WATER DRAINING WARNING Water contained in the fuel can corrode, damage or wear the engine injection system. NOTE: the WX 145 excavator is equipped with fuel filter. The WX 165 and WX 185 excavators are equipped with two fuel filters.
Page 212: Slewing Gearbox - Oil Level
Copyright © SUPPLIES AND SERVICE CHART SLEWING GEARBOX - OIL LEVEL Place the machine in a safe condition. Open the engine hood. Unscrew cover (1) of the expansion tank (2). The expansion tank must be filled with oil for at least 1-2 cm (0.39-0.79 in).
Page 213: Batteries - Level - Charge Check And Clamps Tightening
Copyright © SECTION 4 BATTERIES - LEVEL - CHARGE CHECK AND CLAMPS TIGHTENING CAUTION Batteries give off explosive gases. Never handle naked flames and unshielded light sources near batteries, never smoke. Battery acid is toxic and corrosive. Avoid any contact with the skin, mouth, eyes and clothing.
Page 214 24 V (batteries are serial con- nected). To recharge the battery, do not exceed the maxi- mum charge current of 10% of the battery rated capacity. Recharge time maximum 30 hours, in case of bat- tery completely flat. 4-35...
Page 215 Copyright © SECTION 4 Quick recharge Respect the prescriptions of the Manufacturer of the battery charger. Before performing the quick recharge, that is, a recharge with high density voltage, disconnect both connecting cables and disassemble the batteries. Before performing the battery charge, unscrew the plugs to allow the release of gas from all battery cells.
Page 216: Slewing Bearing Cups And Axle Floating Pins - Greasing
Copyright © SUPPLIES AND SERVICE CHART SLEWING BEARING CUPS AND AXLE FLOATING PINS - GREASING Before starting with the greasing operations place the machine in a safe condition. By means of the greasing pump, grease all lubrica- tion points of the upper structure. Remove the protection cap from the grease nipple.
Page 217: Quick Coupler - Greasing
Copyright © SECTION 4 QUICK COUPLER - GREASING LOCKING CYLINDER (1) = No. 1 grease nipple (2) = No. 1 grease nipple (3) = No. 1 grease nipple LOCKING HOOK PIN (4) = No. 1 grease nipple 4-38...
Page 218: Monthly Service (250 Hours)
Copyright © SUPPLIES AND SERVICE CHART MONTHLY SERVICE (250 HOURS) Level check Replacement SERVICE POINTS Check Greasing and top-up / Change Engine oil filter Fuel filter Hydraulic oil return filter Steering axle Rigid axle and gearbox Air conditioning system Blade and stabilizer joint Cardan shaft Steering trunnion pins Axle locking cylinders contact face...
Page 219: Fuel Filter/S - Change
Copyright © SECTION 4 Fill the new filter cartridge with clean oil. Lightly oil the gasket of the new filter cartridge. Screw in the new cartridge until the gasket is flush. At this point tighten the filter by hand. Fill in engine oil into filler neck (2) until the oil level reaches the “max”...
Page 220: Hydraulic Oil Return Filter - Change
Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC OIL RETURN FILTER - CHANGE WARNING Before starting to work on the hydraulic system, make sure that this is not under pressure and relieve any residual pressure from it. Never let hydraulic oil to come in contact with the skin.
Page 221: Steering Axle - Oil Level
Copyright © SECTION 4 STEERING AXLE - OIL LEVEL WARNING The axle and the differential box may also be hot after a long journey. Leave the axle and differential box to cool down and wear working gloves. The axle and differential may be slightly over pres- surized, so turn the control plug carefully, just far enough to release the excess pressure (audible hissing sound).
Page 222: Travel Gearboxes - Oil Level
Copyright © SUPPLIES AND SERVICE CHART TRAVEL GEARBOXES - OIL LEVEL Bring the screw plugs (1) and (2) into position depending on the wheel-hub installed. Screw plug (1) must be above the centreline. The line under the word “Front” must be in horizon- tal position.
Page 223: Rigid Axle And Gearbox - Oil Level
Copyright © SECTION 4 RIGID AXLE AND GEARBOX - OIL LEVEL WARNING The axle and the gearbox may also be hot after a long journey. Let the axle and the gearshift box cool down and wear working gloves. The axle and the gearshift box may be slightly over pressurized, so turn the control plug carefully, just far enough to release the excess pressure (audible hissing sound).
Page 224: Air Conditioning System
Moreover, it is necessary to let it run for at least 10-15 minutes. In this way you avoid that the oil seal on the com- pressor shaft dries and becomes fragile. In this case coolant leaks may take place. Besides, in this way all compressor components are periodically lubri- cated.
Page 225: Blade And Stabilizers Joints, Cardan Shaft, Steering Trunnion Pins Greasing
Copyright © SECTION 4 BLADE AND STABILIZERS JOINTS, CARDAN SHAFT, STEERING TRUNNION PINS - GREASING Before starting with the greasing operations place the machine in a safe condition. By means of the greasing pump, grease all lubrica- tion points. Remove the protection cap from the grease nipple. Clean the grease nipple.
Page 226: Floating Axle Locking Cylinders Contact Faces - Lubrication
Copyright © SUPPLIES AND SERVICE CHART STEERING TRUNNION PINS (3) = No. 4 grease nipples (4) = No. 2 grease nipples FLOATING AXLE LOCKING CYLINDERS CONTACT FACES - LUBRICATION The contact faces of floating axle locking cylinder must be lubricated. If the contact faces are dry, noise is heard during the axle floating.
Page 227: Service Every 12 Months (500 Hours)
Place the machine in a safe condition. Shut off the engine. Open the engine compartment cover. The engine revolutions sensor (1) is fitted on the flywheel case and is accessible from the bottom, after dismantling the panels, that are placed under the pumps and engine compartment.
Page 228: Drive Belts - Check
(1) are not allowed. In this case the belt has to be replaced. The belt must be replaced also in case of frayed edges or if it is losing pieces. Check that the belts have no shiny or worn out spots.
Page 229: Engine Oil - Change
Copyright © SECTION 4 ENGINE OIL - CHANGE WARNING Risk of burns caused from hot engine oil. Collect escaping oil and discard without polluting the environment. DRAINING HOSE FOR OIL CHANGE The engine is equipped with a special filler neck (1) for oil discharge.
Page 230: Slewing Bearing - Screw Tightening Check
Copyright © SUPPLIES AND SERVICE CHART OIL FILLING Screw up the hose. Reassemble the base-plate for maintenance below the engine compartment. Engine oil filter change. Carry out the oil filling by unscrewing the plug (4), until you reach the reference “max” of the dipstick (5).
Page 231: Slewing Bearing Teeth - Greasing
13 mm (0.51 in) on WX 145 and WX 165 excavators and of 20 mm (0.79 in) on WX 185 exca- vators. If this is not the case, add grease. Check that water is not penetrated. You can recog- nize this event by the fact that grease becomes lighter.
Page 232: Service After 1000 Hours
Copyright © SUPPLIES AND SERVICE CHART SERVICE AFTER 1000 HOURS Replacement / SERVICE POINTS Check Cleaning Oil change Change Cab - Air filter Windscreen wiper - Blades Engine brackets - Screws tightening Engine - Belt tensioner Air filter: Main and safety filter elements Hydraulic system - Bleeding valve Steering axle Rigid axle and gearbox...
Page 233: Engine Brackets - Screws Tightening Check
If damaged, the belt tensioner (1) has to be replaced. Address in this case to an authorized workshop. Check the belt tensioner (1) for dirt build-ups. In case of dirt build-ups, disassemble it and clean it with steam jets. 4-54...
Page 234: Air Filter - Replacement Of Main Filter Element And Of Safety Element
(3) has been cleaned three times. Clean the inside of the filter case (5) and the cover (2) accurately, by means of a vacuum cleaner. Install the new safety element (4) and then the main new element (3).
Page 235: Hydraulic System Bleeding Valve - Change
Copyright © SECTION 4 HYDRAULIC SYSTEM BLEEDING VALVE - CHANGE The air bleeding and sucking valve (1) ensures this operation inside of the hydraulic oil tank (2), so as to compensate the hydraulic oil level floating. This valve maintains a pressure of about 0.3 bar (4 psi) inside of the tank.
Page 236 Copyright © SUPPLIES AND SERVICE CHART DIFFERENTIAL - OIL CHANGE Clean the area around screw plugs (1) and (2). Place a container under the screw plug (2) to collect old oil. Unscrew the screw plug (1) slowly, until the inner pressure is completely released.
Page 237: Rigid Axle And Gearbox - Oil Change
Copyright © SECTION 4 RIGID AXLE AND GEARBOX - OIL CHANGE WARNING The axle and the gearbox may also be hot after a long journey. Let the axle and the gearshift box cool down and wear working gloves. The axle and the gearshift box may be slightly over pressurized, so turn the control plug carefully, just far enough to release the excess pressure (audible hissing sound).
Page 238 Copyright © SUPPLIES AND SERVICE CHART DIFFERENTIAL - OIL CHANGE Clean the area around the plugs (1) and (2). Place a container under the screw plug (2) to collect old oil. Unscrew the screw plug (1) slowly, until the inner pressure is completely released.
Page 239: Service Brake - Plates Check
Copyright © SECTION 4 SERVICE BRAKE - PLATES CHECK The check to carry out is the thickness of coatings. To purchase the measurement device address to your Dealer. WX 145 WX 165 WX 185 Measurement of maximum gap (mm) (0.15 in) (0.18 in) The measurement has to be carried out on all wheels and by following this procedure.
Page 240: Pilot Control Filter - Change
Unscrew the case (2) and move it downward as far as possible. Do not let hydraulic oil flow out. Remove the filter (3) with one turn. Clean the filter case (2) and the seal surfaces on the filter head. Fit the new filter (3) with one turn.
Page 241 Copyright © SECTION 4 SYSTEM COMPONENTS The air conditioning system consists of: - blower (1); - heat exchanger (2); - evaporator (3); - panel filter (4); - heating valve (5); - draining sleeve for condensate discharge (6); - motor for air re-circulation and outer air intake (7); - thermostat, electronic control unit (8);...
Page 242 Check the good conditions and the correct fastening of connectors and of electric wires. Check that evaporator fins (3) are not bent: if this is the case, straighten them again. Check that the antifreeze probe is not bent or shows leaks.
Page 243 Copyright © SECTION 4 Check the operation of the selector for temperature adjustment (19). If the selector is hard to move, check that the tie-rod is not bent or rusted, eventually replace it. COMPRESSOR BELT - REPLACEMENT WARNING Risk of injury from hot or rotating parts in the engine compartment.
Page 244: Service After 3000 Hours
Copyright © SUPPLIES AND SERVICE CHART SERVICE AFTER 3000 HOURS Replacement SERVICE POINTS Check Oil change Cleaning Air bleeding / Change Oil tank Engine - valves clearance Cooling system liquid Fuel tank Slewing gearbox HYDRAULIC OIL TANK - CLEANING AND OIL CHANGE WARNING Never let hydraulic oils to come in contact with the skin.
Page 245 Copyright © SECTION 4 HYDRAULIC OIL TANK - CLEANING WARNING Do not use petroleum, paraffin oil or other solvents to clean the tank. This can cause the formation of gas easy flamma- ble and explosive. Use therefore only hydraulic oil or paraffin oil for the special detergent for cleaning and washing the tank.
Page 246: Hydraulic System - Air Bleeding
Beyond respecting the maintenance intervals, air must be bled from the hydraulic system after each oil change: pumps, engines and cylinders have to be accurately bled of air. If this is not the case, their performance during intake and operation will be seriously affected.
Page 247: Cooling System Liquid - Change
Copyright © SECTION 4 COOLING SYSTEM LIQUID - CHANGE WARNING Drain the coolant only after it has cooled down suffi- ciently. Discard used coolant according to environment leg- islation. Park the machine on a level and firm surface. Place the working attachment on the ground. Activate the parking brake.
Page 248: Fuel Tank - Cleaning
Copyright © SUPPLIES AND SERVICE CHART FUEL TANK - CLEANING WARNING Do not use petroleum, paraffin oil or other solvents to clean the tank. This can cause the formation of gas easy flamma- ble and explosive. Use therefore only hydraulic oil or detergent oil spe- cially suited for the tank cleaning.
Page 249: Slewing Gearbox - Oil Change
Copyright © SECTION 4 SLEWING GEARBOX - OIL CHANGE WARNING Collect escaping oil and discard without polluting the environment. Perform the oil change with the machine at opera- tion temperature; hot oil drains more easily. DRAINING HOSE FOR OIL CHANGE The gearbox is equipped with a special sleeve (1) for oil discharge.
Page 250: Service When Necessary
Copyright © SUPPLIES AND SERVICE CHART SERVICE WHEN NECESSARY Pressure SERVICE POINTS Check Cleaning Air bleeding Replacement release Machine Windscreen wiper Engine - Drive belt Engine - Injectors Hydraulic system Tyres Service brake Steering axle - Steering adjustment Axle floating locking cylinders Fuses Lights - Floodlamps - Bulbs Batteries...
Page 251 In case of a light formation of ing tanks for disposal. To wash the machine outside rust, this should be accurately eliminated. Finally,...
Page 252: Windscreen Wiper - Check And Cleaning
Copyright © SUPPLIES AND SERVICE CHART WINDSCREEN WIPER - CHECK AND CLEANING For a good visibility from the operator’s side a good cleaning of the cab windows is required. In order to maintain this status, the good condition and operation of the windscreen wiper blades is cru- cial.
Page 253: Injectors - Replacement
Copyright © SECTION 4 - On adjusting cylinders with break protection valve INJECTORS - REPLACEMENT at cylinder head side. This residual pressure may Consult your Dealer. release, by retracting nearly completely the con- cerned cylinder and by lifting the undercarriage of about 10 cm (3.93 in) with the attachment com- HYDRAULIC SYSTEM AND TANK - pletely extended.
Page 254 Copyright © SUPPLIES AND SERVICE CHART PRESSURE RELEASE FROM HYDRAULIC OIL TANK For this operation fit the locking pin (2) laterally into the bleeding valve (1) and air intake. Now unscrew the valve (1) with care, until the bleeding hole opens (you hear a hissing).
Page 255: Tyres - Change
- intermediate ring (optional); - outer wheel (rims with minor camber angle). Observe the sequence absolutely, because in case of wrong assembly of the wheels, the maxi- mum allowable with of the machine can be exceeded; - pay attention to the tread position;...
Page 256 Copyright © SUPPLIES AND SERVICE CHART WHEELS TREAD POSITION Observe the tread position when fitting the wheels. (A) = Shows the tread position recommended for all- wheel driven machines which must have the same traction power for both driving directions. (B) = Shows the tread position of the tyres when the all-wheel-driven machine needs especially good traction in one direction, e.g.
Page 257: Service Brake - Air Bleeding
Copyright © SECTION 4 SERVICE BRAKE - AIR BLEEDING The braking system of this machine consists of two braking circuits. One circuit is designed for the pair of wheels of the steering axle, while the other circuit is designed for the pair of wheels of the rigid axle. If works have been performed on the braking sys- tem, causing the penetration of air inside of the sys- tem, for instance during a hose replacement, once...
Page 258: Axle Floating Locking Cylinders - Air Bleeding
Copyright © SUPPLIES AND SERVICE CHART AXLE FLOATING LOCKING CYLINDERS - AIR BLEEDING Park the machine on a level and firm surface. Place the working attachment on the ground. Shut off the engine. Place chocks under the wheels. Unscrew the plugs (2) on both cylinders. Push the pistons down, until they lean on the thrust block of the axle.
Page 259: Fuses - Replacement
Check the fuse. Nearly always it is possible to check visually if a fuse is burnt out. In case of doubt, check with an Ohmeter or replace the burnt fuse with a new one.
Page 260 Copyright © SUPPLIES AND SERVICE CHART FUSES LEGEND Cab - Fuse box (A) Power-Relay (main switch function), electronic control unit, engine stop solenoid FA.1 shrinkage coil FA.2 Start-Relay, optional: Grid-Heater-Controller FA.3 Free FA.4 Sensors earthing FA.5 Optional: Filling system Electric-hydraulic pilot control safety switch, Relay for main unit voltage supply, FA.6 work pilot control lamp, travel pilot control lamp FA.7...
Page 261 Copyright © SECTION 4 Cab - Fuses box (B) FB.1 Optional: rotary light FB.2 Optional: cab rear working floodlamps FB.3 Front cab working floodlamps FB.4 Screen wiper and glasses wash pump FB.5 Cab inner light FB.6 7.5A Voltage supply for 24V/12V radio and socket transformer FB.7 Voltage supply for display and key-pad module in the cab FB.8...
Page 262: Bulbs - Replacement
Copyright © SUPPLIES AND SERVICE CHART BULBS - REPLACEMENT Burnt bulbs have to be replaced with bulbs of same power. Before installing a new bulb, remove all traces of corrosion from the holder and the electrical con- tacts. This helps avoid contact problems and high contact resistances.
Page 263 Copyright © SECTION 4 FRONT WORKING FLOODLAMPS Remove the light from the cab roof. With your fingers, compress the safety bracket (arrows) on connector (2) and remove the connec- tor. Unscrew the nut (1) with a spanner. Remove working floodlamp (4) with the cap (3). Holding the working floodlamp (4) still, turn the cap (3) to the left and remove it.
Page 264 Copyright © SUPPLIES AND SERVICE CHART TRAVEL FLOODLAMP Unscrew the screws (1) and remove the floodlamp (2) from the upper structure frame. Remove the large rubber cap (6) from the floodlamp back. Disconnect the electric connector (4). Remove the protection cap (3) from the bulb holder. Open the lock bracket (5) of the bulb.
Page 265 Copyright © SECTION 4 REAR FLOODLAMPS Unscrew the fastening screws (1) of the covering glass (2) of the lamps. Remove the covering glass (2) of the lamps. The bulbs are fitted inside a plug-in bulb holder. Press the bulb and turn it to the left. Remove the bulb.
Page 266: Batteries - Replacement
Copyright © SUPPLIES AND SERVICE CHART BATTERIES - REPLACEMENT WARNING Shut off the engine before removing batteries, to prevent damaging the alternator and regulator or the electronic modules. Disconnect clamps from poles in the correct sequence. A sequence error can cause a short-circuit. Park the machine on a level and firm surface.
Page 267: Buckets Teeth - Change
Copyright © SECTION 4 BUCKETS TEETH - CHANGE WARNING Nobody must stay in the way of the tooth or tooth safety latch that has to be extracted. The safety latch or the tooth can suddenly be ejected when driven out and hit persons. Metal splinters may cause injury.
Page 268: Clamshell - Wear Check
When the normal wear of the clamshell blades and end stroke stops exceeds the allowed value, the clamshell cylinder may get damaged. In such a case the allowed cylinder stroke is exceeded; cylinder piston and liner bump one against the other at stroke end.
Page 270: Troubleshooting
Copyright © SECTION 5 TROUBLESHOOTING Faults are often due to the machine not having been operated or serviced properly. When dealing with faults, it is therefore necessary to read the corresponding chapter of the operating instructions once again. If you cannot find the cause of a fault or rectify it, contact the After-sales service.
Page 271: Errors Indication On The Display
In some particular cases, some faults can occur concurrently. In such a case, the relevant error codes are indi- cated, by alternating one after the other in the usual visualization.
Page 272: Engine
Copyright © TROUBLESHOOTING ENGINE PROBLEM POSSIBLE CAUSE CORRECTION The engine does start at all or Improper starting procedure. Revise the starting procedure. starts only with difficulty. Starting temperature too low. Perform preheating. Troubles at start-up. Consult your Dealer. Fuel unsuitable. Drain fuel tank and refill with fuel of correct type.
Page 273 Copyright © SECTION 5 PROBLEM POSSIBLE CAUSE CORRECTION The engine runs irregularly or Fuel unsuitable. Drain fuel tank and refill with fuel of fails. correct type. Air filter dirty or clogged. Clean or replace the filtering elements. Fuel filter dirty or clogged. Replace fuel filter.
Page 274 Copyright © TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTION Exhaust smoke: blue. Engine oil level too high. Decrease oil level. Excessive inclination of engine. Check and modify the engine position. Air filter dirty or clogged. Clean or replace the filtering elements. Defective head gasket. Replace the gasket.
Page 275: Steering System
Copyright © SECTION 5 STEERING SYSTEM PROBLEM POSSIBLE CAUSE CORRECTION Steering not operational. Air in the hydraulic system of the Bleed the system. steering. Steering wheel hard. Double pump without frictional Consult your Dealer. connection. Steering wheel hard to turn Oil level too low.
Page 276: Brakes System
Copyright © TROUBLESHOOTING BRAKES SYSTEM SERVICE BRAKE PROBLEM POSSIBLE CAUSE CORRECTION Insufficient braking action or no Brake pedal valve faulty. Consult your Dealer. braking action at all. Air in the accumulator. Consult your Dealer. Air in the hydraulic braking system. Check for leaks and rectify.
Page 277: Hydraulic System
Copyright © SECTION 5 HYDRAULIC SYSTEM PROBLEM POSSIBLE CAUSE CORRECTION Working and slewing Pilot control lever not in working Check and position lever correctly. movements not operational. position. Pilot control lever defective. Consult your Dealer. Hydraulic oil level too low. Top up hydraulic oil in correct quantity.
Page 278 Copyright © TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTION Standard bucket inoperative. Pilot control pressure limiting valve Consult your Dealer. faulty. Malfunction of primary and secondary Consult your Dealer. pressure limiting valves. Right hydraulic control lever Consult your Dealer. defective. Standard bucket opening/ Pilot control pressure limiting valve Consult your Dealer.
Page 279: Storage
Copyright © SECTION 5 TRAVEL PROBLEM POSSIBLE CAUSE CORRECTION Machine does not move: no Hydraulic oil level too low. Top up hydraulic oil in correct forward travel, nor reversing. quantity. Pilot control pump defective. Consult your Dealer. Pumps drive coupling defective. Consult your Dealer.
Page 280: Slewing
Copyright © TROUBLESHOOTING SLEWING PROBLEM POSSIBLE CAUSE CORRECTION Slewing not operational. Pilot control lever not in working Check and position lever correctly. position. Pilot control lever defective. Consult your Dealer. Hydraulic oil level too low. Top up hydraulic oil in correct quantity.
Page 281: Floating Axle Blocking
Copyright © SECTION 5 FLOATING AXLE BLOCKING PROBLEM POSSIBLE CAUSE CORRECTION Floating-axle support not Floating-axle blocking valve faulty. Consult your Dealer. blocking. Pilot valve faulty. Consult your Dealer. Floating-axle not blocking. Floating-axle blocking valve faulty. Consult your Dealer. Pilot valve faulty. Consult your Dealer.
Page 282: Stabilizers
Copyright © TROUBLESHOOTING STABILIZERS PROBLEM POSSIBLE CAUSE CORRECTION Stabilizer not operational. Pilot control lever not in working Check and position lever correctly. position. Pilot control lever defective. Consult your Dealer. Hydraulic oil level too low. Top up hydraulic oil in correct quantity.
Page 283 Copyright © SECTION 5 PROBLEM POSSIBLE CAUSE CORRECTION Cylinder extends without Non-return valves of cylinders Consult your Dealer. control. defective operation. Cylinders internal leaks. Consult your Dealer. Stabilizers cylinders retract Non-return valves of cylinders Consult your Dealer. without control. defective operation. Cylinders internal leaks.
Page 284: Hydraulic Hammer
Copyright © TROUBLESHOOTING HYDRAULIC HAMMER PROBLEM POSSIBLE CAUSE CORRECTION Hammer system not Pressure relief valve defective. Consult your Dealer. operational. Primary pressure limiting valve Consult your Dealer. defective. Hammer power too low. Pressure relief valve defective. Consult your Dealer. Primary pressure limiting valve Consult your Dealer.
Page 285: Clamshell Bucket
Copyright © SECTION 5 CLAMSHELL BUCKET PROBLEM POSSIBLE CAUSE CORRECTION Clamshell rotation not Clamshell rotation pump defective. Consult your Dealer. operational. Hydraulic oil level too low. Top up with hydraulic oil in correct quantity. Malfunction of clamshell-rotation Consult your Dealer. pressure-limiting valve.
Page 286: Axles
Copyright © TROUBLESHOOTING AXLES PROBLEM POSSIBLE CAUSE CORRECTION Ring gear teeth broken Excessive gear load compared to the Replace bevel gear. outside. one foreseen. Gear adjustment wrong (excessive Follow carefully the recommended backlash). operations for the adjustment of bevel gear set backlash. Pinion nut loose.
Page 287 Copyright © SECTION 5 PROBLEM POSSIBLE CAUSE CORRECTION Oil leakage from gaskets and Prolonged functioning at high Replace the gasket or seal and seals. temperature of the oil. matching surface if damaged. Oil gasket assembled incorrectly. Replace. Damaged or worn gasket lip. Replace.
Page 288: Centralized Lubrication Pump
Copyright © TROUBLESHOOTING CENTRALIZED LUBRICATION PUMP If the tank pump operates correctly can be checked from outside, by checking the rotation of the mixing blade (for instance by opening the connection of an additional lubrication assy or by checking the lamps of the control board).
Page 289 Copyright © SECTION 5 PROBLEM POSSIBLE CAUSE CORRECTION The right lamp (3) blinks. One of the two selectors (1) and (2) is Set both selectors on position 3. positioned to 0. Signals: 4-times flickering. Short-circuit on button (4). Check if the short-circuit is occurred Signals: 3-times flickering.
Page 290: Heating/Air Conditioning System
Copyright © TROUBLESHOOTING HEATING/AIR CONDITIONING SYSTEM SYSTEM PROBLEM POSSIBLE CAUSE CORRECTION System very noisy. Belt loose or worn. Retension belt or replace. Clutch noisy. Repair clutch. Compressor supporting bracket loose Repair bracket, replace compressor. or internal compressor parts worn out. Blower motor excessively worn.
Page 291: Cooling System
Copyright © SECTION 5 COOLING SYSTEM PROBLEM POSSIBLE CAUSE CORRECTION Compressor not working. Open circuit in compressor solenoid. Check power supply to the clutch. Faulty thermostat. Replace thermostat. Belt loose or broken. Adjust belt tension, replace belt. Belt pulley not turning although Check compressor and replace, if magnetic clutch is engaged.
Page 292: Blower
Copyright © TROUBLESHOOTING BLOWER PROBLEM POSSIBLE CAUSE CORRECTION Blower not working. Fuse blown or loose. Check fuse contact, if necessary plug in correctly. Replace defective fuse. Reappearance of the defect after a short time indicates a short-circuit. Check blower for blocking or other faults.
Page 294: Storage
Copyright © SECTION 6 STORAGE MACHINE STORAGE ENGINE STORAGE If the machine is to be set out of operation for longer If the engine is to remain idle for an extended period periods, the following measures are recommended: of time, it is necessary to take protective measures to prevent rusting.
Page 295: Batteries Storage
Copyright © SECTION 6 BATTERIES STORAGE RECOMMISSIONING THE MACHINE For extended machine downtime periods, remove AFTER PROLONGED STORAGE batteries and store on dry, well ventilated premises Before recommissioning the machine after a pro- at about 20 °C (68 °F). longed storage, observe the following points: Observe the following points: Remove engine preservation.
Page 296: Decommissioning Of The Machine
- acid (batteries); - components of the machine with remarkable weight (booms, buckets, etc.). IMPORTANT: handle and dispose of fluids accord- ing to current regulations. Use only authorised dis- posal procedure and, in case of doubt, contact the appropriate authorities.
Page 298: Attachments
Copyright © SECTION 7 ATTACHMENTS HYDRAULIC HAMMER HYDRAULIC HAMMER SELECTION If a hydraulic hammer has to be fitted on the exca- vator, it is important to choose a model satisfying the stability, pressure and oil quantity requirements of the excavator hydraulic system. CAUTION For the selection of the hydraulic hammer type most suitable to the machine features, address to...
Page 299 Copyright © SECTION 7 Avoid working with excavator cylinders completely extended (fully extended or fully retracted) so as not to damage the attachment structure or the same cyl- inders. Stop working if hydraulic hoses are bent abnormally. Do not operate the hydraulic hammer in water. This use may originate rust or damage seals and compo- nents of the hydraulic system.
Page 300: Use Of Hydraulic Hammer
Copyright © ATTACHMENTS USE OF HYDRAULIC HAMMER BEFORE BEGINNING WORK Check that the hydraulic hammer is safely locked on the working equipment and that the hydraulic lines are connected in the right way. SWITCHING ON THE HYDRAULIC HAMMER Select the “Hydraulic hammer” function by depress- ing switch face without symbol (1).
Page 301 Copyright © SECTION 7 HAMMER OPERATION WITH FIXED IMPACT FREQUENCY Place tip of chisel then switch on hammer with push- button (1). The hammer works with the maximum preset hydraulic power and is on as long as the button is depressed.
Page 302 Copyright © ATTACHMENTS HYDRAULIC HAMMER, SETTING THE PARAMETERS MACHINE MACHINE MACHINE MACHINE MACHINE DAMPING HAMMER LEVELLING SPEED LIMITATION SWING POWER ROTARY CUTTER BASIC SETTING AUTO POWER BOOST SHEARS BUCKET F34157 ATTACHMENT HAMMER ROTARY CUTTER SHEARS HAMMER 1 HAMMER 2 HAMMER 3 HAMMER 4 HAMMER 3 F34171...
Page 303 Copyright © SECTION 7 WRONG CODE HAMMER 3 PRESS ANY KEY HAMMER 3 PARAMETERS NOT UPDATED. RE-TEST. INPUT CODE PRESS ANY KEY. HAMMER 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. HAMMER 3 HAMMER 3 Save changes?
Page 304 Copyright © ATTACHMENTS If the settings for hammer 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit. By depressing the button with the downward arrow (⇓), the number decreases of one unit.
Page 305: Hydraulic Shears
Copyright © SECTION 7 HYDRAULIC SHEARS SELECTING THE HYDRAULIC SHEARS Considering that the weight of the hydraulic shears is higher than the weight of the bucket, you have to select a shears model having the features suitable for the excavator to avoid possible troubles or machine instability.
Page 306 Copyright © ATTACHMENTS The hydraulic shears must be used with front attach- ment oriented towards the longitudinal position of the excavator. The use of other orientations could impair machine stability and originate risks of over- turning. When you work with the hydraulic shears oriented upwards and the boom extended pay attention to the fall of debris.
Page 307: Use Of Hydraulic Shears
Copyright © SECTION 7 USE OF HYDRAULIC SHEARS BEFORE BEGINNING WORK Check that the hydraulic shears are safely locked on the working equipment and that the hydraulic lines are connected in the right way. SWITCHING ON THE HYDRAULIC SHEARS Preselect “Hydraulic shears” with rocker switch (1). Depress the blank face of switch, switch backlight- ing is on.
Page 308 Copyright © ATTACHMENTS SWITCHING OFF THE HYDRAULIC SHEARS Release pedal (5). Disconnect switch (1). (Depress the symbol face of switch, switch backlighting is off). OPERATING THE SHEARS WITH THE HYDRAULIC CONTROL LEVER (OPTIONAL) Clamshell operation on quick tool coupler Switch “Joy” ON - shears over to bucket and bucket inactive.
Page 309 Copyright © SECTION 7 HYDRAULIC SHEARS, SETTING THE PARAMETERS MACHINE MACHINE MACHINE MACHINE MACHINE DAMPING HAMMER LEVELLING SPEED LIMITATION SWING POWER ROTARY CUTTER BASIC SETTING AUTO POWER BOOST SHEARS BUCKET F34157 ATTACHMENT HAMMER ROTARY CUTTER SHEARS SHEARS 1 SHEARS 2 SHEARS 3 SHEARS 4 SHEARS 3...
Page 310 Copyright © ATTACHMENTS WRONG CODE SHEARS 3 PRESS ANY KEY SHEARS 3 PARAMETERS NOT UPDATED. RE-TEST. INPUT CODE PRESS ANY KEY. SHEARS 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. SHEARS 3 SHEARS 3 Save changes? Data input...
Page 311 Copyright © SECTION 7 If the settings for shears 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit.
Page 312: Hydraulic Quick Coupler
Copyright © ATTACHMENTS HYDRAULIC QUICK COUPLER The hydraulic quick coupler has been designed The use of the quick coupler for works other than according to the most severe quality parameters. It those for which it has been planned are prohibited. corresponds to the safety rules in force.
Page 313 Copyright © SECTION 7 IDENTIFICATION PLATES When ordering spare parts or when needing infor- mation or assistance, it is always necessary to give the local Dealer all references as regards the type (4) and the serial number (1) of the relevant quick coupler.
Page 314: Quick Assembly And Disassembly
Copyright © ATTACHMENTS QUICK ASSEMBLY AND DISASSEMBLY ASSEMBLY Make sure that the attachment to be fitted is stand- ing firmly on a flat surface and that it is equipped with pins delivered with the quick coupler. Set the switch to unlocking position. The acoustic alarm sounds.
Page 315 Copyright © SECTION 7 Lift the dipper and remove completely the bucket cylinder rod. Set the switch to locking position. The acoustic alarm stops sounding. Keep the bucket cylinder under pressure so as to allow the closure of the locking hook. Lift the work- ing attachment so that the bucket pin (3) becomes visible.
Page 316: Handling Of Loads
Copyright © ATTACHMENTS DISASSEMBLY By moving the dipper hydraulic control lever, place this one to vertical position, slightly tilted toward the cab, so as to release the safety device. By moving the bucket hydraulic control lever, lean the bucket on the ground on a flat and firm surface. Set the switch to unlocking position.
Page 317: Clamshell Bucket
Copyright © SECTION 7 CLAMSHELL BUCKET SAFETY INSTRUCTIONS The hazard zone of the clamshell must be kept clear of all persons. Never try to change the clamshell position or its sup- port with your hands. The bucket link when blocked should not be use to lift weights.
Page 318 Copyright © ATTACHMENTS Set to horizontal position the marker grooves on the valves’ squares (7). Clean and grease bearing pins and bushes. Drive the machine towards the clamshell. Insert dipper into grab bearing, push bearing pin (2) home and secure it. Shut off engine and relieve hydraulic pressure from clamshell hoses as described.
Page 319: Clamshell Bucket Disassembly
Copyright © SECTION 7 CLAMSHELL BUCKET DISASSEMBLY Open clamshell completely and set clamshell down on the ground. Shut off the engine, turn the ignition key to position “I”. Relieve the pressure from the hydraulic hoses of the clamshell. Press to the left and hold the right hydraulic control lever (3).
Page 320: Parameters Setting
Copyright © ATTACHMENTS PARAMETERS SETTING ATTACHMENT CLAMSHELL BUCKET REDUCED LOAD CARRYING CAPACITY CLAMSHELL BUCKET CLAMSHELL BUCKET Save changes? SPEED SPEED OPENING: OPENING: CLOSING: CLOSING: F34185 The opening/closing speed reduction of clamshell is optional. SWITCHING OVER FROM STANDARD TO CLAMSHELL BUCKET To switch over the working attachment from stand- ard bucket to clamshell, two valves located on the bucket cylinder have to be switched.
Page 321 Copyright © SECTION 7 CLAMSHELL BUCKET OPERATION Set to vertical position the marker grooves on the valves’ squares (1). SWITCHING OVER OF VOLUME FLOW FROM STANDARD BUCKET TO CLAMSHELL By means of switch (2) the machine can be switched over from backhoe operation with unlim- ited volume flow in the working pumps, to grab oper- ation with presettable independent volume flow rates for opening and closing of the clamshell.
Page 322: Rotary Cutter
This prevents the machine from being overloaded or the stability from being jeopardized. Before mounting the attachment, check that attach- ment and machine are filled with identical or com- patible hydraulic oil. If this is not the case, drain the oil out of the attach- ment. 7-25...
Page 323: Use Of The Rotary Cutter
Copyright © SECTION 7 USE OF THE ROTARY CUTTER BEFORE BEGINNING WORK Check that the rotary cutter is securely locked with the working attachment and that the hydraulic lines are connected in the right way. SWITCHING ON THE ROTARY CUTTER Preselect “Rotary cutter”...
Page 324 Copyright © ATTACHMENTS SETTING THE PARAMETERS OF HYDRAULIC ROTARY CUTTER MACHINE MACHINE MACHINE MACHINE MACHINE DAMPING HAMMER LEVELLING SPEED LIMITATION SWING POWER ROTARY CUTTER BASIC SETTING AUTO POWER BOOST SHEARS BUCKET F34157 ATTACHMENT HAMMER ROTARY CUTTER SHEARS ROTARY CUTTER 1 ROTARY CUTTER 2 ROTARY CUTTER 3 ROTARY CUTTER 4...
Page 325 Copyright © SECTION 7 WRONG CODE ROTARY CUTTER 3 PRESS ANY KEY ROTARY CUTTER 3 PARAMETERS NOT INPUT CODE UPDATED. RE-TEST. PRESS ANY KEY. ROTARY CUTTER 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. ROTARY CUTTER 3 ROTARY CUTTER 3 Save changes?
Page 326 Copyright © ATTACHMENTS If the settings for cutter 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit. By depressing the button with the downward arrow (⇓), the number decreases of one unit.
Page 327: Craning Hook
(e.g. the clamshell). In this case the craning hook cannot be used to lift loads. The pin is not designed for such situations, there- fore it could bend or break abruptly.
Page 328: Overload Warning System
Copyright © ATTACHMENTS OVERLOAD WARNING SYSTEM WARNING The overload warning system sends exclusively acoustic and visual indication but thanks to them the machine overturning is avoided. When the warning system sounds: - lower the load immediately, - reduce the working radius or the load. Hydraulic excavators used for lifting operations or for transporting loads must be equipped with an overload warning system and pipe break protections...
Page 329 If a fault occurs in the overload warning system, lamps (2) and (3) on button (1) are both flashing. In this case, too, the red warning lamp lights up and the “Overload” message is displayed on the screen. IMPORTANT: have the overload warning system repaired immediately by our Service Department.
Page 330: Break Protection Valves
Copyright © ATTACHMENTS BREAK PROTECTION VALVES The break protection valves prevent the working attachment from lowering in case of a hydraulic hose breaking on the head side of the boom cylin- ders. The hydraulic connection of boom cylinder head is cut out, so that hydraulic oil can flow back from this point only if the “boom lowering”...
Page 331: Rear Floodlamps
Copyright © SECTION 7 REAR FLOODLAMPS The rear working floodlamps (1) are positioned on the rear side of cab, under the roof. SWITCHING THE FLOODLAMPS ON AND OFF The rear floodlamps can only be switched on, if the ignition key is set to position “I” (ignition ON). Switch on the working floodlamps by depressing face without symbol of button (2), the lamp inside the button lights up.
Page 332: Rotary Light
Copyright © ATTACHMENTS ROTARY LIGHT SINGLE LIGHT Rotary lights are fitted on a mounting stud and secured with a retaining screw. The electrical con- nection is incorporated in the stud. In this way a connecting cable is not required. DOUBLE LIGHT In some countries, two rotary lights are mandatory.
Page 333: Fuel Transfer Pump
In this case: - always refuel through a fine mesh filter; - user only intake hoses with a fine mesh filter;...
Page 334 Copyright © ATTACHMENTS Open the tank cover. Protect the tank filler from penetration of dirt. Disassemble cover (1) of maintenance opening, placed under the refuelling system. Connect intake hose (2) to large spare container. Turn the ignition key to position “I”. Activate the pump with green button (3) on the same pump.
Page 335: Cab Protections
Copyright © SECTION 7 CAB PROTECTIONS When you work in areas where there is the danger of rocks or debris falling the use of following cab protections is unavoidable. - (1) FOPS (Falling Object Protective Structure), tubular structure to install over the cab roof. - (2) FGPS (Front Guard Protective System), tubu- lar structure to install on the front side of the cab.
Page 336: Centralized Lubrication
Copyright © ATTACHMENTS CENTRALIZED LUBRICATION SAFETY INSTRUCTIONS Place the machine in a safe condition. The centralized lubrication system, connected to the pump tank is secured through the pressure limiting valve (1). The whole system can be checked visu- ally on the pressure limiting valve. If during the flow rate the pressure limiting valve is releasing fuel, the system is somewhere clogged.
Page 337 Copyright © SECTION 7 LUBRICANTS The tank pump can operate with standard grease types available on the market up to class NLGI 2. Class NLGI indicates exclusively the static density of grease, but not the dynamic behaviour of grease while pumped. The characteristics of fluidity of grease of same class NLGI may differ remarkably between them.
Page 338 TIMES SETTING To check the down-time and the working time, remove cover (1) from the case of the tank pump. The down-time can be set by means of blue selector (3), while the working time can be set by means of red selector (2).
Page 339: Manual Filling Pump
Copyright © SECTION 7 FILLING OF THE TANK PUMP The filling of the tank pump is performed through fit- tings (1) or (2). MANUAL FILLING PUMP ASSEMBLY Remove both cartridge caps (1). Prior to the assembly of the manual filling pump, pay attention to insert also the gasket (2).
Page 340: Motorized Filling Pump
Copyright © ATTACHMENTS MOTORIZED FILLING PUMP Fill grease into the tank pump through the fitting (1) or (2) and by means of the filling hose. Repeat this operation until grease reaches the maximum level. If an overfilling takes place, grease comes out from the overflow opening.
Page 342 Copyright © SECTION 8 DATA AND TECHNICAL SPECIFICATIONS DIMENSIONS - OPERATING WEIGHTS WX 145 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2550 1230 1850 2843 2520 3050 3910 4555 2500 1070 8035 8175 1175 1010 2000 (100.39) (16.92) (48.42) (72.83) (14.5) (111.92)
Page 343 Copyright © SECTION 8 OUTFIT WITH MONOBOOM mm (in) Dipper 2923 4445 7925 8065 2550 1230 1850 2520 3050 3910 2500 1070 1175 1010 2000 (100.39) (16.92) (48.42) (72.83) (14.5) (115.07) (99.21) (120.07) (153.93) (13.58) (179.33) (36.61) (98.42) (42.12) (312.00) (317.51) (46.25) (39.76)
Page 344 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH OFF-SET BOOM mm (in) Dipper 2550 1230 1850 2805 2520 3050 3910 4404 2500 1070 7884 8024 1175 1010 2000 (100.39) (16.92) (48.42) (72.83) (14.5) (110.43) (99.21) (120.07) (153.93) (13.58) (173.38) (36.61) (98.42) (42.12) (310.39)
Page 345: Outfit With Placing Boom
Copyright © SECTION 8 WX 165 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2550 1230 2000 2886 2520 3040 3900 4803 2500 1070 8283 8423 1175 1010 2300 (100.39) (17.71) (48.42) (78.73) (12.59) (113.62) (99.21) (119.68) (153.54) (14.37) (189.09) (36.61) (98.42) (42.12)
Page 346: Data And Technical Specifications
Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH MONOBOOM mm (in) Dipper 2550 1230 2000 2858 2520 3040 3900 4513 2500 1070 7993 8133 1175 1010 2300 (100.39) (17.71) (48.42) (78.73) (12.59) (112.51) (99.21) (119.68) (153.54) (14.37) (177.67) (36.61) (98.42) (42.12) (314.68) (320.19)
Page 347: Front Blade And Rear Stabilizers (Kg) (Lb) 15237
Copyright © SECTION 8 OUTFIT WITH OFF-SET BOOM mm (in) Dipper 2550 1230 2000 2984 2520 3040 3900 4580 2500 1070 8060 8200 1175 1010 2300 (100.39) (17.71) (48.42) (78.73) (12.59) (113.84) (99.21) (119.68) (153.54) (14.37) (180.31) (36.61) (98.42) (42.12) (317.32) (322.83) (46.25)
Page 348: Wx 185 Models
Copyright © DATA AND TECHNICAL SPECIFICATIONS WX 185 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2650 1300 2150 2990 2520 3150 3900 5112 1010 2500 1040 8772 8802 1200 1060 2000 (104.33) (17.71) (51.18) (84.64) (12.59) (117.71) (99.21) (124.01) (153.54) (14.37) (201.25)
Page 349 Copyright © SECTION 8 OUTFIT WITH MONOBOOM mm (in) Dipper 2650 1300 2150 2990 2520 3150 3900 5010 1010 2540 1040 8670 8700 1200 1060 2000 (104.33) (17.71) (51.18) (84.64) (12.59) (117.71) (99.21) (124.01) (153.54) (14.37) (197.24) (39.76) (99.99) (40.94) (341.33) (342.52) (47.24)
Page 350: Digging Performance
Copyright © DATA AND TECHNICAL SPECIFICATIONS DIGGING PERFORMANCE WX 145 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 9200 362.20 9300 366.14 9500 374.01 B Maximum loading height mm in 6800 267.70...
Page 351 Copyright © SECTION 8 OUTFIT WITH MONOBOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 8400 330.71 8300 326.77 8500 334.64 B Maximum loading height mm in 6000 236.22 6000 236.22 6200 244.09 C Maximum digging depth mm in 4800...
Page 352 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH OFF-SET BOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 8300 326.77 8300 326.77 8400 330.71 B Maximum loading height mm in 6000 236.22 6000 236.22 6200 244.09...
Page 353 Copyright © SECTION 8 OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2000 78.74 2300 90.55 2600 102.36 A Maximum loading height 5600 220.47 5700 224.41 6000 236.22 C Maximum depth 5900 232.28 6200 244.09 6500 255.90 F Maximum outreach 7100 279.53 7300 287.40...
Page 354 Copyright © DATA AND TECHNICAL SPECIFICATIONS Monoboom Dipper 2000 78.74 2300 90.55 2600 102.36 A Maximum loading height 4800 188.98 4800 188.98 5000 196.85 C Maximum depth 6000 236.22 6300 248.03 6600 259.84 F Maximum outreach 7000 275.59 7200 283.46 7500 295.27 H Front swing radius...
Page 355: Wx 165 Models
Copyright © SECTION 8 WX 165 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 9800 385.83 10000 393.70 10300 405.51 B Maximum loading height mm in 7100 279.53 7400 291.33 7600...
Page 356: A Maximum Digging Height
Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH MONOBOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 8900 350.39 9000 354.33 9200 362.20 B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.77 C Maximum digging depth...
Page 357: Or Off-Set Right Side
Copyright © SECTION 8 OUTFIT WITH OFF-SET BOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 8900 350.39 9100 358.26 9300 366.14 B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.78 C Maximum digging depth mm in...
Page 358 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2300 90.55 2600 102.36 2900 114.17 A Maximum loading height 6100 240.16 6300 248.03 6500 255.90 C Maximum depth 6500 255.90 6800 267.72 7100 279.53 F Maximum outreach 7700 303.15 7900...
Page 359 Copyright © SECTION 8 Monoboom Dipper 2300 90.55 2600 102.36 2900 114.17 A Maximum loading height 5300 208.66 5400 212.60 5600 220.47 C Maximum depth 6500 255.90 6800 267.72 7100 279.52 F Maximum outreach 7400 291.34 7600 299.21 7900 311.02 H Front swing radius 2600 102.36...
Page 360: Mm In
Copyright © DATA AND TECHNICAL SPECIFICATIONS WX 185 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2000 78.74 2400 94.49 2800 110.24 A Maximum digging height mm in 9900 389.76 10200 401.57 10500 413.38 B Maximum loading height mm in 7200 283.46 7500...
Page 361: Mm In 8300
Copyright © SECTION 8 OUTFIT WITH MONOBOOM Dipper mm in 2000 78.74 2400 94.49 2800 110.24 A Maximum digging height mm in 9000 354.33 9200 362.20 9400 370.07 B Maximum loading height mm in 6400 251.96 6600 259.84 6800 267.71 C Maximum digging depth mm in 5200...
Page 362 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2000 78.74 2400 94.49 2800 110.24 A Maximum loading height 6100 240.16 6400 251.97 6700 263.78 C Maximum depth 6300 248.03 6700 263.79 7100 279.53 F Maximum outreach 7600 299.21 8000...
Page 363 Copyright © SECTION 8 Monoboom Dipper 2000 78.74 2400 94.49 2800 110.24 A Maximum loading height 5300 208.66 5500 216.53 5800 228.35 C Maximum depth 6200 244.09 6600 259.84 7000 275.59 F Maximum outreach 7500 295.27 7800 307.09 8200 322.83 H Front swing radius 2600 102.36...
Page 364: Lifting Capacities
Copyright © DATA AND TECHNICAL SPECIFICATIONS LIFTING CAPACITIES NOTE: the chart represents a WX 145 excavator with placing boom outfit. 8-23...
Page 365: Hydraulic System
Copyright © SECTION 8 HYDRAULIC SYSTEM PUMPS The hydraulic system is controlled by 3 pumps, 2 main ones and an independent one for slewing. The engine and the pumps are monitored by the “Power Limit Control” system. Up to 7 power levels can be selected for digging and lifting, included the levelling mode for fine works. The power level can be increased automatically with “Drive”...
Page 366: Tyres
Copyright © DATA AND TECHNICAL SPECIFICATIONS TYRES Pressure V (max) Tyre Manufacturer Type (bar) (psi) [km/h] (mph) 7.50 Mitas 10.00-20 PR16 NB38 (109) (18.64) 7.25 Mitas 11.00-20 PR16 NB38 (105) (18.64) 7.50 Bridgestone 10.00-20 PR16 FGF (109) (18.64) 7.00 Twin Bridgestone 11.00-20 PR16 FGF (102)
Page 367: Electrical System
Copyright © SECTION 8 ELECTRICAL SYSTEM Service voltage ............................24 V Batteries..............................2 x 12 V Batteries rating............................100 Ah Alternator ..............................70 A Starter motor ......................... 4 kW (2963 ft·lb/s) BUCKETS BUCKETS - WX 145 Width (mm) (in) Weight (kg) (lb) SAE capacity (m ) (ft ) Heaped capacity (m...
Page 368: Tightening Torques
Copyright © DATA AND TECHNICAL SPECIFICATIONS TIGHTENING TORQUES WX 145 WX 165 WX 185 Wheels nuts Nm (lbf·ft) 450 (331.90) Slewing bearing Nm (lbf·ft) 270 (199.14) 280 (206.52) Nm (lbf·ft) 104 (76.71) 60 (44.25) Engine supports Nm (lbf·ft) 270 (199.14) 105 (77.44) Nm (lbf·ft) 490 (361.40)
Page 369: Engine
Copyright © SECTION 8 ENGINE WX 145 WX 165 WX 185 Type F4GE9484E*J600 F4GE9684F*J600 F4GE9684E*J601 Operation 4-stroke diesel Cylinders number Cylinders arrangement in V-line Valves per cylinders Boring mm (in) 104 (4.09) Stroke mm (in) 132 (5.20) Displacement 4.5 (158.92) 6.7 (236.61) Power kW (ft·lb/s)
Page 370: Alphabetical Index
Copyright © SECTION 9 ALPHABETICAL INDEX Air conditioning ......2-43, 4-45, 5-21 Code ..............3-4 Air filter - Change ..........4-55 Components identification plates .....1-32 Air filter - Cleaning ...........4-26 Compressor belt - Change .......4-61 Air filter safety element change ......4-55 Condenser - Cleaning ......4-61, 4-63 Auto Idle ............3-27 Controls and instruments ........
Page 371 Copyright © SECTION 9 Floating axle locking cylinders contact Levelling ............3-39 faces - Lubrication ..........4-47 Lifting capacities ..........8-23 FOPS ............... 7-38 Lights ............... 4-12 Foreword ............1-1 Lubricants ............7-40 Front working floodlamps ......... 2-36 Lubrication pump ..........8-27 Fuel ..............
Page 372 Copyright © ALPHABETICAL INDEX Radio ..............2-31 Tightening torques - Chart .......8-27 Rear working floodlamps ......2-36, 7-34 Time ..............2-23 Refrigerating agent .......... 2-44 Transport bracket for clamshell ......7-38 Rigid axle and gearbox - Oil change ....4-58 Travel ........3-14, 3-18, 5-10, 8-24 Rigid axle and gearbox - Oil level ...4-44, 4-58 Travel with load applied to craning hook ..
Page 375 All rights reserved. No part of the text or illustrations of this publication may be reproduced. CASE policy is one of continuous improvement and the right to change prices, specification or equipment at any time without notices is reserved. All data given in this publication is subject to production variations. Dimensions and weight are approximate only and the illustrations do not necessarily show products in standard condition.

This manual is also suitable for:

Wx165 Wx185Wx 145

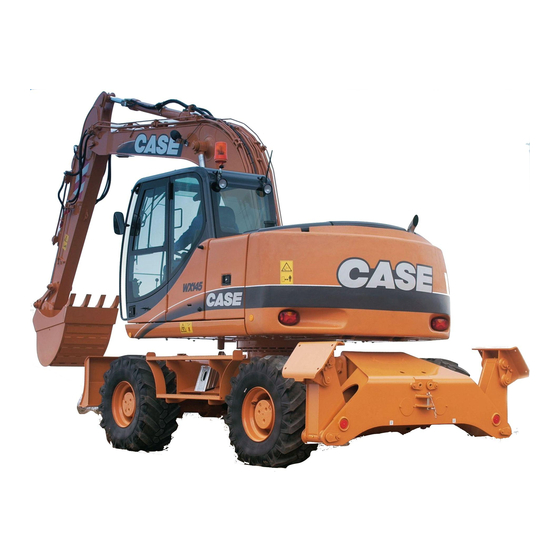

Case WX145 Operator's Manual

Introduction, Safety, Plates and Decals

Controls and Instruments

Operating the Machine

Supplies and Service Chart

Troubleshooting

Storage

Attachments

Alphabetical Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Case WX145

Summary of Contents for Case WX145
