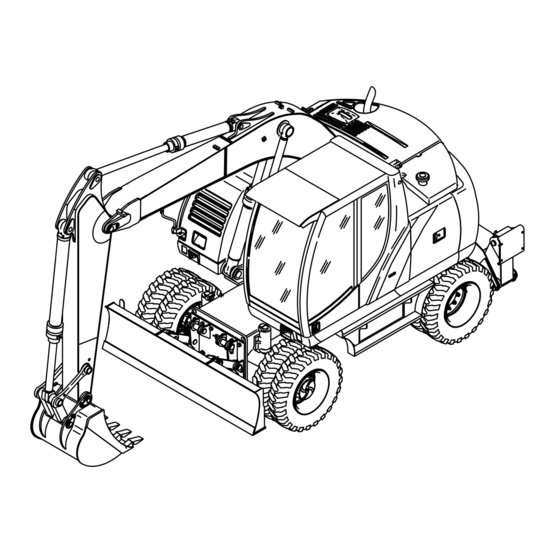

Case WX185 Operator's Manual

Case WX185 Operator's Manual

Wheeled excavators stage iiia

Hide thumbs Also See for WX185:

Operator's manual (375 pages)

,

Operator's manual (32 pages)

,

Operator's manual (31 pages)

Table Of Contents

page of 324

/ 324
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Escavatori Gommati Stage IIIA

Wheeled Excavators Stage IIIA

Radbagger Stage IIIA

Operatora Rokasgrāmata

Přírǔcka Pro Obsluhu

Utilisation et Entretien

Naudojimo Instrukcija

Manual do Operador

Instrukcja ObsŁugi

Empleo Y Cuidado

Instruktionsbog

Kayttöohjekirja

Uso e Manutenzione

Operator's Manual

Betriebsanleitung

Druckschrift Nr. 84285661

Deutsch 01/10 ORIGINALBETRIEBSANLEITUNG

English 01/10 ORIGINAL INSTRUCTIONS

Italiano 01/10 ISTRUZIONI ORIGINALI

WX145

WX165

WX185

Print No. 87590064

Print No. 87590065

Print No. 87590069

Print No. 87590066

Print No. 87590056

Print No. 87590058

Print No. 87590054

Print No. 87590055

Print No. 87590060

1st edition

1st edition

1st edition

1st edition

1st edition

1st edition

1st edition

1st edition

1st edition

Stampato N. 84285663

Print No. 84285662

Portuguese 01/08

Lithuanian 03/08

Lithuanian 03/08

Spanish 06/07

French 06/07

Finnish 04/08

Danish 03/08

Poland 09/07

Czech 09/07

1a edizione

1st edition

1. Ausgabe

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the WX185 and is the answer not in the manual?

Questions and answers

Сергей

March 23, 2025

не включается транспортная передача на КЕЙС-185

0

1 comments:

Mr. Anderson

March 23, 2025

The transmission on the Case WX185 may not be engaging due to the service brake or parking brake being applied. If the service brake is engaged, the machine cannot start. Additionally, if both the service brake and parking brake are applied, and the travel direction is selected while pressing the travel pedal, the display will issue a warning. To resolve this, ensure that both brakes are released before attempting to engage the transmission.

This answer is automatically generated

0

Summary of Contents for Case WX185

Page 1 WX145 WX165 WX185 Wheeled Excavators Stage IIIA Escavatori Gommati Stage IIIA Radbagger Stage IIIA Operatora Rokasgrāmata Přírǔcka Pro Obsluhu Utilisation et Entretien Naudojimo Instrukcija Manual do Operador Instrukcja ObsŁugi Empleo Y Cuidado Instruktionsbog Kayttöohjekirja Uso e Manutenzione Operator’s Manual Betriebsanleitung Print No.
Page 2 Copyright ©...
Page 3 Copyright © WX145 WX165 WX185 Wheeled Excavators Stage IIIA Operator’s Manual Print no. 84285662 Edition English 01/10 ORIGINAL INSTRUCTIONS...
Page 4 Copyright © SUMMARY OF SECTIONS 1 - INTRODUCTION, SAFETY, PLATES AND DECALS 2 - CONTROLS AND INSTRUMENTS 3 - OPERATING THE MACHINE 4 - SUPPLIES AND SERVICE CHART 5 - STORAGE 6 - ACCESSORIES 7 - DATA AND TECHNICAL SPECIFICATIONS 8 - ALPHABETICAL INDEX ATTACHMENT 1 - “EC”...
Page 5 Copyright © INDEX SECTION 1 INTRODUCTION, SAFETY, PLATES AND DECALS ................. 1-1 FOREWORD.............................. 1-1 DESIGNATED USE ..........................1-1 SAFETY INSTRUCTIONS ......................... 1-3 GENERAL SAFETY INSTRUCTIONS....................1-3 DESIGNATED USE ..........................1-4 NOISE LEVELS ............................1-5 LEVEL OF VIBRATIONS TRANSMITTED TO THE OPERATOR ............1-6 BEFORE OPERATING THE MACHINE ....................
Page 6 Copyright © INDEX TIME ..............................2-21 UNITS ..............................2-24 SYMBOLS ............................2-26 STARTER SWITCH ..........................2-27 RADIO ..............................2-29 CAB ................................. 2-30 ENTRY AND EXIT ..........................2-30 DOOR OPENING ..........................2-30 DOOR CLOSING ..........................2-31 SIDE WINDOW............................. 2-31 FRONT WINDOW..........................2-32 EMERGENCY EXIT..........................
Page 7 Copyright © INDEX TRAVEL WITH LOAD APPLIED TO CRANING HOOK................ 3-23 FLOATING AXLE BLOCKING AND UNBLOCKING................3-24 WORKING OPERATION ......................... 3-25 SAFETY INSTRUCTIONS ........................3-25 BEFORE BEGINNING THE WORK...................... 3-26 HOLDING AND RELEASING THE UPPER STRUCTURE SLEW ............3-31 POWER BOOST FUNCTION - POWER BOOST................. 3-37 LEVELLING MODE ..........................
Page 8 Copyright © INDEX AIR FILTER - CLEANING ........................4-24 AIR INTAKE LINE - CHECK ......................... 4-26 MULTI-COOLER - CLEANING ......................4-26 FUEL SYSTEM - AIR BLEEDING AND WATER DRAINING ............... 4-27 FUEL FILTER/S - WATER DRAINING ....................4-30 SLEWING GEARBOX - OIL LEVEL ..................... 4-31 BATTERIES - LEVEL - CHARGE CHECK AND CLAMPS TIGHTENING..........
Page 9 Copyright © INDEX SERVICE BRAKE - AIR BLEEDING..................... 4-73 STEERING ADJUSTMENT ........................4-73 AXLE FLOATING LOCKING CYLINDERS - AIR BLEEDING............... 4-74 FUSES - REPLACEMENT........................4-75 BULBS - REPLACEMENT ........................4-78 BATTERIES - REPLACEMENT......................4-82 BUCKETS TEETH - CHANGE......................4-83 SECTION 5 STORAGE ..............................
Page 10 Copyright © INDEX SWITCHING ON AND OFF ........................6-33 FUEL TRANSFER PUMP ........................6-34 FRONT CAB PROTECTION........................6-36 BLADE PROTECTION..........................6-36 TRANSPORT BRACKET FOR CLAMSHELL..................6-36 CENTRALIZED LUBRICATION....................... 6-37 SAFETY INSTRUCTIONS........................6-37 OPERATION............................6-37 SECTION 7 DATA AND TECHNICAL SPECIFICATIONS ....................7-1 DIMENSIONS - OPERATING WEIGHTS ....................
Page 11 Copyright © SECTION 1 FOREWORD, SAFETY, PLATES AND DECALS FOREWORD The wheeled excavators WX145 - WX165 - WX185 are operation hydraulic machines. They essentially consist in a wheeled undercarriage on which a slewing bearing is mounted, which is coupled to the upper frame.
Page 12 Copyright © SECTION 1 The current Operator’s Manual is the user’s guide SPARE PARTS for correct run-in, use and maintenance of the The “non-genuine” spare parts have not been con- machine. trolled and authorized by the Manufacturer. The Carefully read this Operator’s Manual and store it in assembly and/or use of such products may have the cab for quick location and reference.
Page 13 CAUTION It warns the operator of a possible hazard of machine damage in case he does not follow a determined procedure. Your safety and that of people around you depends on you. It is essential that you understand this man- ual for the correct operation, inspection, lubrication and maintenance of this machine.
Page 14 Copyright © SECTION 1 NOISE LEVELS Sound power level (acoustic external) LWA: WX 145 models: 101 dB (A) WX 165 models: 102 dB (A) WX 185 models: 103 dB (A) Sound power level guaranteed (1), determined in compliance with European standard 2000/14/EC. Sound pressure level in the operator’s seat (acoustic internal) LpA:...
Page 15 Copyright © FOREWORD, SAFETY, PLATES AND DECALS LEVEL OF VIBRATIONS TRANSMITTED TO THE OPERATOR The vibration level transmitted to the operator This machine is equipped with an operator’s seat depends mainly on the conditions of the soil where which meets the criteria of EN ISO 7096:2008 rep- the machine is being operated and on the use con- resenting vertical vibration input under severe but ditions of the machine and its equipment.
Page 16 Copyright © SECTION 1 OPERATOR PROTECTIVE STRUCTURE WARNING Your machine is equipped with an operator Protec- tive Structure, such as: a Rollover Protective Struc- ture (ROPS) and Falling Object Protective Structure (FOPS). The Protective Structure is a special safety compo- nent of your machine.
Page 17 - respirator or filter mask. Wear close fitting clothing and safety equipment appropriate for the job. Do not leave anything to the case. Avoid wearing loose clothing, jewellery, or other items that can catch on control levers or other parts of the machine.
Page 18 Copyright © SECTION 1 OPERATING THE MACHINE USE HANDHOLDS AND STEPS When you get on and off the machine, always main- tain a three-point contact with the steps and hand- rails and face the machine. Do not use any controls as hand-holds. Never jump on or off the machine.
Page 19 Copyright © FOREWORD, SAFETY, PLATES AND DECALS AVOID INJURY FROM REVERSE TRAVEL AND SWING ACCIDENTS To avoid accidents due to swinging or reverse travel check the area around the machine. Before reverse travel or swinging the machine, make sure that nobody is present within its working reach.
Page 20 Copyright © SECTION 1 TRAVEL MACHINE SIDES The terms “right”, “left”, “front” and “rear”, when used in this manual, indicate the sides of the machine as seen from the operator’s seat. 1. Front side - forward 2. Rear side - backward 3.
Page 21 Copyright © FOREWORD, SAFETY, PLATES AND DECALS TRAVELLING ON PUBLIC ROADS WARNING Road circulation (on public roads) is ruled by special pro- visions varying from country to country. Check before- hand with local authorities for circulation provisions. Transfer on public roads (each time you leave a yard) is allowed only with an approved configuration, com- plying with dimensions (A), (B) as shown on the tables.
Page 22 Copyright © SECTION 1 WX 185 MONOBOOM 2800 2400 2000 Dipper (in) (110.24) (94.98) (78.73) 3850 3800 3800 A Maximum height (in) (151.57) (149.60) (149.60) 4750 4750 4850 B Frontal off-set (in) (187.00) (187.00) (190.94) PLACING BOOM 2400 2000 Dipper (in) (94.98) (78.73)
Page 23 Copyright © FOREWORD, SAFETY, PLATES AND DECALS MACHINE LAY-OUT Assemble the overall lights on the dipper. Connect the overall lights to outer socket, installed on the frame. Raise the stabilizer blade completely. Attach the reflective strips on the stabilizer blade. Raise the stabilizers completely (optional).
Page 24 Copyright © SECTION 1 JOB SITE OPERATION INSPECT THE JOB SITE Warn persons in the immediate vicinity by sounding the horn before starting work. Stop working if any- one is staying in the hazard range of the machine. Work with the machine only when it is standing on a level ground.
Page 25 Copyright © FOREWORD, SAFETY, PLATES AND DECALS PARKING THE MACHINE Park machine on flat and firm surface. Return the machine to basic position. Lock the upper structure. Place the attachment down on the ground. Engage the parking brake. Shut off the engine. CAUTION Do not shut off the engine when running at full speed, but let it run idle for some minutes to cool it...
Page 26 Copyright © SECTION 1 LOADING THE MACHINE ON A TRAILER WITH FRONT ATTACHMENT INSTALLED Travel forward along the ramp with the front attach- ment at the front. Once the ramp top has been reached, and before the machine starts falling forward onto the flatbed (shifting its centre of gravity), rest the bucket flat onto the trailer flatbed (the angle between the booms should be 90°...
Page 27 Copyright © FOREWORD, SAFETY, PLATES AND DECALS MACHINE TRANSPORT In case of transport on public roads, ask for relevant permissions to competent authorities. In case of transport by railway, ask for permission and agree the loading and transport of the excava- tor with the competent railway authorities.
Page 28 Copyright © SECTION 1 UNLOADING THE MACHINE FROM A TRAILER Unloading procedure may vary dependent upon whether the front attachment is installed or not. WITH FRONT ATTACHMENT INSTALLED Travel slowly in reverse along the flatbed. Once at the flatbed end and before the machine starts falling forward onto the ramp (shifting the position of its centre of gravity), rest the bucket flat side onto the ground (the angle between the booms...
Page 29 Copyright © FOREWORD, SAFETY, PLATES AND DECALS MAINTENANCE AND ADJUSTMENTS Do not carry out any service operation until you have read and understood the instructions and warnings given in this manual. Observe the adjusting, maintenance and inspection activities and intervals set out in the operating instructions, including information on the replace- ment of parts and equipment as this service con- cerns exclusively the qualified personnel.
Page 30 Copyright © SECTION 1 PROTECT AGAINST NOISE PREPARE FOR EMERGENCIES Prolonged exposure to loud noise can cause impair- ment or loss of hearing. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against constant or uncomfortably loud noise. AVOID HIGH PRESSURE FLUIDS Escaping fluid under pressure can penetrate the skin causing serious injury.
Page 31 Copyright © FOREWORD, SAFETY, PLATES AND DECALS CHECK TYRES A burst tyre can cause serious injury. Regularly check the condition of tyres and always observe the inflation pressures defined in accordance with the type of tyre and ground concerned. When checking tyre pressures or during an inflation operation, never stay facing the tyre but always fac- ing the tread surface.
Page 32 Copyright © SECTION 1 PREVENTION OF FIRE OR EXPLOSIONS Be prepared if a fire starts or an accident occurs. Keep the first-aid kit and fire extinguisher on hand. Thoroughly read and understand the label attached to the fire extinguisher to use it properly. Establish emergency priority procedures to cope with fires and accidents.
Page 33 Copyright © FOREWORD, SAFETY, PLATES AND DECALS PREVENTION OF BURNS Battery electrolyte causes severe burns. The battery contains sulphuric acid. Avoid any contact with the skin, eyes or clothing. Antidote: - EXTERNAL: rinse well with water, removing any soiled clothing. - INTERNAL: avoid vomiting.
Page 34 Copyright © SECTION 1 PRECAUTIONS FOR WASTE DISPOSAL Improperly disposing of waste can threaten the envi- ronment. Each country has its own Regulations on this sub- ject. It is therefore advisable to prepare suitable con- tainers to collect and store momentarily all solid and fluid materials that must not be scattered in the envi- ronment to avoid pollution.
Page 35 Copyright © FOREWORD, SAFETY, PLATES AND DECALS MAIN COMPONENTS PLACING BOOM ATTACHMENT 1. Bucket 15. Fuel tank 2. Bucket cylinder 16. Counterweight 3. Dipper 17. Stabilizers 4. Batteries 18. Rear wheels 5. Dipper cylinder 19. Rear axle 6. Placing boom 20.
Page 36 Copyright © SECTION 1 MONOBOOM ATTACHMENT 1. Bucket 15. Counterweight 2. Bucket cylinder 16. Stabilizers 3. Dipper 17. Rear wheels 4. Batteries 18. Rear axle 5. Dipper cylinder 19. Cab 6. Monoboom 20. Stair and storage box 7. Cooler 21. Front wheels 8.
Page 37 Copyright © FOREWORD, SAFETY, PLATES AND DECALS UNDERCARRIAGE The undercarriage of the hydraulic excavator is used as a stable base and for travelling. The undercarriage is moreover equipped with com- ponents permitting stabilization of the machine dur- ing working operations, such as the levelling blade and the stabilizers.
Page 38 Copyright © SECTION 1 ELECTRICAL SYSTEM The electrical system operates on 24 V. 12 V are provided by an electronic transformer. Electronic modules (Power Control System) ensure that the available engine power is converted in the best possible way into hydraulic performance. WORKING ATTACHMENT The working attachment is composed of positioning, dipper and boom, bucket link and bucket.
Page 39 The machine plate is attached frontally on the right side of the undercarriage. 1. Machine Type/ Model and Category........WX145(*) (Hydraulic Excavator) (*) or WX165, WX185 2. Serial Number 3. Maximum admissible axle loads ENGINE The plate with the engine number is attached on the engine crankcase at pumps side.
Page 40 Copyright © SECTION 1 The plate is attached to the inner right cabin side on the upper beam. 1. Serial number PUMP The plate is applied on the pump body. 1. Model 2. Serial number AXLES The plate is applied on the axle body. 1.
Page 41 Copyright © FOREWORD, SAFETY, PLATES AND DECALS CONTROL VALVE The plate is applied on the control valve. 1. Model 2. Serial number DECALS WARNING An illegible or missing decal can have far-reaching consequences. Check them everyday. WARNING Make sure that all decals are perfectly legible. Clean them regularly, replace them with new decals if they are damaged, missing or painted over.
Page 42 Copyright © SECTION 1 POSITION OF DECALS MONOBOOM ATTACHMENT 1-32...
Page 43 Copyright © FOREWORD, SAFETY, PLATES AND DECALS PLACING BOOM ATTACHMENT 1-33...
Page 44 Copyright © SECTION 1 Frontal stay dangerous Nobody must stay in front of machine during the working stages. Danger of injuries caused by the working attach- ment in motion. Move the attachment only after ensuring that nobody is staying in the area of dan- ger.
Page 45 Hydraulic oil tank Read this manual carefully to avoid the risk of oil under pressure inside of the tank in case of service. Fuel tank This decal indicates the fuel tank. Make sure that the tank bearing this decal contains fuel only.
Page 46 Copyright © SECTION 1 Danger electric current Risk of injury from electric current. Keep the follow- ing distances from live wires: up to 1000 V (1 kV) = 1 metre (3.28 ft), from 1 kV to 110 kV = 3 metres (9.84 ft), from 110 kV to 220 kV = 4 metres (13.12 ft), from 220 kV to 380 kV = 5 metres (16.40 ft), unknown voltage = 5 metres (16.40 ft).
Page 47 Copyright © FOREWORD, SAFETY, PLATES AND DECALS Danger for moving parts Risk of injury from hot or rotating parts in the engine compartment. Open the engine hood only with engine shut off. Parking brake Emergency operation for slewing drive and emer- gency brake.
Page 48 Copyright © SECTION 1 Working equipment movement This decal indicates that the operator must be care- ful while moving the working attachment. Maintenance in progress tag It is compulsory, for maintenance operators, to apply a card warning about incomplete efficiency of the machine and the presence of personnel performing maintenance in unseen positions.
Page 49 Copyright © SECTION 2 CONTROLS AND INSTRUMENTS SWITCHES AND PUSH-BUTTONS F34384N...
Page 50 Copyright © SECTION 2 Ref. Description Operation Symbol Rotary knob/ Activates the blower and has 3-speed stages: 1, 2, Blower selector Air conditioner White button Activates/deactivates the air recirculation. (optional) Air conditioner Activation/deactivation of air conditioner (ON/ Blue button (optional) OFF).
Page 51 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Push-button with two lights and three engagement positions. Left light on: brake permanently locked. Push-button Parking brake Left light off: brake permanently released. Right light on: automatic mode (in 1st gear only). The brake releases when the travel pedal is pressed.
Page 52 Copyright © SECTION 2 Ref. Description Operation Symbol Engine speed increase up to a maximum speed in Push-button Engine rpm 7 steps (7 power stages with fixed speed levels). Push-button Engine rpm Lowering of engine rpm up to idle run in 7 stages. Activation/deactivation of automatic engine speed reduction.
Page 53 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Selects the road travel mode. Ensure that the safety lever is placed to position “0”. Push-button Road travel Activation: press the button face with the symbol (lamp lights up). Deactivation: press the button face with no symbol (lamp turns off).
Page 54 Copyright © SECTION 2 Ref. Description Operation Symbol Activation: press the button face with no symbol. Hydraulic Shears Deactivation: press the button face with the (optional) symbol. Switch Activation: press the button face with no symbol. Frequency switching Deactivation: press the button face with the (optional) symbol.
Page 55 Some troubles occur to the electronic control, but they do not impair the operator’s and machine safety seriously. Triple sound in case of control error. Single sound, by engaging the forward speed. Double sound, by engaging the reverse travel. Long single sound, by setting to idle the travel direc- tion.
Page 56 Copyright © SECTION 2 CONTROLS AND PEDALS Ref. Description Operation Symbol By shifting the lever to the right - the upper structure slews right. Slewing By shifting the lever to the left - the upper structure slews left. Left hydraulic control lever By shifting the lever forward - the dipper extends - the blade/stabilizers lower.
Page 57 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Clamshell Push-button Left clamshell rotation. rotation (optional) The controls for dipper/blade and stabilizers switch Blade and Push-button over. (With blade/stabilizers activated the buzzer stabilizers sounds). With placing boom: extension/retraction of boom adjusting cylinder.
Page 58 Copyright © SECTION 2 Ref. Description Operation Symbol Lever Turn signal light Right signal light activation. Push-button Flickering lights Flashing lights activation. Steering wheel and Steering Transfers the steering motion to the steering axle. column It locks the steering column to required inclination: Locking of the Lever by pushing downward - the column can be moved;...
Page 59 Copyright © CONTROLS AND INSTRUMENTS MULTI-FUNCTION DISPLAY Ref. Description Operation Symbol This light turns on when the forward Lamp Travel direction travel is engaged. It flashes when the left turn signal is Lamp Turn signal light activated. Lamp Preheating It turns on during preheating. It turns on blue, when the main Lamp Main beams...
Page 60 Copyright © SECTION 2 Ref. Description Operation Symbol It turns on when the reverse travel is Lamp Travel direction activated. Time in hours and minutes/machine working hours display/fuel level indication. Time/Hourmeter/ Indication above the cross line = Fuel level Level OK 121 HOURS Indication under the cross line = top up fuel.
Page 61 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Setting of hydraulic oil pressure and of volumetric flow for the following attachments: - 4 different hydraulic hammers; - 4 different rotary cutters; ATTACHMENTS - 4 different hydraulic shears. Further options can be activated by the dealer for use by the operator: - degree of damping for equipment Attachments...
Page 62 Copyright © SECTION 2 Ref. Description Operation Symbol Display of maintenance intervals (dis- abled in normal machine operation). Calibration machine functions (reserved for Service Department). Maintenance MAINTENANCE Display Faults occurred are stored in detail by electronic control unit. Faults This menu is reserved for our Service and disabled in normal machine FAULTS RETRIEVAL operation (password protected).
Page 63 Copyright © CONTROLS AND INSTRUMENTS Ref. Description Operation Symbol Lights up red, when the safety of per- sons and the functioning of main assemblies of the machine is endan- gered: When a red fault occurs, a fault number is displayed and an intermit- Lamp Fault message tent buzzer warning is sounded in...
Page 64 Copyright © SECTION 2 The multi-function display handles all important set- tings, controls and functions of the machine. The display can operate in three different modes: - operating mode; - main menu; 969 HOURS - set mode. The arrow keys are basically used for scrolling through the menus, whereas the “set”...
Page 65 Copyright © CONTROLS AND INSTRUMENTS MAIN MENU Pressing an arrow button in the operating mode calls up the main menu. The arrow keys equally per- mit access to the various sub-menus: - attachments; - operation hours; - code; - display settings; CODE - fault’s retrieval;...
Page 66 Copyright © SECTION 2 DISPLAY SETTING, MAIN MENU In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). By depressing the button with the upward arrow (1) you return to main menu. 969 HOURS With downward arrow button (3) you can recall fol- lowing sub-menus:...
Page 67 Copyright © CONTROLS AND INSTRUMENTS CONTRAST Under poor light conditions, strong solar light of extreme cold, the display contrast may need to be modified. In this way the readability of the informa- tions displayed is ensured. In operating mode depress repeatedly the arrow button, until on main menu appears “display”...
Page 68 Copyright © SECTION 2 BRIGHTNESS Under poor light conditions, strong solar light or extreme cold, the display contrast may need to be modified. In this way the readability of the informa- tions displayed is ensured. In operating mode depress repeatedly the arrow button, until on main menu appears “display”...
Page 69 For different reasons time may need to be set in the electronic control unit and visualized on the display (for instance in case of legal time change). In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background.
Page 70 Copyright © SECTION 2 Save Save changes? changes? DATE DATE DATE DATE DATE Data input Data input Data input Data input DATE F34019 Indication of the 12 hours Depress repeatedly the arrow keys until the indica- Now you are asked to memorize the settings. By tion “12 h”...
Page 71 Copyright © CONTROLS AND INSTRUMENTS Indication of the 24 hours Date Depress repeatedly the arrow keys until the indica- Depress repeatedly the arrow buttons until the indi- tion “24 h” appears on grey background. Confirm cation of the date appears on grey background. the setting with “set”...
Page 72 Copyright © SECTION 2 UNITS In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). Depress repeatedly the button with downward arrow (3), until the unit symbol appears on grey back- ground (10).
Page 73 Copyright © CONTROLS AND INSTRUMENTS LANGUAGE In operating mode depress repeatedly the arrow button, until on main menu appears “display” on grey background. Confirm with “set” button (2). Depress repeatedly button with downward arrow (3), until the language symbol appears on grey background (13).
Page 74 Copyright © SECTION 2 SYMBOLS Attachments Machine Service hours Code Display Faults Informations Maintenance Contrast Brightness Time Units Languages Temperature Speed Pressure Displacement Road travel Hammer Rotary cutter Shears Slew power limitation Damping Digging Stabilizer or blade Levelling Craning hook lowering Stabilizer or blade Stabilizer or blade...
Page 75 Copyright © CONTROLS AND INSTRUMENTS STARTER SWITCH WARNING Before starting the engine, make sure you are fully aware of the location and the function of each con- trol. Operating the controls wrongly can cause seri- ous physical injury. The ignition key (1) activates following functions: 0 = No electric user is under voltage, the engine is shut off.
Page 76 Copyright © SECTION 2 Time in hours and minutes (A) engine power level (C). The temperature of coolant (D) and of hydraulic oil (E) is displayed. All screens show the fuel level graphically. All functions are input by the electronics as per table: Operation Situation after ignition to ON...
Page 77 Copyright © CONTROLS AND INSTRUMENTS RADIO 1. Preselection button 1 8. Display 2. Preselection button 2 9. Frequency search (short pressure) and setting SAM (long pressure) 3. Preselection button 3 10. Band selection (short pressure) and automatic 4. Preselection button 4 saving (long pressure) 5.
Page 78 Copyright © SECTION 2 ENTRY AND EXIT Use only the steps, platforms and grab handles (1) provided for entering and leaving the cab. Always face the machine when climbing or dis- mounting. WARNING Never use the steering wheel or the control levers to help yourself entering or leaving the operator’s compartment.
Page 79 Copyright © CONTROLS AND INSTRUMENTS Opening the door from inside To open the door from inside, push lever (3) forward. DOOR CLOSING Unlock the opened, locked-in door by pushing down the lever (1). Grab the handle (2) on the upper side of the door frame and close the door.
Page 80 Copyright © SECTION 2 FRONT WINDOW The front window can slide in the back of the cabin under the roof. Roll up the sunblind. Bring the screen wiper to basic position (fully to the left). Grab both handles (2) at the front window (left and right side) and push lock levers (1) forwards.
Page 81 (e.g. in case of an accident). To break the glass panes in case of danger, use the little hammer (1) on the rear wall behind the opera- tor’s seat on the left.
Page 82 Copyright © SECTION 2 FLOODLAMPS Front working floodlamps activation Depress the blank face of switch (1). The working floodlamps on top of the cab and on the working attachment are on. Front working floodlamps deactivation Depress the symbol face of the switch (1). The working floodlamps on top of the cab and on the working attachment are off.
Page 83 Copyright © CONTROLS AND INSTRUMENTS DOCUMENTS STORAGE BOX, FIRST- AID KIT, WARNING TRIANGLE AND FIRE-EXTINGUISHER The operator’s seat (1) is equipped behind with a storing compartment for documents (2) where to stow the Operator’s Manual. This compartment can also stow a fire-extinguisher, a first aid-kit and the warning triangle.
Page 84 Copyright © SECTION 2 CAB LIGHTING The cab interior lighting is switched on and off with the switch (1). The lighting can be switched on even if the ignition key has been pulled out from the cylinder. If the light remains accidentally alight for a longer period (all over the week-end), the batteries may be unnecessarily discharged.
Page 85 Copyright © CONTROLS AND INSTRUMENTS STEERING COLUMN Do not adjust the steering column during travel. Before adjusting the steering column: - stop the machine; - position the button of travel direction to idle; - activate the parking brake. The angle of the steering column can be adjusted to suit the height and posture of the operator.
Page 86 Copyright © SECTION 2 VENTILATION, HEATING AND AIR CONDITIONING (OPTIONAL) VENTILATION (air from outside) WITH ENGINE RUNNING Use handle (1) to activate and to adjust the blower speed. WITH ENGINE SHUT OFF Turn first of all the ignition key (2) to position “I”. Now it is possible to activate the knob (1).
Page 87 Copyright © CONTROLS AND INSTRUMENTS Open the two air-flow vents (5) for the front windows as wide as possible and direct onto the front win- dows. Open the air-flow vents (6) for the side window as wide as possible and direct onto the side window. Open the air-flow vents (7) of the rear window as wide as possible and direct onto the rear window.
Page 88 Copyright © SECTION 2 HEATING The engine coolant flows through the heat exchanger of the heating system. The heating out- put is therefore also dependent on the engine tem- perature. The full heating output is not achieved until the engine has run up to operating tempera- ture.
Page 89 Copyright © CONTROLS AND INSTRUMENTS AIR CONDITIONING (OPTIONAL) During summer time, when the air conditioner has cooled down the cab temperature, the air inside of it can further be cooled by activating the air recircula- tion. Also during winter it is possible to activate the air conditioner in order to dry the cabin air.
Page 90 Copyright © SECTION 2 CONDITIONS GOOD COOLING REFRIGERATING AGENT R 134a INTENSITY If handled in a wrong manner the refrigerating agent The air intakes ports are on the rear of the cab and R 134a can be dangerous. Therefore it is important should neither be covered nor contaminated.
Page 91 Copyright © CONTROLS AND INSTRUMENTS SERVICE AND PARKING BRAKES SERVICE BRAKE The service brake is composed of four multi-plates brakes integrated in the wheel hubs. The brake is operated hydraulically. To ensure the braking function at all times, the brak- ing system is equipped with hydraulic pressure accumulators which are permanently monitored.
Page 92 Only in emergency case, for instance if the service brake fails, you can activate the parking brake while the machine is still moving. In this case the braking effect is immediate, and the wheels lock! PARKING BRAKE ACTIVATION The parking brake is engaged by keeping the button (1) pressed until the left lamp lights up.
Page 93 Copyright © CONTROLS AND INSTRUMENTS OPERATOR’S SEAT To operate the machine correctly with maximum effi- ciency and comfort, the seat should be correctly adjusted to suit the weight and height of the opera- tor. WARNING Before using the controls, make sure that the seat is adjusted and positioned correctly.
Page 94 Copyright © SECTION 2 FORE-AND-AFT ADJUSTMENT OF SEAT WITHOUT CONSOLES Pull locking lever (3) upwards, shift seat to required position and release locking lever. ADJUSTING THE SUSPENSION/SEAT HEIGHT Suspension The operator’s weight should be adjusted upwards with the machine stationary and the seat loaded by brief actuation of the handle (4).
Page 95 Copyright © CONTROLS AND INSTRUMENTS ARMRESTS ANGLE The angle of the slope can be changed in the lowest position irrespective of the backrest angle, using the integrated handwheel (8). Adjustment range +10° up to -30°. ADJUSTING THE LONGITUDINAL - HORIZONTAL SUSPENSION Unlocking Move lever (9) forward.
Page 96 Copyright © SECTION 2 ADJUSTING THE MECHANICAL LUMBAR SUPPORT Adjusting the mechanical lumbar support with the hand wheel (12). SEAT HEATING Two electric heating elements (seat and backrest) are installed in the operator’s seat. The maximum heating capacity is preset. The tem- perature is thermostat-controlled.
Page 97 In this way your body could get injured in case of acci- dent. The operator’s seat is fitted with a lap-type seat belt. The belt tensioning roller is incorporated on the left side of the seat.
Page 98 Copyright © SECTION 2 NOTES: 2-50...
Page 99 Copyright © SECTION 3 OPERATING THE MACHINE GENERAL INSTRUCTIONS BEFORE OPERATING THE MACHINE OPERATING THE MACHINE WARNING WARNING Read and assimilate the instructions and warnings Check that all the controls and all the safety shown in this manual before operating the devices operate correctly in a safe, clear area machine.
Page 100 Copyright © SECTION 3 RUNNING-IN PERIOD - Dust, smoke or fog can reduce visibility and cause an accident. Stop or slow down the machine until Your machine will last longer and give better and normal visibility is restored. more economical performance if you pay particular - If there is any operating problem, immediately attention to the engine during the first twenty hours lower the loader equipment to the ground, engage...
Page 101 Copyright © OPERATING THE MACHINE AFTER DAILY OPERATION - PARKING Secure the machine: - Carry out daily service operations. - Park the machine. - Park machine on dry and level ground. Place the working equipment on a stand or on the ground. - Return the machine to basic position.
Page 102 Copyright © SECTION 3 START-UP START-UP IMMOBILIZER This machine is equipped with an electronic immobi- lizer as a standard feature. When activated, the immobilizer prevents unauthorized starting of the machine. The immobilizer is not active on delivery from the factory. It can be activated by the customer when the machine is handed over.
Page 103 Copyright © OPERATING THE MACHINE SAVE CHANGES? INPUT CODE NEW CODE WRONG CODE INPUT CODE INPUT NEW CODE PRESS ANY KEY INPUT NEW CODE F34081 key = ON ERROR System MESSAGE check ok? • Engine does not start. • Set ignition key to OFF. •...
Page 104 Copyright © SECTION 3 CODE ACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “CODE” on grey background. By means of the arrow buttons you can select “closed-lock” symbol and confirm the selection with “set” button. CODE DEACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “CODE”...
Page 105 Copyright © OPERATING THE MACHINE IMMOBILIZER, ACTIVATING THE CODE TIMER FUNCTION This menu can be used for setting a time after which By means of the arrow buttons you can activate the code is to be activated. The machine can thus now the clock symbol and confirm the selection with be put back into operation after a pause without the “set”...
Page 106 Copyright © SECTION 3 CODE Active code after: Save changes? Data input Active code after: minimum = 1 minute maximum = 6 hours F34250...
Page 107 Copyright © OPERATING THE MACHINE START-UP The following text describes starting of the machine without entering a number code. Disconnect the pilot control by lifting the safety lever (1) to position “0”. Set the travel direction to neutral with push-button (2).
Page 108 Copyright © SECTION 3 ENGINE DOES NOT START If the engine does not start, reset the ignition key to position “0” and repeat the start-up operation. During this operation hold the key continuously to start-up position for at least 30 seconds. Between one start trial and the other observe a pause of 2 minutes.
Page 109 Copyright © OPERATING THE MACHINE ASSISTED STARTING (JUMP- STARTING) CAUTION Keep any potential ignition sources, such as unshielded lights or burning cigarettes, away from the batteries. Battery gases are readily flammable. A high current flows on connection of the earthing cable.
Page 110 Copyright © SECTION 3 CONNECTING THE JUMPER CABLES Connect the red jumper cable to the positive clamp of the discharged battery (1) and then to the positive clamp of the booster battery (2). Connect the black jumper cable first to the negative clamp of the booster battery (3) and then to a bright- metal point on the receiving machine (4).
Page 111 Copyright © OPERATING THE MACHINE ENGINE SHUT OFF WARNING Do not shut off the engine when running at full speed, but let it run idle for three/five minutes to cool it down. Place the working attachment on the ground. By means of push-button Low Idle (1) bring the engine to idle run.
Page 112 Copyright © SECTION 3 TRAVEL BEFORE STARTING THE TRAVEL Remove any soil, mud, snow, ice, grease and oil from your working footwear. You might otherwise slip from steps and pedals and thus initiate inadvert- ent movements. Raise the working attachment only to such an extent that the machine can pass under overhead power lines without risk.
Page 113 Copyright © OPERATING THE MACHINE The machine is in its basic position when the cab (1) is over the left pair of wheels of the steering axle (2). A = travelling forwards: the wheels of the steered axle are in front. B = travelling backwards: the wheels of the rigid axle are in front.
Page 114 Copyright © SECTION 3 BASIC SETTING According to the operation requirements and condi- tions, to the pedals and control levers reactions for working and travel movements, you can select up to four different basic settings. Following setting are possible: - (A) - SPORTIVE - (B) - CLASSIC - (C) - COMFORT - (D) - EVOLUTION...
Page 115 Copyright © OPERATING THE MACHINE In operating mode depress repeatedly the arrow button, until on main menu appears “MACHINE” inside of a frame. Confirm with “set” button. Depress the arrow buttons repeatedly until the bar is on “BASIC SETTING”. Confirm with “set” button. To get back to “MACHINE”...
Page 116 Copyright © SECTION 3 TRAVEL Raise the blade and the stabilizers completely. Before starting the travel, perform a visual inspec- tion of the machine. Lock the upper structure with the stud (1). Apply the upper structure holding brake, by depressing button (2), until the left lamp of the but- ton lights up.
Page 117 Copyright © OPERATING THE MACHINE Depressing button (4): selection of forward travel direction, shown by lamp (A) on the display. A single acoustic warning is sounded Depressing button (5): select forward travel direc- tion, shown by lamp (B) on the display. If you have to work at a particularly low speed, select the 1st speed (off-road travel) with push-but- ton (8) and than the creep speed with push-button...
Page 118 Copyright © SECTION 3 TRAVEL SCREEN DISPLAY By depressing the button for “Road travel” the dis- play shows and highlights the relevant symbol. F34443 F34099 3-20...
Page 119 Copyright © OPERATING THE MACHINE GEARBOX - GEAR CHANGE According to the machine operation kind, you can afford different operation types at gear change: - 1st speed: left light on button (1) lit and right light out; - 2nd speed: left light out and right light on; - automatic gearshift active: both lamps are out.
Page 120 Copyright © SECTION 3 OPERATION AND SPEED OF AUTOMATIC GEAR CHANGE During travel at 1st speed (left lamp on button (1) lit and right lamp out), the machine travels at low speed “Tortoise” up to 5 km/h (3.11 mph), then the automatic gear change engages and the speed switches over to 2nd gear.
Page 121 TRAVEL WITH LOAD APPLIED TO CRANING HOOK Turn the load toward travel direction. The flywheel must be placed in this case over the steering axle. Approach the load as near as possible to the earth and to the machine. Lock the upper structure with the stud (1).
Page 122 Copyright © SECTION 3 FLOATING AXLE BLOCKING AND UNBLOCKING The steered axle is suspended from the undercar- riage in such a way that it can float about the longi- tudinal axis of the machine (floating axle). This feature is an advantage when driving on uneven ter- rain.
Page 123 Copyright © OPERATING THE MACHINE WORKING OPERATION SAFETY INSTRUCTIONS Inspect the site for underground gas, power and water lines before starting work. Any damage to these lines is a life-threatening risk. Clean off any earth, mud, snow, ice, grease and oil from your working footwear before operating the machine.
Page 124 Copyright © SECTION 3 BEFORE BEGINNING THE WORK Every day, before setting the machine in operation, carry out daily maintenance. Enter the cab and seat on the operator’s seat. Carry out all start-up operations. With engine at service temperature, set the required rpm by means off push-button (1).
Page 125 Copyright © OPERATING THE MACHINE AUTOMATIC SPEED REDUCTION (AUTO IDLE) The speed reduction function (Auto Idle) automati- cally reduces the engine speed in no-load working conditions. The drive engine is throttled down to idling speed if work with the working equipment is interrupted for longer than 4 seconds.
Page 126 Copyright © SECTION 3 AUTO IDLE AUTO IDLE Not operating > for 10 seconds Power level adjustment AUTO IDLE Selection NOTE: the left side of illustration describes the behaviour of the machine when pressing auto idle button and machine is not working and has no load (NO LOAD CONDITION).
Page 127 Copyright © OPERATING THE MACHINE The selected power level is indicated on the display by dark bars representing the power stages (3). F34114 3-29...
Page 128 Copyright © SECTION 3 PILOT CONTROLS ACTIVATION/DEACTIVATION Perform the activation with following operations: Shift safety lever (1) to position “I”. Now the electrical pilot control is activated; the hydraulic control levers (2) and (3) as well as pedal (4) are operational. Deactivation is performed as following: Move the safety lever (1) to position “0”.
Page 129 Copyright © OPERATING THE MACHINE HOLDING AND RELEASING THE UPPER STRUCTURE SLEWING UPPER STRUCTURE HOLDING PIN Return the machine to basic position for travel, so that the holding pin (2) in the upper structure is set right above the holding bracket (3) on the undercar- riage.
Page 130 Copyright © SECTION 3 The status of the upper structure holding brake, if locked or released, is shown the lamp (5) in the dis- play. The locked and automatic mode are memorized and released mode is set to automatic mode after igni- tion was off.
Page 131 Copyright © OPERATING THE MACHINE Upper structure holding brake faults In case left or right lamp flashes or the button (4) flashes upper structure holding brake faults. Automatic mode may be not available. See mes- sages in the display. Upper structure holding brake, emergency acti-...
Page 132 Copyright © SECTION 3 UPPER STRUCTURE SLEWING Switch the upper structure holding brake into the automatic mode by depressing button (1) until lamp is lit up (this mode is selected automatically on engine start-up). Activate the pilot control by pushing forward the safety lever (3).
Page 133 Copyright © OPERATING THE MACHINE SLEWING POWER LIMITATION The hydraulic slewing power of the upper structure can be individually adapted to the working needs and to the conditions of use of the machine. In the working mode, depress repeatedly a arrow button until the background of “MACHINE”...
Page 134 The standard values may vary with the type of machine. When the slewing power limitation is on and active, the slewing power symbol is displayed in the lower left corner of the screen. In this case, observe the priority of the temporary symbols displayed. Save Save changes?
Page 135 Copyright © OPERATING THE MACHINE POWER BOOST FUNCTION - POWER BOOST The “Power boost function” is always automatically active in power levels 1 - 3 and in the travelling func- tion (travel pedal depressed). In the event of heavier loading, the hydraulic pres- sure for the working functions and for travelling is increased.
Page 136 Copyright © SECTION 3 AUTO POWER BOOST ACTIVATION In operating mode depress repeatedly the arrow button, until on main menu appears “MACHINE” on grey background. Depress the “set” button. Depress the arrow buttons repeatedly until the bar is on “Auto Power Boost” activates. Depress the “set” button.
Page 137 Copyright © OPERATING THE MACHINE LEVELLING MODE The “levelling” mode can be activated in the power levels 4 - 7. Depress button (1). The display shows the symbol “Levelling”. The hydraulic control levers performs controls in a smoother way. If both levers are brought to NEUTRAL position, an automatic return to the “Digging”...
Page 138 Copyright © SECTION 3 Fine levelling The “Fine levelling” mode can permits even more sensitive working. In this case, the maximum equip- ment speed is no longer available for boom and dip- per movements. This working mode must have been configured beforehand on the display.
Page 139 Copyright © OPERATING THE MACHINE HYDRAULIC DAMPING By means of the hydraulic damping, the working movements acquire smoothness. Abrupt move- ments of the hydraulic control levers and travel pedal are converted into smooth machine move- ments. The controls of boom, dipper, bucket and travel are in this way suited in the best way to the operator’s ability and to the machine’s operational state.
Page 140 F34132 NOTE: by pressing “ALL STANDARD VALUES”, all The selected assy is now confirmed with button devices will set to DEFAULT value. In such a case “set”. the word “STANDARD” will be shown under the By depressing the buttons with the upward arrow, device name.
Page 141 Copyright © OPERATING THE MACHINE STABILIZATION OF THE MACHINE The standard version of the machine does not per- mit independent control of the stabilizers. This means that the stabilizer legs are lifted and lowered in common. An independent control of the stabiliz- ers is available as an option in stabilization variants.
Page 142 Copyright © SECTION 3 Standard stabilizers Independent stabilizer Stabilizers options Blade control control lowering at the rear push hydraulic control lever forward (without switches A, B, C and raising at the rear pull hydraulic control lever backward (with- out switches A, B, C and D) lowering at the rear lowering at the rear...
Page 143 Copyright © OPERATING THE MACHINE lowering in the front and lowering in the front in the back and in the back push the left hydraulic - front right stabilizer: control lever forward activate button (A) (without switches A, B, C - front left stabilizer: and D all stabilizers lower activate button (B)
Page 144 Copyright © SECTION 3 WORKING WITH STANDARD BUCKET OR CLAMSHELL UPPER STRUCTURE SLEWING To slew the upper structure to the right: Shift the left hydraulic control lever (1) to the right. To slew the upper structure to the left: Shift the left hydraulic control lever (1) to the left. RAISING AND LOWERING THE BOOM To raise the boom: Pull the right hydraulic control lever (2) back.
Page 145 Copyright © OPERATING THE MACHINE EXTENDING AND RETRACTING THE DIPPER First switch over to dipper function with push-button (6). To extend the dipper: Push the left hydraulic control lever (1) forward. To retract the dipper: Pull the left hydraulic control lever (1) back. FILLING AND DUMPING THE BUCKET To fill the bucket: Shift the right hydraulic control lever (2) to the left.
Page 146 Copyright © SECTION 3 WORKING STAGES If possible, working operations should always be carried out by pulling the dipper. When digging, use the retracting forces of the dipper and work with shallow cutting angles of the bucket. Steep bucket angles during digging reduce the per- formance.
Page 147 Copyright © OPERATING THE MACHINE The maximum digging forces are produced at angles ß at approximately 165°. If the machine is to develop maximum digging forces, digging must be done slowly. The dipper cyl- inder must have the longest possible lever arm. To remove sand and soil adhering to the bucket, the dipper must be stretched out to nearly horizontal position and the bucket be brought into dumping...
Page 148 Copyright © SECTION 3 Soil levelling. For filling and levelling the soil after the excavation work, the bucket must be moved hor- izontally forwards and backwards. To level the soil, material has to be shoved or raked with the bucket. The levelling operation must be performed by extending the dipper slowly, by raising the boom slightly and then, when the dipper crosses the verti-...
Page 149 Copyright © OPERATING THE MACHINE OPERATING THE MACHINE WITH COLD WEATHER FUEL Refill the fuel tank after each working day to prevent the formation of condensation and the entry of water into the fuel system. To prevent the formation of crystals (-2 °C (28.4 °F)) use a low temperature fuel or mix a protective fluid with your fuel.
Page 150 30 seconds are available for the engine start and for the activation of the post-heat- ing. If this is not the case, for the starting stage are still available from 0 to 15 seconds, for the heating of the intake air.
Page 151 The oil contained in the hydraulic system activates the cylinders and the different hydraulic motors. Cold hydraulic oil is viscous. In such a case, some machine functions as travel and rotation move- ments, are performed more slowly than with hot oil.
Page 152 Copyright © SECTION 3 OPERATING THE MACHINE WITH HOT WEATHER Air density decreases as altitude or ambient temper- ature increases. As a result of this, the engine’s maximum output, quality of exhaust gas, tempera- ture level and, in extreme cases, starting behaviour, are impaired.
Page 153 Copyright © OPERATING THE MACHINE MACHINE RECOVERY AND TOWING Tow the machine only with a tow rod. The tow-rod must be free from damage. It must be dimensioned in such a way that the calculated breaking load is equal to three times the tractive power of the towing machine.
Page 154 Copyright © SECTION 3 DURING RECOVERY AND TOWING Limit the hazard area as large as possible. Proceed with caution and slowly. When the engine is running, the service brake is active. When the engine is not running, the service brake is only partially active.
Page 155 Copyright © OPERATING THE MACHINE FASTENING POINT A LEVELLING BLADE IN FRONT NOTA: always drive the machine onto the low-bed trailer in forward gear. Lower the levelling blade for transport and for fastening onto the loading plat- form. Tie down the machine at the central fastening point, using heavy-duty shackle.
Page 156 Copyright © SECTION 3 B FASTENING POINT, LEVELLING BLADE IN THE REAR NOTA: always drive the machine onto the low-bed trailer in forward gear. Lower the levelling blade for transport and for fastening onto the loading plat- form. Tie down the machine at the left and right fastening holes, to the respective side (not crosswise) using heavy-duty shackles.
Page 157 Copyright © OPERATING THE MACHINE WORKING ATTACHMENT PLACING BOOM ATTACHMENT On this attachment between the lower boom (3) and positioning boom (1) there is a further articulation point (2). By means of a further hydraulic cylinder, boom adjusting cylinder (4) the placing boom can be adjusted (1).
Page 158 Copyright © SECTION 3 SETTING OF BOOM ADJUSTING EQUIPMENT With this menu, it is possible to suit the working speed of the adjusting cylinder to the operator per- sonal requirements and particularly to the work requirements. During this operation the pedal con- trol radius is adapted (1).
Page 159 Copyright © OPERATING THE MACHINE Depress the arrow buttons repeatedly until the bar By selecting the “ADJUSTMENT” menu, by means is on “SPEED LIMITATION”. Depress “set” button. of arrow buttons you can set the working speed of the adjusting cylinder, by shifting of 10% percent- On the “SPEED LIMITATION”...
Page 160 If the machine is not equipped with stabilizers, block the floating axle. In such a case pay particular attention during operation, because the overturning danger is remarkably higher. Avoid to exceed the load carry- ing capacity limit.
Page 161 Copyright © OPERATING THE MACHINE BUCKET / CLAMSHELL Ask the dealer for activation of that menu. NOTE: if the option is not activated, the open/close speed is on 100%. With activation of the option the value for opening and closing speed is set to 50% of maximum speed. Other needs and return to maximum speed require an immediate change of the speed values.
Page 162 Copyright © SECTION 3 BUCKET DISASSEMBLY AND ASSEMBLY Place the working equipment on the ground. Shim the bucket bottom. It could overturn, when the pins are removed. Unscrew the screws (2) and (4). Take out pins (1) and (3). Raise the working attachment slightly (5). Now the bucket (6) is free.
Page 163 Copyright © SECTION 4 SUPPLIES AND SERVICE CHART SUPPLIES AND SERVICE CHART Quantity (litres) (gal) Case International Component to refill Suggested Product Viscosity Standard Standard WX 145 WX 165 WX 185 Water and liquid AKCELA PREMIUM Cooling system ORGANIC (6.80) (6.60)
Page 164 - ASTM D 975-96; 1-D and 2-D - NATO Code F-54 / F-34 / F-44 and XF 63 Exhaust emission values which may be determined in the case of type approval tests always refer to the fuels prescribed by the authorities for the type approval test.
Page 165 Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC OIL For the first refilling, Manufacturer uses PANOLIN HLP SYNTH 46. Hydraulic oil is not soluble in water; this can gener- ate condensate water in the hydraulic oil tank. Therefore drain condensate water periodically, par- ticularly after a long downtime period.
Page 166 Before performing any topping up or additive checks. The Dealer will care to inform the customer change, ask the After-sales Service about the spec- in case the oil has lost the necessary features for ifications of the required additive allowed for your use.
Page 167 Copyright © SUPPLIES AND SERVICE CHART SAFETY INSTRUCTIONS No inspection and maintenance work may be car- ried out until the Operator’s Manual has been read and understood. CAUTION There is a risk of serious injury if maintenance or repairs are not performed correctly. If you do not understand the maintenance procedures, consult your Dealer.
Page 168 Copyright © SECTION 4 WORKING HOURS / INTERVALS A condition for the Manufacturer to take over the costs of the warranty service, is the regular perform- ance of all inspection, maintenance and repair oper- ations prescribed, as instructed by this Operator’s Manual and the use of genuine spares.
Page 169 Copyright © SUPPLIES AND SERVICE CHART MAINTENANCE INTERVALS CHART Cleaning Oil change Pressure release Level check and top-up Check Water draining Greasing Replacement / Change Air bleeding Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary...
Page 170 Copyright © SECTION 4 Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary hours hours hours hours Hydraulic system 4-13/4-64/ Hydraulic oil tank 4-74 Return filter 4-39 Bleeding valve 4-55 Pilot control filter 4-60 Upper structure Upper structure holding...
Page 171 Copyright © SUPPLIES AND SERVICE CHART Every Every Every Every Every 10 Every 50 When Maintenance 1000 3000 Page hours hours necessary hours hours hours hours Attachment Buckets - Teeth 4-83 Greasing Various grease nipples - 4-18 Working attachment Several grease nipples - 4-19 Off-set boom Slewing bearing - Cups...
Page 172 Copyright © SECTION 4 CHECKS BEFORE START-UP AND BEFORE EACH WORKING SHIFT (10 HOURS) Level check SERVICE POINTS Check Cleaning Greasing and top-up Machine - General inspection Service brake Parking brake Upper structure holding brake Lights Controls and lamps functionality Engine oil - Level Hydraulic oil tank - Level Fuel tank - Level...
Page 173 Copyright © SUPPLIES AND SERVICE CHART SERVICE BRAKE Before starting the machine, check the proper oper- ation of: - service brake. Check the operation of the service brake by depressing pedal (1). The service brake operation is always monitored by the multi-function display.
Page 174 Copyright © SECTION 4 UPPER STRUCTURE HOLDING BRAKE Before starting the machine, check the proper oper- ation of: - upper structure holding brake. Check the correct operation in this way: - Start the engine The upper structure holding brake can be oper- ated in AUTOMATIC mode by the centralized electronic system.
Page 175 Check that the oil level is above the “min” notch of the dipstick (1) inside of hydraulic oil tank (2). If this is not the case, top up the hydraulic oil. No matter what the position of the working attach- ment is, the oil level must always be between the notches “min”...
Page 176 Copyright © SECTION 4 HYDRAULIC OIL TOP UP The hydraulic oil tank is slightly under pressure at about 0.3 bar (4 psi). As mentioned previously, before performing any top up of the hydraulic oil, it is important to relieve the residual pressure inside of the hydraulic system.
Page 177 In this case: - always refuel through a fine mesh filter; - user only intake hoses with a fine mesh filter;...
Page 178 If the cooling system is leaking, do not mix sealing additives to the coolant. These could in fact clog the cooling system. In such a case the coolant delivery could cause a engine overheating. The coolant level has to be checked daily, so as to detect in time liquid leaks and to avoid damages.
Page 179 Copyright © SUPPLIES AND SERVICE CHART SCREEN WASHER LIQUID - LEVEL The operation logic and mode of the liquid container have been optimized, because the same has been incorporated in the panel behind the operator’s seat. The panel is used at the same time as supporting surface for operator’s tools and personal objects.
Page 180 Copyright © SECTION 4 WORKING ATTACHMENT - GREASING Before beginning the greasing operation: Clean the grease nipple. - place the working attachment on the ground, com- Apply the pump nozzle on the grease nipple. pletely extended; Pump the grease in such a quantity that the new - place the machine in a safe condition.
Page 181 Copyright © SUPPLIES AND SERVICE CHART Position Lubrication point Quantity Extension/retraction cylinder joint (rod side) Bucket cylinder joint (bottom side) Boom cylinder joint (bottom side) Extension/retraction cylinder joint Clamshell (optional) - Joints - clamshell bucket rotation gear teeth - Clamshell bucket / dipper joint Grease nipples block - Extension/retraction cylinder joint (rod side) - Boom cylinder joint (rod side)
Page 182 Copyright © SECTION 4 TYRES - PRESSURE CHECK CAUTION Before inflating the tyres, check the tyres, rims and rim parts for damage, penetrated foreign objects and proper fitting. Check the tyre inflation pressure only when the tyres are cold, as when they are warm, the pres- sures indicated are higher than usual.
Page 183 Copyright © SUPPLIES AND SERVICE CHART Do not overinflate the tyres, because if bumped they can break easily and under extreme conditions the rim can get deformed and the tyre can burst. CAUTION The tyres inflating pressure varies according to the load applied to axles.
Page 184 Copyright © SECTION 4 TYRES - NUTS TIGHTENING Park the machine on a flat surface and lower the equipment to the ground. Shut off the engine. Engage the parking brake. Secure the machine by placing chocks under the wheels to prevent inadvertent movements. Check if nuts (1) are tighten.
Page 185 Copyright © SUPPLIES AND SERVICE CHART WEEKLY SERVICE (50 HOURS) Level Water SERVICE POINTS Check check and Cleaning Greasing bleeding draining top-up Cab - Air filter Air filter: Dust discharge valve - Main filter element Air intake system: Intake pipes Cooler Fuel system Fuel filter...
Page 186 DUST DISCHARGE VALVE - CLEANING The dust discharge valve (2) collects dust penetrat- ing into the air filter case. To discharge the dust, compress the dust discharge valve repeatedly. The dirt is crumbled and comes out from the bottom.
Page 187 Copyright © SUPPLIES AND SERVICE CHART MAIN FILTER ELEMENT - CLEANING Never clean filter elements by beating them against hard objects. After 3 cleaning cycles or after one year of operation at the latest, the main filter element must be replaced.
Page 188 Copyright © SECTION 4 AIR INTAKE LINE - CHECK Hoses and tubes for air intake damaged or leaking, influence enormously the performance and life of the engine. Dirt or pieces of the intake air can reach the engine and damage it heavily. The feeding pressure created by the turbocharger could dissipate with the consequence that the engine does not develop its full power.
Page 189 The cooler has to be cleaned by directing the jets from the top to the bottom. Remove the dirt residu- als. In case of dirt build-up, clean the hood and the draining holes. FUEL SYSTEM - AIR BLEEDING AND WATER DRAINING CAUTION The fuel vapours are readily flammable.
Page 190 Copyright © SECTION 4 AIR BLEEDING When components on the fuel delivery line are replaced, the air bleeding from the system is per- formed automatically. When the fuel line under high pressure is disassem- bled or replaced, the air bleeding is not required for engine start-up.
Page 191 In such a case there is the formation of condensate, in particular when the tank is not completely full. With temperatures lower than 0 °C (32 °F), the condensate freezes and the drain-...
Page 192 Copyright © SECTION 4 FUEL FILTER/S - WATER DRAINING WARNING Water contained in the fuel can corrode, damage or wear the engine injection system. NOTE: the WX 145 excavator is equipped with fuel filter. The WX 165 and WX 185 excavators are equipped with two fuel filters.
Page 193 Copyright © SUPPLIES AND SERVICE CHART SLEWING GEARBOX - OIL LEVEL Place the machine in a safe condition. Open the engine hood. Unscrew cover (1) of the expansion tank (2). The expansion tank must be filled with oil for at least 1-2 cm (0.39-0.79 in).
Page 194 Copyright © SECTION 4 BATTERIES - CHARGE CHECK AND CLAMPS TIGHTENING CAUTION Batteries give off explosive gases. Never handle naked flames and unshielded light sources near batteries, never smoke. Battery acid is toxic and corrosive. Avoid any contact with the skin, mouth, eyes and clothing.
Page 195 To recharge the battery, do not exceed the maxi- mum charge current of 10% of the battery rated capacity. Recharge time maximum 30 hours, in case of bat- tery completely flat. Quick recharge Respect the prescriptions of the Manufacturer of the battery charger.
Page 196 Copyright © SECTION 4 SLEWING BEARING CUPS AND AXLE FLOATING PINS - GREASING Before starting with the greasing operations place the machine in a safe condition. By means of the greasing pump, grease all lubrica- tion points of the upper structure. Remove the protection cap from the grease nipple.
Page 197 Copyright © SUPPLIES AND SERVICE CHART QUICK COUPLER MILLER Version - GREASING LOCKING CYLINDER (1) = No. 1 grease nipple (2) = No. 1 grease nipple (3) = No. 1 grease nipple LOCKING HOOK PIN (4) = No. 1 grease nipple 4-35...
Page 198 Copyright © SECTION 4 QUICK COUPLER LEHNHOFF Version - GREASING Clean all contact surfaces of the quick coupler and adapter and apply a thin coat of lubricating spray to them: - coupling claws (1) and shaft (2); - rear surface (3) of quick coupler; - locking pins (4), contact surface of locking plate (5) and locking plate bores (6).
Page 199 Copyright © SUPPLIES AND SERVICE CHART MONTHLY SERVICE (250 HOURS) Level check Replacement SERVICE POINTS Check Greasing and top-up / Change Engine oil filter Hydraulic oil return filter Steering axle Rigid axle and gearbox Air conditioning system Blade and stabilizer joint Cardan shaft Steering trunnion pins Axle locking cylinders contact face...
Page 200 Copyright © SECTION 4 Fill the new filter cartridge with clean oil. Lightly oil the gasket of the new filter cartridge. Screw in the new cartridge until the gasket is flush. At this point tighten the filter by hand. Fill in engine oil into filler neck (2) until the oil level reaches the “max”...
Page 201 Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC OIL RETURN FILTER - CHANGE WARNING Before starting to work on the hydraulic system, make sure that this is not under pressure and relieve any residual pressure from it. Never let hydraulic oil to come in contact with the skin.
Page 202 Copyright © SECTION 4 STEERING AXLE - OIL LEVEL WARNING The axle and the differential box may also be hot after a long journey. Leave the axle and differential box to cool down and wear working gloves. The axle and differential may be slightly over pres- surized, so turn the control plug carefully, just far enough to release the excess pressure (audible hissing sound).
Page 203 Copyright © SUPPLIES AND SERVICE CHART TRAVEL GEARBOXES - OIL LEVEL Bring the screw plugs (1) and (2) into position depending on the wheel-hub installed. Screw plug (1) must be above the centreline. The line under the word “Front” must be in horizon- tal position.
Page 204 Copyright © SECTION 4 RIGID AXLE AND GEARBOX - OIL LEVEL WARNING The axle and the gearbox may also be hot after a long journey. Let the axle and the gearshift box cool down and wear working gloves. The axle and the gearshift box may be slightly over pressurized, so turn the control plug carefully, just far enough to release the excess pressure (audible hissing sound).
Page 205 Moreover, it is necessary to let it run for at least 10-15 minutes. In this way you avoid that the oil seal on the com- pressor shaft dries and becomes fragile. In this case coolant leaks may take place. Besides, in this way all compressor components are periodically lubri- cated.
Page 206 Copyright © SECTION 4 BLADE AND STABILIZERS JOINTS, CARDAN SHAFT, STEERING TRUNNION PINS - GREASING Before starting with the greasing operations place the machine in a safe condition. By means of the greasing pump, grease all lubrica- tion points. Remove the protection cap from the grease nipple. Clean the grease nipple.
Page 207 Copyright © SUPPLIES AND SERVICE CHART STEERING TRUNNION PINS (3) = No. 4 grease nipples (4) = No. 2 grease nipples FLOATING AXLE LOCKING CYLINDERS CONTACT FACES - LUBRICATION The contact faces of floating axle locking cylinder must be lubricated. If the contact faces are dry, noise is heard during the axle floating.
Page 208 Copyright © SECTION 4 SERVICE EVERY 2 MONTHS (500 HOURS) Replacement SERVICE POINTS Check Cleaning Oil change Greasing / Change Fuel filter Engine speed sensor Engine - Drive belt Engine oil Slewing bearing - Screws tightening Slewing bearing - Teeth Slewing gearbox - Screws tightening FUEL FILTER/S - CHANGE...
Page 209 Place the machine in a safe condition. Shut off the engine. Open the engine compartment cover. The engine revolutions sensor (1) is fitted on the flywheel case and is accessible from the bottom, after dismantling the panels, that are placed under the pumps and engine compartment.
Page 210 (1) are not allowed. In this case the belt has to be replaced. The belt must be replaced also in case of frayed edges or if it is losing pieces. Check that the belts have no shiny or worn out spots.
Page 211 Copyright © SUPPLIES AND SERVICE CHART ENGINE OIL - CHANGE WARNING Risk of burns caused from hot engine oil. Collect escaping oil and discard without polluting the environment. DRAINING HOSE FOR OIL CHANGE The engine is equipped with a special filler neck (1) for oil discharge.
Page 212 Copyright © SECTION 4 OIL FILLING Screw up the hose. Reassemble the base-plate for maintenance below the engine compartment. Engine oil filter change. Carry out the oil filling by unscrewing the plug (4), until you reach the reference “max” of the dipstick (5).
Page 213 13 mm (0.51 in) on WX 145 and WX 165 excavators and of 20 mm (0.79 in) on WX 185 exca- vators. If this is not the case, add grease. Check that water is not penetrated. You can recog- nize this event by the fact that grease becomes lighter.
Page 214 Copyright © SECTION 4 SERVICE AFTER 1000 HOURS Replacement / SERVICE POINTS Check Cleaning Oil change Change Cab - Air filter Windscreen wiper - Blades Engine brackets - Screws tightening Engine - Belt tensioner Air filter: Main and safety filter elements Hydraulic system - Bleeding valve Steering axle Rigid axle and gearbox...
Page 215 If damaged, the belt tensioner (1) has to be replaced. Address in this case to an authorized workshop. Check the belt tensioner (1) for dirt build-ups. In case of dirt build-ups, disassemble it and clean it with steam jets. 4-53...
Page 216 (3) has been cleaned three times. Clean the inside of the filter case (5) and the cover (2) accurately, by means of a vacuum cleaner. Install the new safety element (4) and then the main new element (3).
Page 217 Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC SYSTEM BLEEDING VALVE - CHANGE The air bleeding and sucking valve (1) ensures this operation inside of the hydraulic oil tank (2), so as to compensate the hydraulic oil level floating. This valve maintains a pressure of about 0.3 bar (4 psi) inside of the tank.
Page 218 Copyright © SECTION 4 DIFFERENTIAL - OIL CHANGE Clean the area around screw plugs (1) and (2). Place a container under the screw plug (2) to collect old oil. Unscrew the screw plug (1) slowly, until the inner pressure is completely released. Only after this operation, unscrew plug...
Page 219 Copyright © SUPPLIES AND SERVICE CHART RIGID AXLE AND GEARBOX - OIL CHANGE WARNING The axle and the gearbox may also be hot after a long journey. Let the axle and the gearshift box cool down and wear working gloves. The axle and the gearshift box may be slightly over pressurized, so turn the control plug carefully, just far enough to release the excess pressure (audible...
Page 220 Copyright © SECTION 4 DIFFERENTIAL - OIL CHANGE Clean the area around the plugs (1) and (2). Place a container under the screw plug (2) to collect old oil. Unscrew the screw plug (1) slowly, until the inner pressure is completely released. Only after this operation, unscrew the screw plug (1) completely.
Page 221 Copyright © SUPPLIES AND SERVICE CHART SERVICE BRAKE - PLATES CHECK The check to carry out is the thickness of coatings. To purchase the measurement device address to your Dealer. WX 145 WX 165 WX 185 Measurement of maximum gap (mm) (0.15 in) (0.18 in) The measurement has to be carried out on all...
Page 222 Unscrew the case (2) and move it downward as far as possible. Do not let hydraulic oil flow out. Remove the filter (3) with one turn. Clean the filter case (2) and the seal surfaces on the filter head. Fit the new filter (3) with one turn.
Page 223 Copyright © SUPPLIES AND SERVICE CHART SYSTEM COMPONENTS The air conditioning system consists of: - blower (1); - heat exchanger (2); - evaporator (3); - panel filter (4); - heating valve (5); - draining sleeve for condensate discharge (6); - motor for air re-circulation and outer air intake (7); - thermostat, electronic control unit (8);...
Page 224 Check the good conditions and the correct fastening of connectors and of electric wires. Check that evaporator fins (3) are not bent: if this is the case, straighten them again. Check that the antifreeze probe is not bent or shows leaks.
Page 225 Copyright © SUPPLIES AND SERVICE CHART Check the operation of the selector for temperature adjustment (19). If the selector is hard to move, check that the tie-rod is not bent or rusted, eventually replace it. COMPRESSOR BELT - REPLACEMENT WARNING Risk of injury from hot or rotating parts in the engine compartment.
Page 226 Copyright © SECTION 4 SERVICE AFTER 3000 HOURS Replacement SERVICE POINTS Check Oil change Cleaning Air bleeding / Change Oil tank Engine - valves clearance Cooling system liquid Fuel tank Slewing gearbox HYDRAULIC OIL TANK - CLEANING AND OIL CHANGE WARNING Never let hydraulic oils to come in contact with the skin.
Page 227 Copyright © SUPPLIES AND SERVICE CHART HYDRAULIC OIL TANK - CLEANING WARNING Do not use petroleum, paraffin oil or other solvents to clean the tank. This can cause the formation of gas easy flamma- ble and explosive. Use therefore only hydraulic oil or paraffin oil for the special detergent for cleaning and washing the tank.
Page 228 Beyond respecting the maintenance intervals, air must be bled from the hydraulic system after each oil change: pumps, engines and cylinders have to be accurately bled of air. If this is not the case, their performance during intake and operation will be seriously affected.
Page 229 Copyright © SUPPLIES AND SERVICE CHART COOLING SYSTEM LIQUID - CHANGE WARNING Drain the coolant only after it has cooled down suffi- ciently. Discard used coolant according to environment leg- islation. Park the machine on a level and firm surface. Place the working attachment on the ground.
Page 230 Copyright © SECTION 4 FUEL TANK - CLEANING WARNING Do not use petroleum, paraffin oil or other solvents to clean the tank. This can cause the formation of gas easy flamma- ble and explosive. Use therefore only hydraulic oil or detergent oil spe- cially suited for the tank cleaning.
Page 231 Copyright © SUPPLIES AND SERVICE CHART SLEWING GEARBOX - OIL CHANGE WARNING Collect escaping oil and discard without polluting the environment. Perform the oil change with the machine at opera- tion temperature; hot oil drains more easily. DRAINING HOSE FOR OIL CHANGE The gearbox is equipped with a special sleeve (1) for oil discharge.
Page 232 Copyright © SECTION 4 SERVICE WHEN NECESSARY Pressure SERVICE POINTS Check Cleaning Air bleeding Replacement release Tyres Service brake Steering axle - Steering adjustment Axle floating locking cylinders Fuses Lights - Floodlamps - Bulbs Batteries Buckets teeth 4-70...
Page 233 - intermediate ring (optional); - outer wheel (rims with minor camber angle). Observe the sequence absolutely, because in case of wrong assembly of the wheels, the maxi- mum allowable with of the machine can be exceeded; - pay attention to the tread position;...
Page 234 Copyright © SECTION 4 WHEELS TREAD POSITION Observe the tread position when fitting the wheels. (A) = Shows the tread position recommended for all- wheel driven machines which must have the same traction power for both driving directions. (B) = Shows the tread position of the tyres when the all-wheel-driven machine needs especially good traction in one direction, e.g.
Page 235 Copyright © SUPPLIES AND SERVICE CHART SERVICE BRAKE - AIR BLEEDING The braking system of this machine consists of two braking circuits. One circuit is designed for the pair of wheels of the steering axle, while the other circuit is designed for the pair of wheels of the rigid axle. If works have been performed on the braking sys- tem, causing the penetration of air inside of the sys- tem, for instance during a hose replacement, once...
Page 236 Copyright © SECTION 4 AXLE FLOATING LOCKING CYLINDERS - AIR BLEEDING Park the machine on a level and firm surface. Place the working attachment on the ground. Shut off the engine. Place chocks under the wheels. Unscrew the plugs (2) on both cylinders. Push the pistons down, until they lean on the thrust block of the axle.
Page 237 Check the fuse. Nearly always it is possible to check visually if a fuse is burnt out. In case of doubt, check with an Ohmmeter or replace the burnt fuse with a new one.
Page 238 Copyright © SECTION 4 FUSES LEGEND Cab - Fuse boxes (A) and (B) Power-Relay (main switch function), electronic control unit, engine stop solenoid FA.1 shrinkage coil FA.2 Start-Relay, optional: Grid-Heater-Controller FA.3 Parking brake, service brake FA.4 Free FA.5 Optional: filling system Electro-hydraulic pilot control safety switch, Relay for main unit voltage supply, FA.6 7.5A...
Page 239 Copyright © SUPPLIES AND SERVICE CHART Cab - Fuse box (C) FB.1 Optional: warning beacon FB.2 Optional: cab rear work lights FB.3 Front cab work lights FB.4 Windscreen wiper motor and windscreen washer pump FB.5 Cab interior light FB.6 Voltage supply for 24 V/12 V radio and socket transformer FB.7 Voltage supply for display and key-pad module in the cab FB.8...
Page 240 Copyright © SECTION 4 BULBS - REPLACEMENT Burnt bulbs have to be replaced with bulbs of same power. Before installing a new bulb, remove all traces of corrosion from the holder and the electrical con- tacts. This helps avoid contact problems and high contact resistances.
Page 241 Copyright © SUPPLIES AND SERVICE CHART FRONT WORKING FLOODLAMPS Remove the light from the cab roof. With your fingers, compress the safety bracket (arrows) on connector (2) and remove the connec- tor. Unscrew the nut (1) with a spanner. Remove working floodlamp (4) with the cap (3). Holding the working floodlamp (4) still, turn the cap (3) to the left and remove it.
Page 242 Copyright © SECTION 4 BOOM WORK LIGHT Unscrew the fastening screws (1) of the covering glass (2). Unlatch the retaining spring (3) and replace the bulb type H3 PK22S 70 W - 24 V (4). Reassemble the covering glass (2) and fasten it with screws (1).
Page 243 Copyright © SUPPLIES AND SERVICE CHART TURN SIGNAL LIGHTS Unscrew the fastening screws (1) of the covering glass (2). The bulb type P21W 21 W - 24 V (3) is fitted inside a plug-in bulb holder (4): - press the bulb and turn it to the left; - take out the bulb;...
Page 244 Copyright © SECTION 4 BATTERIES - REPLACEMENT WARNING Shut off the engine before removing batteries, to prevent damaging the alternator and regulator or the electronic modules. Disconnect clamps from poles in the correct sequence. A sequence error can cause a short-circuit. Park the machine on a level and firm surface.
Page 245 Copyright © SUPPLIES AND SERVICE CHART BUCKETS TEETH - CHANGE WARNING Nobody must stay in the way of the tooth or tooth safety latch that has to be extracted. The safety latch or the tooth can suddenly be ejected when driven out and hit persons. Metal splinters may cause injury.
Page 246 Copyright © SECTION 4 NOTES: 4-84...
Page 247 Copyright © SECTION 5 STORAGE MACHINE STORAGE ENGINE STORAGE If the machine is to be set out of operation for longer If the engine is to remain idle for an extended period periods, the following measures are recommended: of time, it is necessary to take protective measures to prevent rusting.
Page 248 Check fuel level in the tank and top up if necessary. IMPORTANT: handle and dispose of fluids accord- ing to current regulations. Use only authorised dis- Commission engine. posal procedure and, in case of doubt, contact the appropriate authorities. DANGER Do not run the engine in confined spaces without proper ventilation and/or a suitable system capable to remove harmful exhaust gases.
Page 249 Copyright © SECTION 6 ATTACHMENTS HYDRAULIC HAMMER HYDRAULIC HAMMER SELECTION If a hydraulic hammer has to be fitted on the exca- vator, it is important to choose a model satisfying the stability, pressure and oil quantity requirements of the excavator hydraulic system. CAUTION For the selection of the hydraulic hammer type most suitable to the machine features, address to...
Page 250 Copyright © SECTION 6 Avoid working with excavator cylinders completely extended (fully extended or fully retracted) so as not to damage the attachment structure or the same cyl- inders. Stop working if hydraulic hoses are bent abnormally. Do not operate the hydraulic hammer in water. This use may originate rust or damage seals and compo- nents of the hydraulic system.
Page 251 Copyright © ATTACHMENTS USE OF HYDRAULIC HAMMER BEFORE BEGINNING WORK Check that the hydraulic hammer is safely locked on the working equipment and that the hydraulic lines are connected in the right way. SWITCHING ON THE HYDRAULIC HAMMER Select the “Hydraulic hammer” function by depress- ing switch face without symbol (1).
Page 252 Copyright © SECTION 6 HAMMER OPERATION WITH FIXED IMPACT FREQUENCY Place tip of chisel then switch on hammer with push- button (3). The hammer works with the maximum preset hydraulic power and is on as long as the button is depressed.
Page 253 Copyright © ATTACHMENTS HYDRAULIC HAMMER, SETTING THE PARAMETERS ATTACHMENT ATTACHMENT HAMMER ROTARY CUTTER SHEARS HAMMER 4 HAMMER 1 HAMMER 2 HAMMER 3 HAMMER 3...
Page 254 Copyright © SECTION 6 WRONG CODE HAMMER 3 PRESS ANY KEY HAMMER 3 PARAMETERS NOT UPDATED. RE-TEST. INPUT CODE PRESS ANY KEY. HAMMER 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. HAMMER 3 HAMMER 3 Save changes?
Page 255 Copyright © ATTACHMENTS If the settings for hammer 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit. By depressing the button with the downward arrow (⇓), the number decreases of one unit.
Page 256 Copyright © SECTION 6 HYDRAULIC SHEARS SELECTING THE HYDRAULIC SHEARS Considering that the weight of the hydraulic shears is higher than the weight of the bucket, you have to select a shears model having the features suitable for the excavator to avoid possible troubles or machine instability.
Page 257 Copyright © ATTACHMENTS USE OF HYDRAULIC SHEARS BEFORE BEGINNING WORK Check that the hydraulic shears are safely locked on the working equipment and that the hydraulic lines are connected in the right way. SWITCHING ON THE HYDRAULIC SHEARS Preselect “Hydraulic shears” with rocker switch (1). Depress the blank face of switch, switch backlight- ing is on.
Page 258 Copyright © SECTION 6 HYDRAULIC SHEARS, SETTING THE PARAMETERS ATTACHMENT ATTACHMENT HAMMER ROTARY CUTTER SHEARS SHEARS 1 SHEARS 2 SHEARS 3 SHEARS 4 SHEARS 3 6-10...
Page 259 Copyright © ATTACHMENTS WRONG CODE SHEARS 3 PRESS ANY KEY SHEARS 3 PARAMETERS NOT INPUT CODE UPDATED. RE-TEST. PRESS ANY KEY. SHEARS 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. SHEARS 3 SHEARS 3 Save changes? Data input...
Page 260 Copyright © SECTION 6 If the settings for shears 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit.
Page 261 Copyright © ATTACHMENTS HYDRAULIC QUICK COUPLER SAFETY INSTRUCTIONS The use of the quick coupler for works other than those for which it has been planned are prohibited. Do not use the quick coupler before to have read Never use the quick coupler as a hammer. Never carefully and well understood the instructions and use the quick coupler to sweep or level the ground safety prescriptions, indicated in this Manual.
Page 262 Copyright © SECTION 6 IDENTIFICATION PLATES When ordering spare parts or when needing infor- mation or assistance, it is always necessary to give the local Dealer all references as regards the type (4) and the serial number (1) of the relevant quick coupler.
Page 263 Copyright © ATTACHMENTS QUICK ASSEMBLY AND DISASSEMBLY ASSEMBLY Make sure that the attachment to be fitted is stand- ing firmly on a flat surface and that it is equipped with pins delivered with the quick coupler. Set the switch to unlocking position. The acoustic alarm sounds.
Page 264 Copyright © SECTION 6 Lift the dipper and remove completely the bucket cylinder rod. Set the switch to locking position. The acoustic alarm stops sounding. Keep the bucket cylinder under pressure so as to allow the closure of the locking hook. Lift the work- ing attachment so that the bucket pin (3) becomes visible.
Page 265 Copyright © ATTACHMENTS DISASSEMBLY By moving the dipper hydraulic control lever, place this one to vertical position, slightly tilted toward the cab, so as to release the safety device. By moving the bucket hydraulic control lever, lean the bucket on the ground on a flat and firm surface. Set the switch to unlocking position.
Page 266 Copyright © SECTION 6 CLAMSHELL SAFETY INSTRUCTIONS The hazard zone of the clamshell must be kept clear of all persons. Never try to change the clamshell position or its sup- port with your hands. The bucket link when blocked should not be use to lift weights.
Page 267 Copyright © ATTACHMENTS Clean and grease bearing pins and bushes. Drive the machine towards the clamshell. Insert dipper into grab bearing, push bearing pin (2) home and secure it. Shut off engine and relieve hydraulic pressure from clamshell hoses as described. Clean quick couplers on clamshell and dipper.
Page 268 Copyright © SECTION 6 CLAMSHELL DISASSEMBLY Completely open clamshell valves and rest the clamshell on the ground. Shut off the engine, turn the starter switch key to position “I”. Relieve the pressure from the hydraulic hoses for the clamshell. Turn the starter switch key to position “0”. Disconnect hydraulic hoses (4) and (5) and quick couplers.
Page 269 Copyright © ATTACHMENTS PARAMETERS SETTING ATTACHMENT CLAMSHELL BUCKET REDUCED LOAD CARRYING CAPACITY CLAMSHELL BUCKET CLAMSHELL BUCKET Save changes? SPEED SPEED OPENING: OPENING: CLOSING: CLOSING: F34185 The opening/closing speed reduction of clamshell is optional. SWITCHING OVER FROM STANDARD TO CLAMSHELL BUCKET To switch over the working attachment from stand- ard bucket to clamshell, two valves located on the bucket cylinder have to be switched.
Page 270 Copyright © SECTION 6 CLAMSHELL BUCKET OPERATION Set to vertical position the marker grooves on the valves’ squares (1). SWITCHING OVER OF VOLUME FLOW FROM STANDARD BUCKET TO CLAMSHELL By means of switch (2) the machine can be switched over from backhoe operation with unlim- ited volume flow in the working pumps, to grab oper- ation with presettable independent volume flow rates for opening and closing of the clamshell.
Page 271 This prevents the machine from being overloaded or the stability from being jeopardized. Before mounting the attachment, check that attach- ment and machine are filled with identical or com- patible hydraulic oil. If this is not the case, drain the oil out of the attach- ment. 6-23...
Page 272 Copyright © SECTION 6 USE OF THE ROTARY CUTTER BEFORE BEGINNING WORK Check that the rotary cutter is securely locked with the working attachment and that the hydraulic lines are connected in the right way. SWITCHING ON THE ROTARY CUTTER Preselect “Rotary cutter”...
Page 273 Copyright © ATTACHMENTS SETTING THE PARAMETERS OF HYDRAULIC ROTARY CUTTER ATTACHMENT ATTACHMENT HAMMER ROTARY CUTTER SHEARS ROTARY CUTTER 1 ROTARY CUTTER 2 ROTARY CUTTER 3 ROTARY CUTTER 4 ROTARY CUTTER 3 6-25...
Page 274 Copyright © SECTION 6 WRONG CODE ROTARY CUTTER 3 PRESS ANY KEY ROTARY CUTTER 3 PARAMETERS NOT INPUT CODE UPDATED. RE-TEST. PRESS ANY KEY. ROTARY CUTTER 3 Updating per- formed by EHC? If the values displacement/pressure are not defined “0” will be displayed. ROTARY CUTTER 3 ROTARY CUTTER 3 Save changes?
Page 275 Copyright © ATTACHMENTS If the settings for cutter 3 are to be changed, depress the button with the downward arrow (⇓). Enter the four digit code and change the settings with the arrow buttons. Depress the button with the upward arrow (⇑), the number increases of one unit. By depressing the button with the downward arrow (⇓), the number decreases of one unit.
Page 276 (e.g. the clamshell). In this case the craning hook cannot be used to lift loads. The pin is not designed for such situations, there- fore it could bend or break abruptly.
Page 277 Copyright © ATTACHMENTS OVERLOAD WARNING SYSTEM WARNING The overload warning system sends exclusively acoustic and visual indication but thanks to them the machine overturning is avoided. When the warning system sounds: - lower the load immediately, - reduce the working radius or the load. Hydraulic excavators used for lifting operations or for transporting loads must be equipped with an overload warning system and pipe break protections...
Page 278 If a fault occurs in the overload warning system, lamps (2) and (3) on button (1) are both flashing. In this case, too, the red warning lamp lights up and the “Overload” message is displayed on the screen. IMPORTANT: have the overload warning system repaired immediately by our Service Department.
Page 279 Copyright © ATTACHMENTS BREAK PROTECTION VALVES The break protection valves prevent the working attachment from lowering in case of a hydraulic hose breaking on the head side of the boom cylin- ders. The hydraulic connection of boom cylinder head is cut out, so that hydraulic oil can flow back from this point only if the “boom lowering”...
Page 280 Copyright © SECTION 6 REAR FLOODLAMPS The rear working floodlamps (1) are positioned on the rear side of cab, under the roof. SWITCHING THE FLOODLAMPS ON AND OFF The rear floodlamps can only be switched on, if the ignition key is set to position “I” (ignition ON). Switch on the working floodlamps by depressing face without symbol of button (2), the lamp inside the button lights up.
Page 281 Copyright © ATTACHMENTS ROTARY LIGHT SINGLE LIGHT Rotary lights are fitted on a mounting stud and secured with a retaining screw. The electrical con- nection is incorporated in the stud. In this way a connecting cable is not required. DOUBLE LIGHT In some countries, two rotary lights are mandatory.
Page 282 In this case: - always refuel through a fine mesh filter; - user only intake hoses with a fine mesh filter;...
Page 283 Copyright © ATTACHMENTS Open the tank cover. Protect the tank filler from penetration of dirt. Disassemble cover (1) of maintenance opening, placed under the refuelling system. Connect intake hose (2) to large spare container. Turn the ignition key to position “I”. Activate the pump with green button (3) on the same pump.
Page 284 Copyright © SECTION 6 FRONT CAB PROTECTION When you work in areas where there is the danger of rocks or debris falling the use of FGPS (1) (Front Guard Protective System), tubular structure to install on the front side of the cab. F34204N BLADE PROTECTION The blade can be equipped with a protection (1),...
Page 285 Copyright © ATTACHMENTS CENTRALIZED LUBRICATION SAFETY INSTRUCTIONS Use the pump only for dispensing lubricants in cen- tralized lubrication systems. The pump is designed for intermittent operation. Quicklub centralized lubrication systems must be filled regularly without air inclusions with clean lubri- cant recommended by the manufacturer.
Page 286 Copyright © SECTION 6 MAINTENANCE The maintenance is essentially limited to refilling the reservoir with clean lubricant in good time. Fill the reservoir up to the “Max” mark via the filling nipple or via the upper filling opening. Check regularly whether the lubricant is really dispensed to all the lubrication points.
Page 287 Copyright © SECTION 7 DATA AND TECHNICAL SPECIFICATIONS DIMENSIONS - OPERATING WEIGHTS WX 145 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2000 2550 1230 1850 2843 2520 3050 3910 4555 2500 1070 8035 8175 1175 1010 (78.73) (100.39) (16.92) (48.42) (72.83) (14.5)
Page 288 Copyright © SECTION 7 OUTFIT WITH MONOBOOM mm (in) Dipper 2000 2923 4445 7925 8065 2550 1230 1850 2520 3050 3910 2500 1070 1175 1010 (78.73) (115.07) (312.00) (317.51) (100.39) (16.92) (48.42) (72.83) (14.5) (99.21) (120.07) (153.93) (13.58) (179.33) (36.61) (98.42) (42.12) (46.25)
Page 289 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH OFF-SET BOOM mm (in) Dipper 2000 2550 1230 1850 2805 2520 3050 3910 4404 2500 1070 7884 8024 1175 1010 (78.73) (100.39) (16.92) (48.42) (72.83) (14.5) (110.43) (99.21) (120.07) (153.93) (13.58) (173.38) (36.61) (98.42) (42.12)
Page 290 Copyright © SECTION 7 WX 165 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2300 2550 1230 2000 2886 2520 3040 3900 4803 2500 1070 8283 8423 1175 1010 (90.55) (100.39) (17.71) (48.42) (78.73) (12.59) (113.62) (99.21) (119.68) (153.54) (14.37) (189.09) (36.61) (98.42)
Page 291 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH MONOBOOM mm (in) Dipper 2300 2550 1230 2000 2858 2520 3040 3900 4513 2500 1070 7993 8133 1175 1010 (90.55) (100.39) (17.71) (48.42) (78.73) (12.59) (112.51) (99.21) (119.68) (153.54) (14.37) (177.67) (36.61) (98.42) (42.12) (314.68)
Page 292 Copyright © SECTION 7 OUTFIT WITH OFF-SET BOOM mm (in) Dipper 2300 2550 1230 2000 2984 2520 3040 3900 4580 2500 1070 8060 8200 1175 1010 (90.55) (100.39) (17.71) (48.42) (78.73) (12.59) (113.84) (99.21) (119.68) (153.54) (14.37) (180.31) (36.61) (98.42) (42.12) (317.32) (322.83)
Page 293 Copyright © DATA AND TECHNICAL SPECIFICATIONS WX 185 MODELS OUTFIT WITH PLACING BOOM mm (in) Dipper 2000 2650 1300 2150 2990 2520 3150 3900 5112 1010 2500 1040 8772 8802 1200 1060 (78.73) (104.33) (17.71) (51.18) (84.64) (12.59) (117.71) (99.21) (124.01) (153.54) (14.37)
Page 294 Copyright © SECTION 7 OUTFIT WITH MONOBOOM mm (in) Dipper 2000 2650 1300 2150 2990 2520 3150 3900 5010 1010 2540 1040 8670 8700 1200 1060 (78.73) (104.33) (17.71) (51.18) (84.64) (12.59) (117.71) (99.21) (124.01) (153.54) (14.37) (197.24) (39.76) (99.99) (40.94) (341.33) (342.52)
Page 295: Table Of Contents
Copyright © DATA AND TECHNICAL SPECIFICATIONS DIGGING PERFORMANCE WX 145 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 9200 362.20 9300 366.14 9500 374.01 B Maximum loading height mm in 6800 267.70...
Page 296: A Maximum Digging Height
Copyright © SECTION 7 OUTFIT WITH MONOBOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 8400 330.71 8300 326.77 8500 334.64 B Maximum loading height mm in 6000 236.22 6000 236.22 6200 244.09 C Maximum digging depth mm in 4800...
Page 297: Mm In 4700
Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH OFF-SET BOOM Dipper mm in 2000 78.74 2300 90.55 2600 102.36 A Maximum digging height mm in 8300 326.77 8300 326.77 8400 330.71 B Maximum loading height mm in 6000 236.22 6000 236.22 6200 244.09...
Page 298 Copyright © SECTION 7 OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2000 78.74 2300 90.55 2600 102.36 A Maximum loading height 5600 220.47 5700 224.41 6000 236.22 C Maximum depth 5900 232.28 6200 244.09 6500 255.90 F Maximum outreach 7100 279.53 7300 287.40...
Page 299 Copyright © DATA AND TECHNICAL SPECIFICATIONS Monoboom Dipper 2000 78.74 2300 90.55 2600 102.36 A Maximum loading height 4800 188.98 4800 188.98 5000 196.85 C Maximum depth 6000 236.22 6300 248.03 6600 259.84 F Maximum outreach 7000 275.59 7200 283.46 7500 295.27 H Front swing radius...
Page 300: Mm In 2700
Copyright © SECTION 7 WX 165 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 9800 385.83 10000 393.70 10300 405.51 B Maximum loading height mm in 7100 279.53 7400 291.33 7600...
Page 301 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH MONOBOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 8900 350.39 9000 354.33 9200 362.20 B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.77 C Maximum digging depth...
Page 302: Mm In 3300
Copyright © SECTION 7 OUTFIT WITH OFF-SET BOOM Dipper mm in 2300 90.55 2600 102.36 2900 114.17 A Maximum digging height mm in 8900 350.39 9100 358.26 9300 366.14 B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.78 C Maximum digging depth mm in...
Page 303 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2300 90.55 2600 102.36 2900 114.17 A Maximum loading height 6100 240.16 6300 248.03 6500 255.90 C Maximum depth 6500 255.90 6800 267.72 7100 279.53 F Maximum outreach 7700 303.15 7900...
Page 304 Copyright © SECTION 7 Monoboom Dipper 2300 90.55 2600 102.36 2900 114.17 A Maximum loading height 5300 208.66 5400 212.60 5600 220.47 C Maximum depth 6500 255.90 6800 267.72 7100 279.52 F Maximum outreach 7400 291.34 7600 299.21 7900 311.02 H Front swing radius 2600 102.36...
Page 305 Copyright © DATA AND TECHNICAL SPECIFICATIONS WX 185 MODELS OUTFIT WITH PLACING BOOM Dipper mm in 2000 78.74 2400 94.49 2800 110.24 A Maximum digging height mm in 9900 389.76 10200 401.57 10500 413.38 B Maximum loading height mm in 7200 283.46 7500...
Page 306 Copyright © SECTION 7 OUTFIT WITH MONOBOOM Dipper mm in 2000 78.74 2400 94.49 2800 110.24 A Maximum digging height mm in 9000 354.33 9200 362.20 9400 370.07 B Maximum loading height mm in 6400 251.96 6600 259.84 6800 267.71 C Maximum digging depth mm in 5200...
Page 307 Copyright © DATA AND TECHNICAL SPECIFICATIONS OUTFIT WITH CLAMSHELL BUCKET Placing boom Dipper 2000 78.74 2400 94.49 2800 110.24 A Maximum loading height 6100 240.16 6400 251.97 6700 263.78 C Maximum depth 6300 248.03 6700 263.79 7100 279.53 F Maximum outreach 7600 299.21 8000...
Page 308 Copyright © SECTION 7 Monoboom Dipper 2000 78.74 2400 94.49 2800 110.24 A Maximum loading height 5300 208.66 5500 216.53 5800 228.35 C Maximum depth 6200 244.09 6600 259.84 7000 275.59 F Maximum outreach 7500 295.27 7800 307.09 8200 322.83 H Front swing radius 2600 102.36...
Page 309 Copyright © DATA AND TECHNICAL SPECIFICATIONS LIFTING CAPACITIES NOTE: the chart represents a WX 145 excavator with placing boom outfit. 7-23...
Page 310 Copyright © SECTION 7 HYDRAULIC SYSTEM PUMPS The hydraulic system is controlled by 3 pumps, 2 main ones and an independent one for slewing. The engine and the pumps are monitored by the “Power Limit Control” system. Up to 7 power levels can be selected for digging and lifting, included the levelling mode for fine works. The power level can be increased automatically with “Drive”...
Page 311 Copyright © DATA AND TECHNICAL SPECIFICATIONS TYRES Pressure V (max) Tyre Manufacturer Type (bar) (psi) [km/h] (mph) 7.50 Mitas 10.00-20 PR16 NB38 (109) (18.64) 7.00 Mitas 11.00-20 PR16 NB38 (102) (18.64) 7.50 Bridgestone 10.00-20 PR16 FGF (109) (18.64) 7.00 Twin Bridgestone 11.00-20 PR16 FGF (102)
Page 312 Copyright © SECTION 7 ELECTRICAL SYSTEM Service voltage ............................24 V Batteries..............................2 x 12 V Batteries rating............................100 Ah Alternator ..............................70 A Starter motor ......................... 4 kW (2963 ft·lb/s) BUCKETS BUCKETS - WX 145 Width (mm) (in) Weight (kg) (lb) SAE capacity (m ) (ft ) Heaped capacity (m...
Page 313 Copyright © DATA AND TECHNICAL SPECIFICATIONS TIGHTENING TORQUES WX 145 WX 165 WX 185 Wheels nuts Nm (lbf·ft) 450 (331.90) Slewing bearing Nm (lbf·ft) 270 (199.14) 280 (206.52) Nm (lbf·ft) 104 (76.71) 60 (44.25) Engine supports Nm (lbf·ft) 270 (199.14) 105 (77.44) Nm (lbf·ft) 490 (361.40)
Page 314 Copyright © SECTION 7 ENGINE WX 145 WX 165 WX 185 Type CNH 445TA/MLH CNH 667TA/MEC CNH 667TA/MEB Operation 4-stroke diesel Cylinders number Cylinders arrangement in V-line Valves per cylinders Boring mm (in) 104 (4.09) Stroke mm (in) 132 (5.20) Displacement 4.5 (158.92) 6.7 (236.61)
Page 315 Copyright © SECTION 8 ALPHABETICAL INDEX Craning hook ............ 6-28 Air conditioning ........2-41, 4-43 Creep speed ............ 3-21 Air filter - Change ..........4-55 Cylinders ............7-24 Air filter - Cleaning ...........4-26 Air filter safety element change ......4-55 Auto Idle ............3-27 Decals ..............
Page 316 Copyright © SECTION 8 Fuel tank - Level ..........4-13 Fuel transfer pump ........... 6-34 Off-set boom - Greasing ........4-21 Fuses - Replacement ........4-75 Operating the machine ........3-1 Operating the machine with cold weather ..3-51 Operating weights ..........7-1 Operator’s seat ..........
Page 317 Copyright © ALPHABETICAL INDEX Starting the engines ......... 3-12 Start-up ............3-4, 3-9 Start-up - Immobilizer .........3-4 Steering ............7-25 Steering axle - Oil change ........ 4-55 Steering axle - Oil level ........4-40 Steering column ..........2-37 Steering trunnion pins - Greasing ....4-44 Storage ..............5-1 Sunblind ............2-35 Supplies - Chart ..........4-1...
Page 318 Copyright © SECTION 8...
Page 319 4. EC DoC serial number. Please make reference to this number when requiring information or support to CASE about EC DoC. 5. Signature of a person authorised to sign the document on behalf of the company.
Page 320 Copyright © ! % $ 8 '3+4/ ./44/ !+>3763 7./6+ ;+43+ #*"! "!"# %? ; B>CC>B2A8CC> 382780A0 274 ;0 B>CC>8=3820C0 <02278=0 ] BC0C0 ?A>64CC0C0 4 2>BCAD8C0 8= 2>=5>A<8CV 0;;4 B46D4=C8 8A4CC8E4 DA>?44 2><4 4<4=30C4 4 08 342A4C8 4 A46>;0<4=C8 274 ;4 CA0B?>=6>=>...
Page 321 Copyright © ! % $ 8 '3+4/ ./44/ !+>3763 7./6+ ;+43+ #*"! "!"# %? ; B>CC>B2A8CC> 382780A0 274 ;0 B>CC>8=3820C0 <02278=0 ] BC0C0 ?A>64CC0C0 4 2>BCAD8C0 8= 2>=5>A<8CV 0;;4 B46D4=C8 8A4CC8E4 DA>?44 2><4 4<4=30C4 4 08 342A4C8 4 A46>;0<4=C8 274 ;4 CA0B?>=6>=>...
Page 322 Copyright © ! % $ 8 '3+4/ ./44/ !+>3763 7./6+ ;+43+ #*"! "!"# %? ; B>CC>B2A8CC> 382780A0 274 ;0 B>CC>8=3820C0 <02278=0 ] BC0C0 ?A>64CC0C0 4 2>BCAD8C0 8= 2>=5>A<8CV 0;;4 B46D4=C8 8A4CC8E4 DA>?44 2><4 4<4=30C4 4 08 342A4C8 4 A46>;0<4=C8 274 ;4 CA0B?>=6>=>...
Page 323 Copyright © Printed in France © 2010 CNH Global N. V.
Page 324 Copyright ©...

This manual is also suitable for:
