AC Input to UPS Rectifier
(A, B, C)
(See Figure 4-19 for Detail AA.)
AC Input to UPS Bypass
(A, B, C)
(See Figure 4-19 for
Detail AA.)
Phase C (E11)
AC Output to
Phase B (E10)
Critical Load
Phase A (E9)
DC Input from Battery + (E4)
(See Figure 4-20 or
Figure 4-21 for Detail BB.)
DC Input from Battery – (E5)
(See Figure 4-20 or
Figure 4-21 for Detail BB.)
Neutral (E12)
EATON Powerware
N

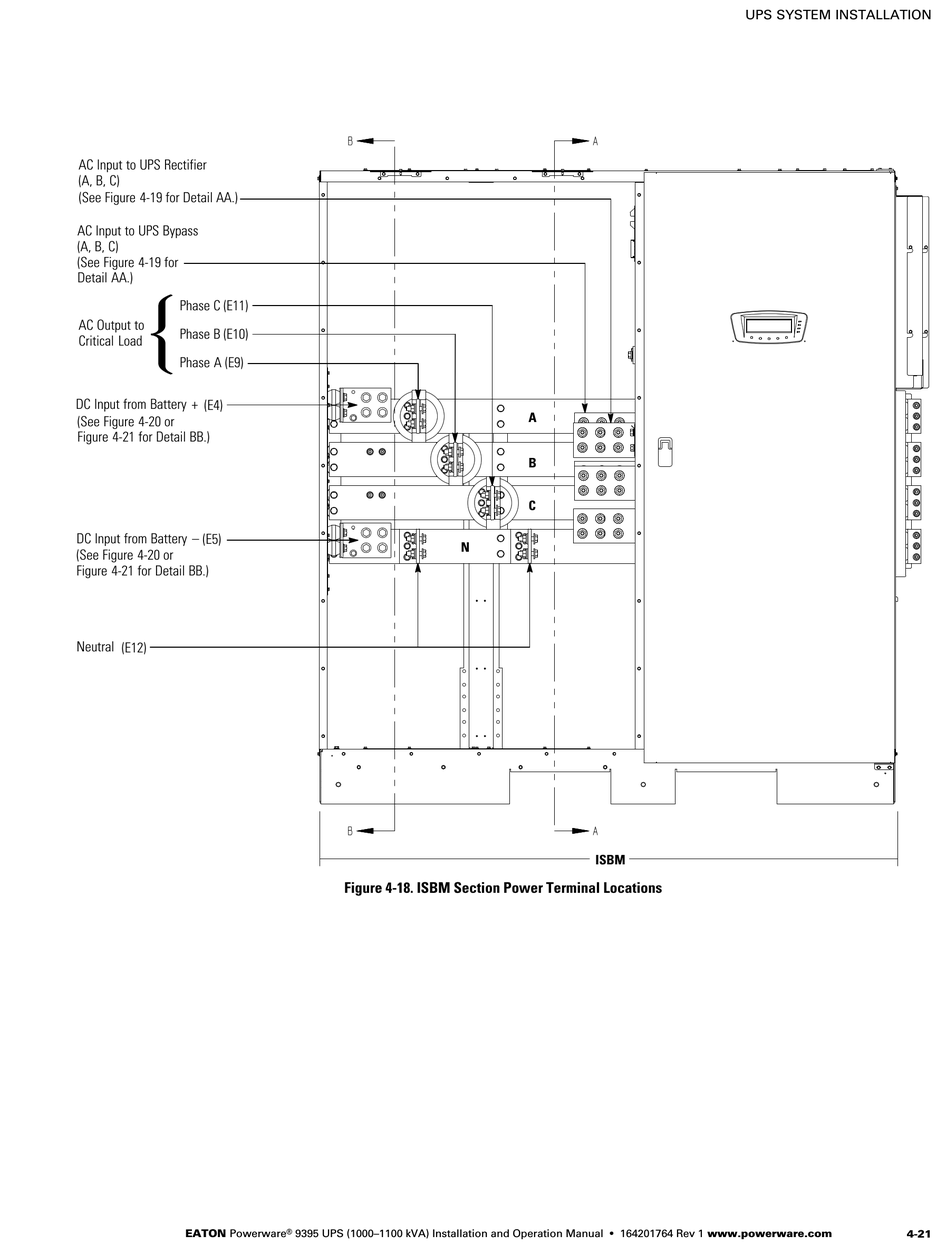

Figure 4-18. ISBM Section Power Terminal Locations
®
9395 UPS (1000–1100 kVA) Installation and Operation Manual
A
B
C
ISBM
S 164201764 Rev 1 www.powerware.com
UPS SYSTEM INSTALLATION
4−21
