Table 45 Jumper X25 / X28 Pinout Description
Pin Configuration
1-2 12 V backlight Power
2-3 5 V backlight Power
Table 46 Jumper X24 / X29 Pinout Description
Pin Configuration
1-2 Disable backlight control
2-3 Enable backlight control
Connector Type
X22, X24, X25, X27, X28, X29: 2.54 mm grid jumper
4.14

SATA

The conga-SEVAL provides a standard SATA connector (X50). The SATA activity LED (D50) glows when an activity occurs on this interface.
Table 47 Connector X50 Description
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX
6 SATA_RX+
7 GND
8 GND
9 GND
Connector Type
X50: Standard SATA connector
Copyright © 2017 congatec AG

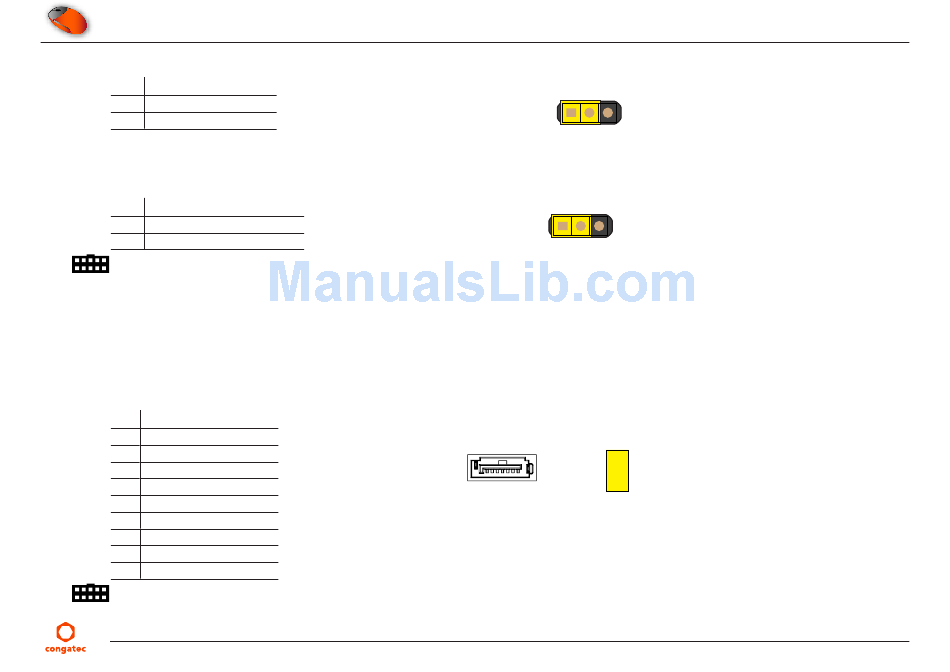

Jumper X25 / X28
1 2 3
Jumper X24 / X29
1 2 3
D50
SATA - X50
SEVALm10 49/58
