Connector Type
CN1: SD Card Socket
4.8

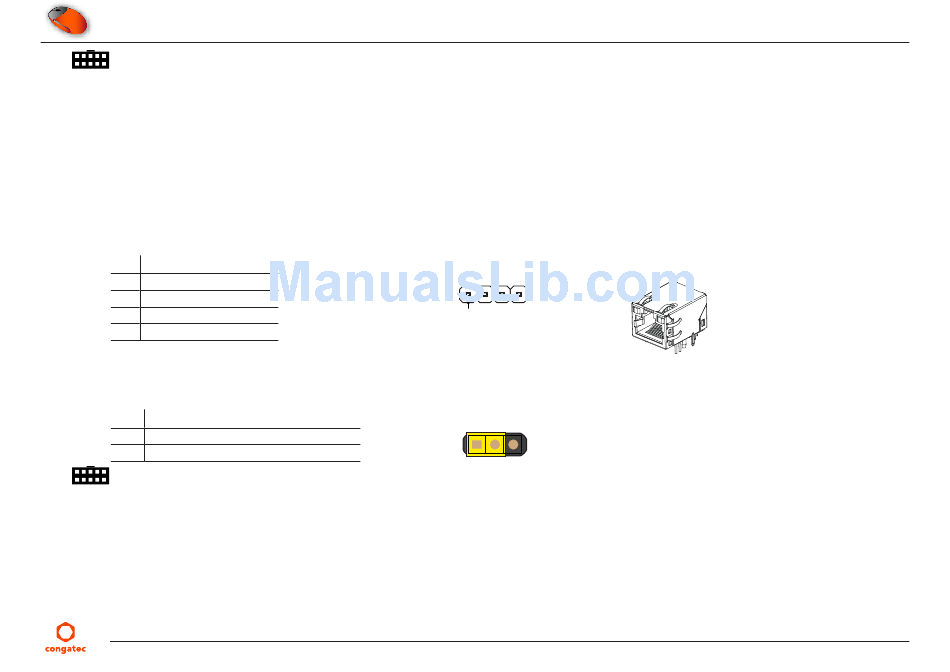

Gigabit Ethernet (GbE)

The conga-SEVAL provides two GbE connectors with magnetics (X12 and X15). The software definable pins for the GbE interfaces are connected
to pin header X14. These pins may be used to synchronize all clocks within a network (via PTP) or for hardware or software-control purposes.
Use jumper X16 to select the power-source for the GbE status LEDs.
Table 25 Connector X14 Pinout Description
Pin Signal
1 +V3.3_GBE
2 GBE0_SDP (for X12)
3 GBE1_SDP (for X15)
4 GND
Table 26 Jumper X16 Description
Pin Configuration
1-2 Status LEDs are powered by standby voltage
2-3 Status LEDs are powered by runtime voltage
Connector Type
X12, X15: RJ45 with Gigabit Magnetic and LEDs (TYCO 2250015)
X14: 2.54 mm, 1 x 4-pin header
X16: 2.54 mm grid jumper
Copyright © 2017 congatec AG
GbE0/1 - X12, X15
GbE0/1 SDP - X14
Pin 1
Jumper X16
1 2 3
