3.3.2

DC Power Supply

The conga-SEVAL features the following connectors for DC power supply:
• 12V - 24V DC power supply via connectors M23 and M24
– supplies power to the carrier board and module
• 3V - 5.25V DC power supply via connectors M25 and M26.
– supplies power to only the SMARC module
Table 3 Connector M23-M24 Description
Connector Description
M23 Ground
M24 Carrier board input voltage (12 – 24V)
Table 4 Connector M25-M26 Description
Connector Description
M25 Ground
M26 SMARC module input voltage (3.0V – 5.25V)
Connector Type
M23 - M26: 4 mm banana plug
Copyright © 2017 congatec AG

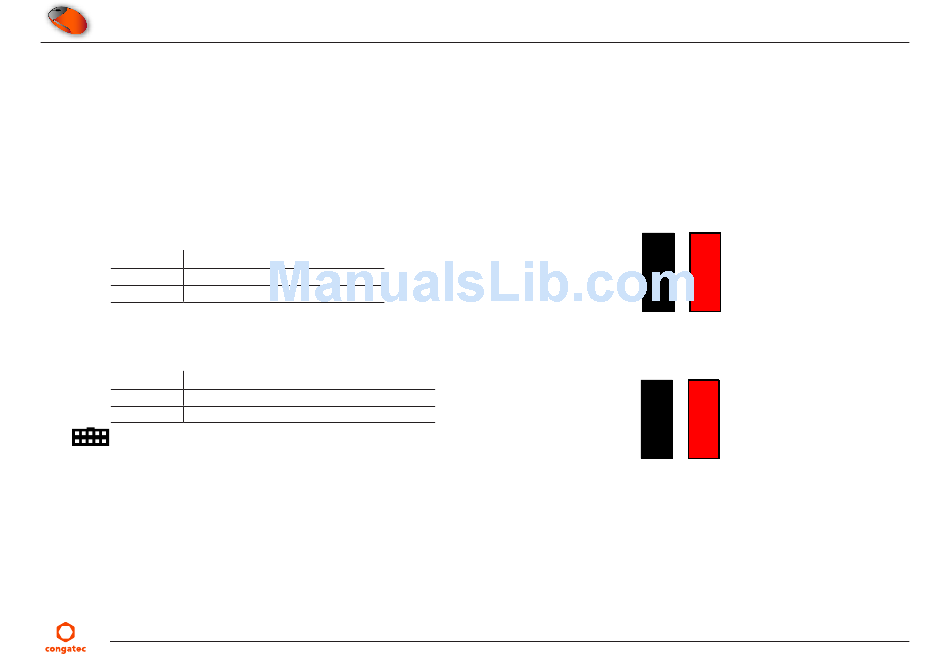

GND 12V - 24V
(M23) (M24)
GND 3.0V - 5.25V
(M25) (M26)
