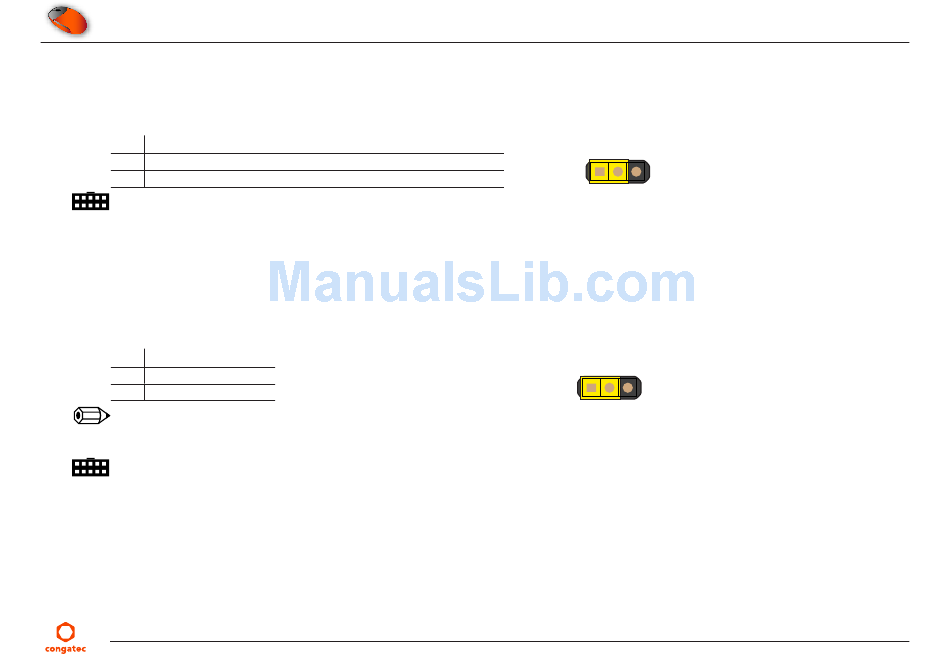

3.4.3.2
Standby Voltage Control
Use jumper X55 to select how the conga-SEVAL standby voltages are controlled.
Table 5
Jumper X55 Description
Pin
Configuration
1-2
CARRIER_PWRON signal controls the carrier board standby voltages
2-3
Carier board standby voltages are always enabled
Connector Type
X55: 2.54 mm grid jumper
3.4.3.3
Supply Voltage for Module
Use jumper X59 to set the module's input voltage to 3.3 V or 5 V.
Table 6
Jumper X59 Description
Pin
Configuration
1-2
3.3 V
2-3
5 V
Note
Jumper X59 has no effect if the module's supply voltage is via connector M25 and M26.
Connector Type
X59: 2.54 mm grid jumper
Copyright © 2017 congatec AG
Jumper X55
1
2
3
Jumper X59
1
2
3
SEVALm10
16/58
