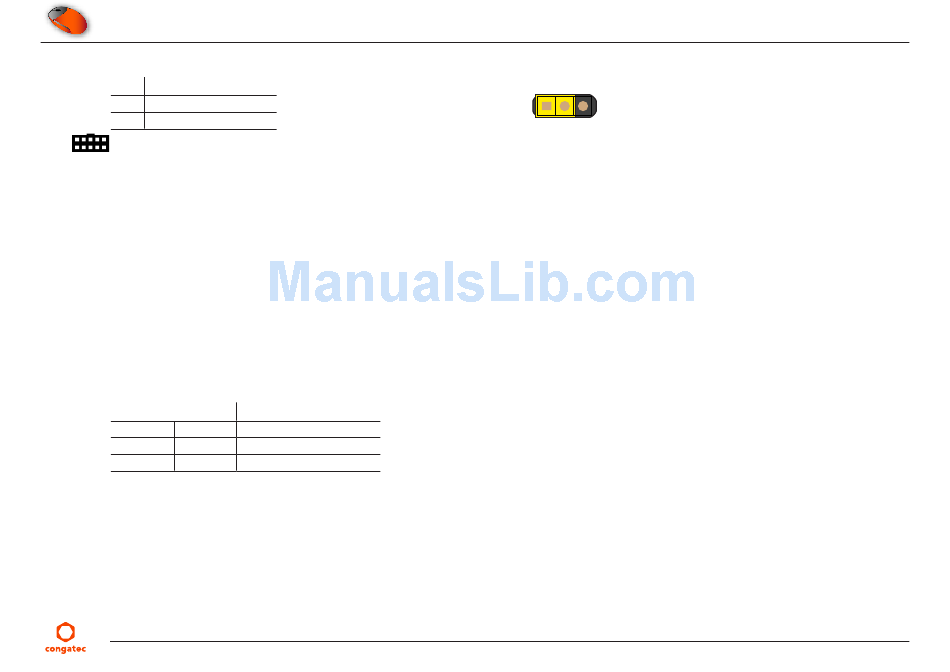

Table 31 Jumper X43 Description
Pin Configuration
1-2 12V
2-3 5V
Connector Type
X42: 4-pin vertical fan connector
X43: 2.54 mm grid jumper
4.12

Audio Interfaces

The conga-SEVAL features two audio codecs—HDA (Cirrus Logic CS4207) and I
• MIC-IN signals on connector X19
• Line-OUT signals on connector X21
• S/PDIF signals on connector X20 (only HDA codec supports S/PDIF)
Use switch 1 of DIP switch M12 to select I
Table 32 I2S or HDA Codec Selection
DIP Switch M12
SW 1 SW 2
OFF N.A
ON N.A
Copyright © 2017 congatec AG
S or HDA codec.
2
Configuration
I²S codec
HDA codec
Jumper X43
1 2 3
S (Cirrus Logic WM8904) codecs. The codecs support:
2
SEVALm10 40/58
