4.12.1

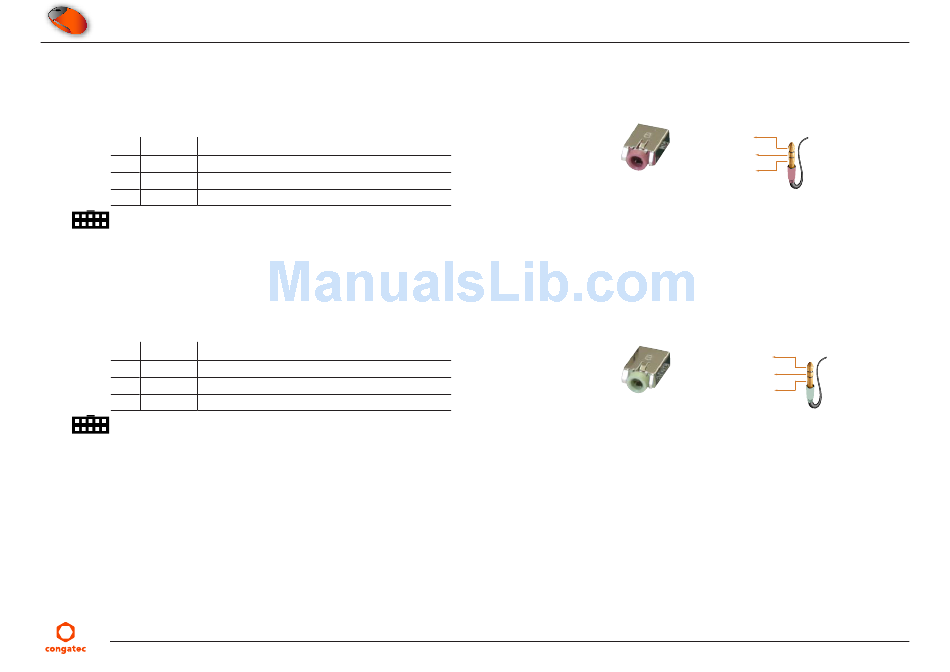

MIC-IN

The conga-SEVAL provides MIC-IN signals on connector X19.
Table 33 MIC-IN (Connector X19) Pinout Description
Pin Jack Signal
1 Tip MIC_L
2 Ring MIC_R
3 Sleeve A_GND
Connector Type
X19: 3-pin, 3.5 mm single audio jack
4.12.2

Line-OUT

Table 34 Line_OUT (Connector X21) Pinout Description
Pin Jack Signal
1 Tip LINE_L
2 Ring LINE_R
3 Sleeve A_GND
Connector Type
X21: 3-pin, 3.5 mm single audio jack
Copyright © 2017 congatec AG
Description
Microphone - left channel
Microphone - right channel
Analog ground
Description
Line-OUT - left channel
Line-OUT - right channel
Analog ground
MIC IN - X19
Line OUT - X21
SEVALm10
Jack (MIC-IN)
Tip
Ring
Sleeve
Jack (Line-IN)
Tip
Ring
Sleeve
