5.8
SATA Interfaces
5.8.1
SATA / SATADOM Ports
The conga-IA5 provides two SATA III ports supporting data rates up to 6 Gb/s. SATADOM is featured on connector CN1 — to enable it, set
SATA Power to SATADOM in the BIOS configuration. Do not connect a SATA device to connector CN1 if SATA Power is set to SATADOM.

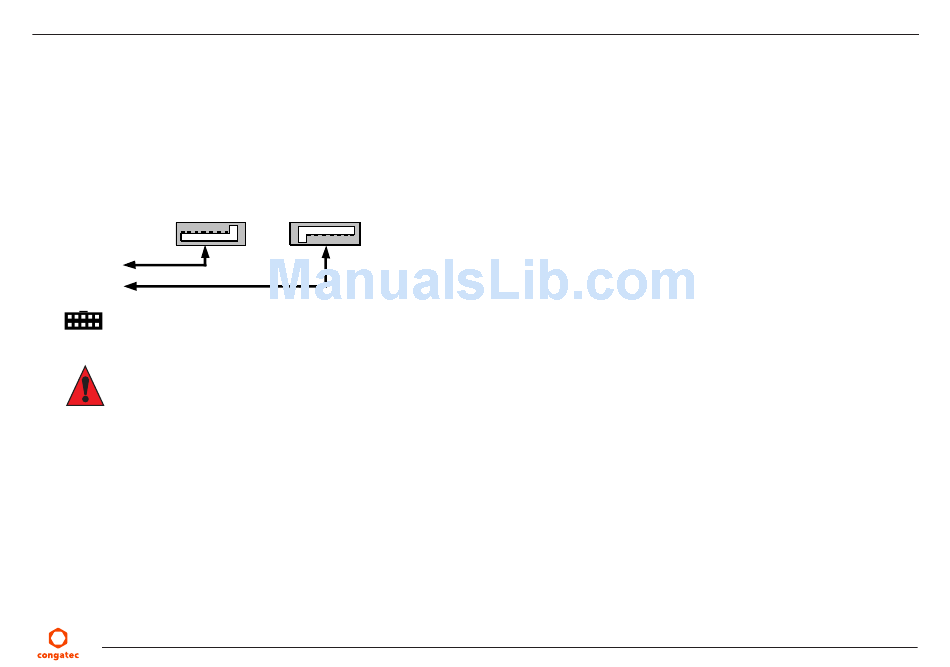

The SATA channel 0 is routed to the connector CN1. The SATA channel 1 is shared between the connector CN2 and M.2 card slot.
The SATA LED on the front panel connector (X39) is lit when there is activity on CN1 or CN2.
SATADOM
1
2
3
4
5
Port 0 (CN1)
Serial ATA Channel 0
Serial ATA Channel 1
Connector Type
CN1, CN2: Standard SATA connector
Caution
Do not connect a SATA device to connector CN1 if SATA Power is set to SATADOM in the BIOS configuration. Otherwise, this will create a
short. The current is limited to 1 A. Set SATA Power to SATA/HDD (default setting) to connect SATA devices.
Copyright © 2017 congatec AG
SATA
6
7
Port 1 (CN2)
7
6
5
4
3
2
1
IA50m01
36/59
