3.3.3 USB Type-C Power Delivery
The conga-SEVAL can be powered by a USB Type-C device attached to connector X4. The USB Type-C port supports USB power delivery up
to 20 V @ 5 A. The port delivers 20 V only when the carrier board receives an input voltage of 20 V. In this mode, the LED D10 glows.
If the input voltage is lower than 20 V, the port provides 12 V or 5 V or both depending on the power delivery profile negotiated with the USB
Type C sink.
Connector Type
X4: USB Type-C receptacle
3.4

Jumper Settings for Power Options

3.4.3.1

Runtime Voltage Control

Use jumper X54 to select the SMARC signal that should enable the runtime voltage of the conga-SEVAL.
Jumper X54 Description
Pin Configuration
1-2 CARRIER_STBY# signal enables carrier board runtime voltages (default)
2-3 CARRIER_PWRON signal enables carrier board runtime voltages
Connector Type
X54: 2.54 mm grid jumper
Copyright © 2017 congatec AG

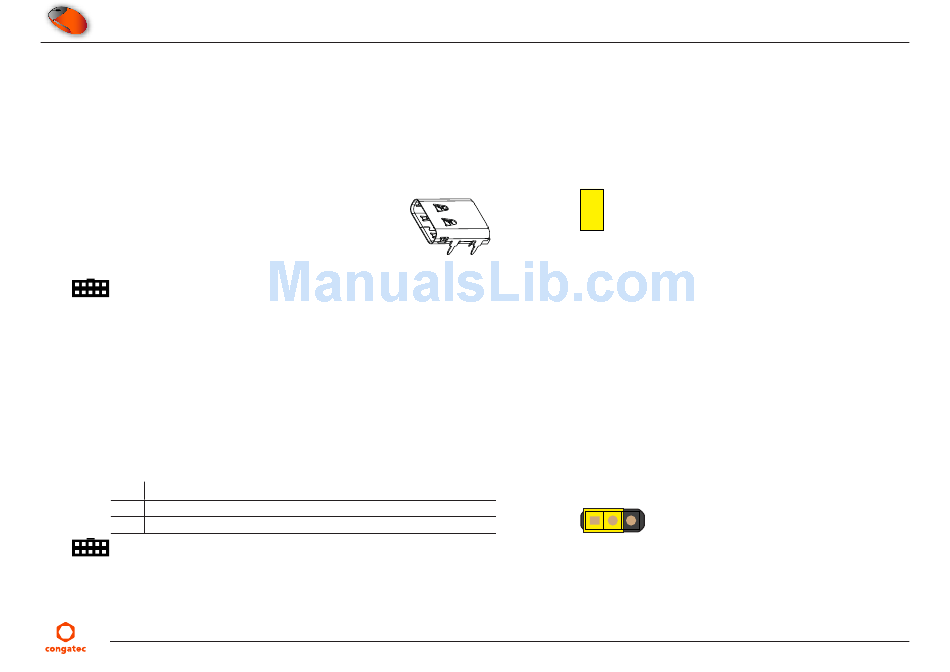

USB Type-C - X4
SEVALm10
D10
Jumper X54
1 2 3
15/58
