4.13.1

DisplayPort++

The conga-SEVAL routes the first DisplayPort (DP0) signals of a SMARC module directly to connector X33 (upper port). The connector supports
dual mode DisplayPort.
Connector Type
X33: DP/HDMI cable
4.13.2

HDMI

The conga-SEVAL supports an HDMI port on connector X33 (lower port). To use this port:
• the attached SMARC module must support native HDMI functionality
• set jumper X34 to position 2-3
Table 36 Jumper X34 Pin Description
Pin Configuration
1-2 DisplayPort on USB Type-C connector (X4)
2-3 HDMI (default)
Connector Type
X33: DP/HDMI cable
X34: 2.54 mm grid jumper
Copyright © 2017 congatec AG

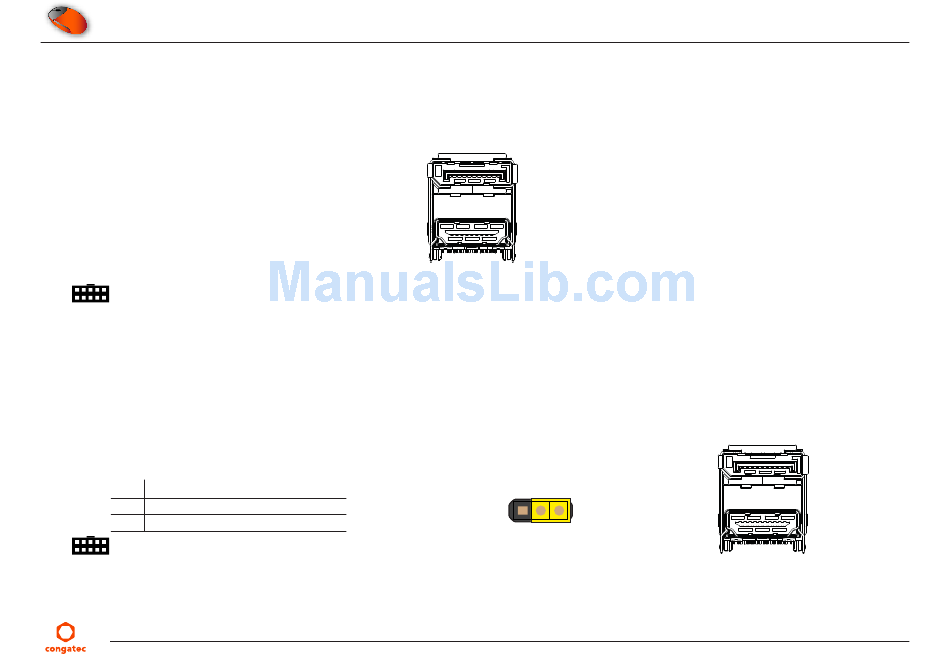

X33 - Stacked DP++ and HDMI
Jumper X34
1 2
SEVALm10
X33 - Stacked DP++ and HDMI
3
