5.6

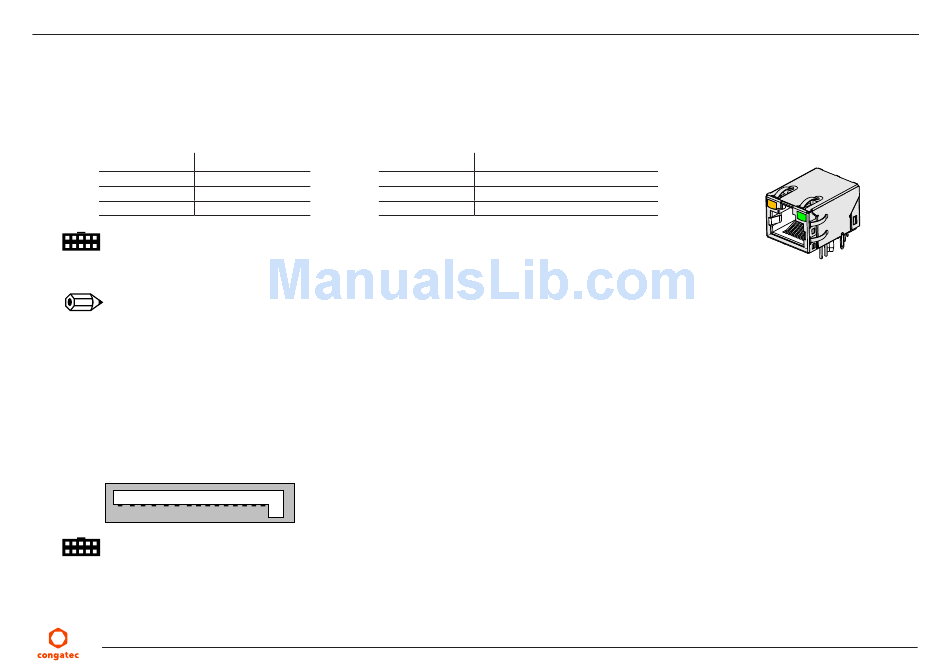

Gigabit Ethernet Ports

The conga-IA5 provides two Gigabit Ethernet ports (connectors X6 and X7) on the rear side. The two Gigabit Ethernet interfaces are supported
via the Intel Gigabit Ethernet controller i211 (commercial variants) or i210 (industrial variants).
Table 30 Gigabit Ethernet LED Description
LED Left Side Description
Off 10 Mbps link speed
Green 100 Mbps link speed
Orange 1000 Mbps link speed
Connector Type
X6, X7: 8 pins, RJ45 connector with gigabit magnetic and LEDs
Note
Connectors X6 and X7 do not support the Intel
5.7

SATA Connectors

5.7.1

SATA Power Connector

The conga-IA5 provides a SATA power connector (X11), supplying 3.3V, 5V and 12V with maximum 1.5A each.
X11
15 14 13 12 11 10 9 8 7
Connector Type
X11: 15 pins, SATA connector
Copyright © 2017 congatec AG
LED Right Side Description
Off
Steady On
Blinking
® AMT feature.
6 5 4 3 2 1
No link
Link established, no activity detected
Link established, activity detected
IA50m10
X6, X7
