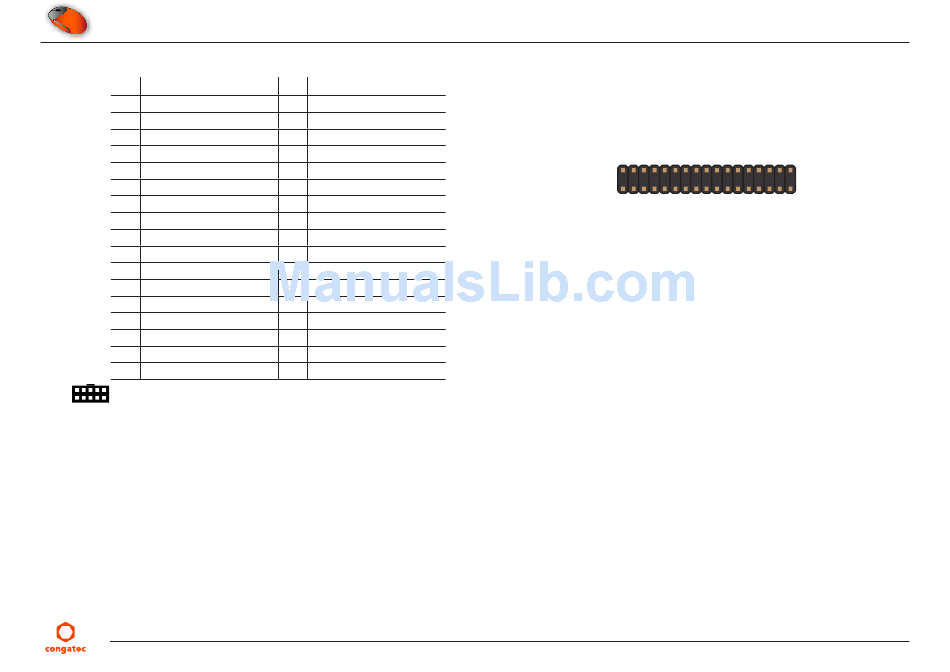

Table 42 Connector X23 Pinout Description
Pin Signal
1 LVDS_DDC_DAT
2 LVDS_DDC_CLK
3 eDP0_HPD / DSI0_TE
4 eDP1_HPD / DSI1_TE
5 GND
6 LVDS0_D0-
7 LVDS0_D0+
8 LCD0_VDD_EN
9 LVDS0_D1-
10 LVDS0_D1+
11 LCD0_BKLTEN
12 LVDS0_D2+
13 LVDS0_D2-
14 NC
15 LVDS0_CLK-
16 LVDS0_CLK+
17 NC
Connector Type
X23: 2 mm, 2 x 17 pin header
4.13.4.3

Flat Panel and Backlight Power Supply

The conga-SEVAL provides the following power supply connectors for panels and backlight inverters:
• connector X26 for LVDS panel connected to X23 or eDP panel connected to X31
• connector X30 for eDP panel connected to X32
Copyright © 2017 congatec AG
Pin Signal
18 LVDS0_D3+
19 LVDS0_D3-
20 GND
21 LVDS1_D0-
22 LVDS1_D0+
23 GND
24 LVDS1_D1-
25 LVDS1_D1+
26 GND
27 LVDS1_D2-
28 LVDS1_D2+
29 GND
30 LVDS1_CLK+
31 LVDS1_CLK
32 NC
33 LVDS1_D3+
34 LVDS1_D3-
LVDS Connector - X23
