4.6
SATA

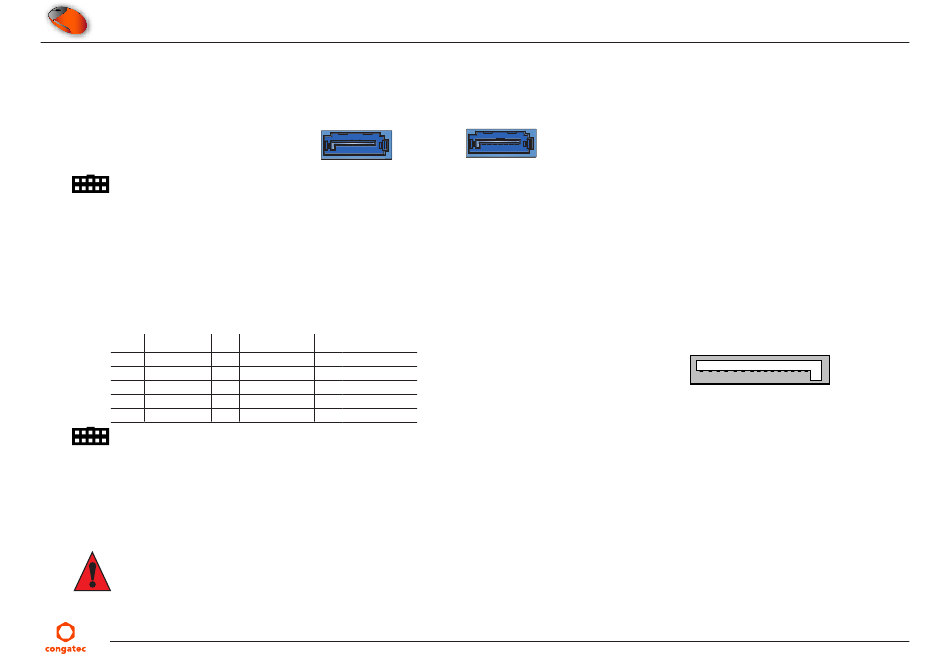

The conga-HPC/EVAL-Server provides two standard SATA connectors—port 0 via connector X20 and port 1 via connector X21.
Connector Type
X20, X21: Standard SATA plug
4.6.1
SATA Power
The conga-HPC/EVAL-Server provides a standard 15-pin SATA power connector (X22). This connector supplies 3.3 V, 5 V and 12 V.
Table 27
X22 - SATA Power Pinout Description
Pin
Signal
Pin Signal
1
3.3 V
6
2
3.3 V
7
3
3.3 V
8
4
GND
9
5
GND
10
Connector Type
X22: Standard 15-pin SATA power connector
4.6.2
Disk Drive Power Connector
The conga-HPC/EVAL-Server provides connector X23, a 4-pin connector for powering disk drives.
Caution
Do not connect more than one peripheral device to connector X23. The peripherals may damage if you do so.
Copyright © 2022 congatec AG
X20
Port 0
7 6 5 4 3
2 1
Pin Signal
GND
11
GND
5 V
12
GND
5 V
13
12 V
5 V
14
12 V
GND
15
12 V
X21
Port 1
7 6 5 4 3
2 1
HEVAm100
X22
15
14
13
12
11
10
9
8
7
6 5 4 3 2 1
37/54
