4.1.3.2

Power Management I2C

The power management I²C signals are available in different locations on the conga-SEVAL. The conga-SEVAL includes socket P21 for an
I²C EEPROM (U42). The EEPROM is connected to the power management bus, in the module's power domain. This connection enables the
module to obtain carrier board parameters from the EEPROM, before asserting the CARRIER_PWR_ON signal.

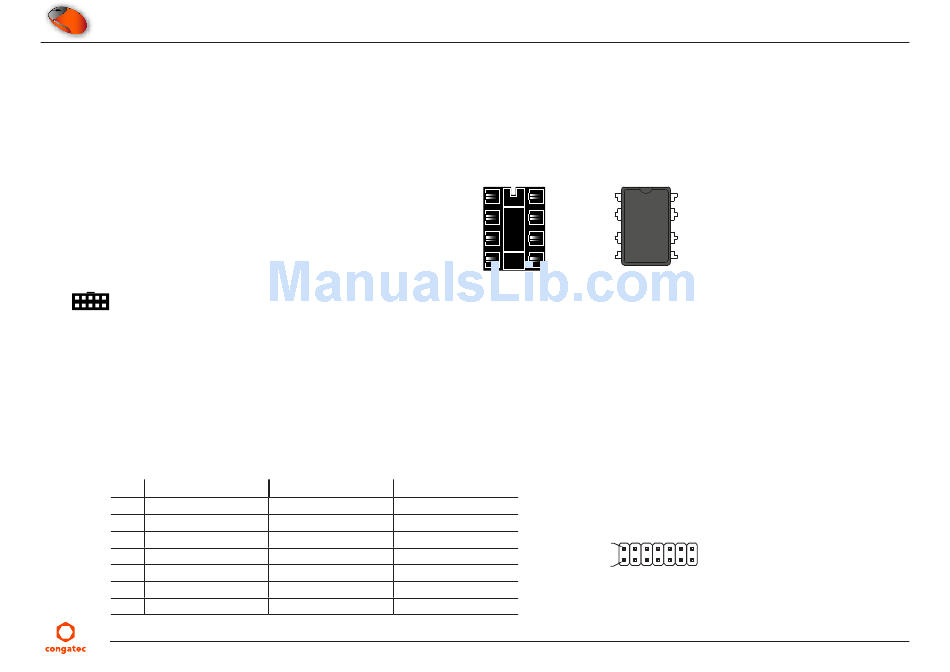

The conga-SEVAL features an Atmel 24C32 EEPROM on the 8-pin DIL socket (P21). The address inputs (A0 - A2) of the EEPROM are set to
binary 111.
Connector Type
P21: 8-pin DIL socket
U42: 8-pin I 2 C EEPROM
4.1.4

eSPI / SPI1

The conga-SEVAL provides eSPI / SPI signals on connector CN2 for eSPI add-on modules.
Table 17 Connector CN2 Description
Pin Signal
1 GND
3 ESPI_CLK_R
5 Empty
7 ESPI_RST#
9 +V3.3S
11 ESPI_ALERT1#
13 +V3.3A
Copyright © 2017 congatec AG
I C_PM EEPROM
2
Socket
Pin Signal
2 ESPI_CS0#
4 ESPI_IO3
6 ESPI_IO2
8 ESPI_IO1
10 ESPI_IO0
12 ESPI_CS1#
14 ESPI_ALERT0#
P21
U42
eSPI / SPI - CN2
Pin 2
Pin 1
