5.5
SATA Connectors
The conga-PA5 provides a SATA / SATADOM port, a 2-pin SATA power connector and an mSATA/mini PCIe card socket.
5.5.1
SATA / SATADOM Port
The conga-PA5 provides one SATA 6Gb/s port (CN1). To use SATADOM devices with built-in pin 7, enable SATADOM in the BIOS menu. You
can connect a SATA activity LED to pin 11 (anode) and 12 (cathode) of the feature connector (X18).
Connector Type
CN1: SATA / SATADOM port
5.5.2
2-Pin SATA Power Connector
The conga-PA5 provides a 5V SATA power connector (X11). The maximum current is limited to 1 A by a fuse.
Table 17
X11 Pinout Description
Pin Signal
1
+5V (max. 1.0 A)
2
+GND
Connector Type
X11: 2x1 pins, 2.50 mm pitch (Molex 53375-0210); Possible Mating Connector: Molex 51103-0200
5.5.3
mSATA Card Slot
The mSATA card slot is described in section 5.9 "mPCIe / mSATA Card Slot".
Copyright © 2017 congatec GmbH

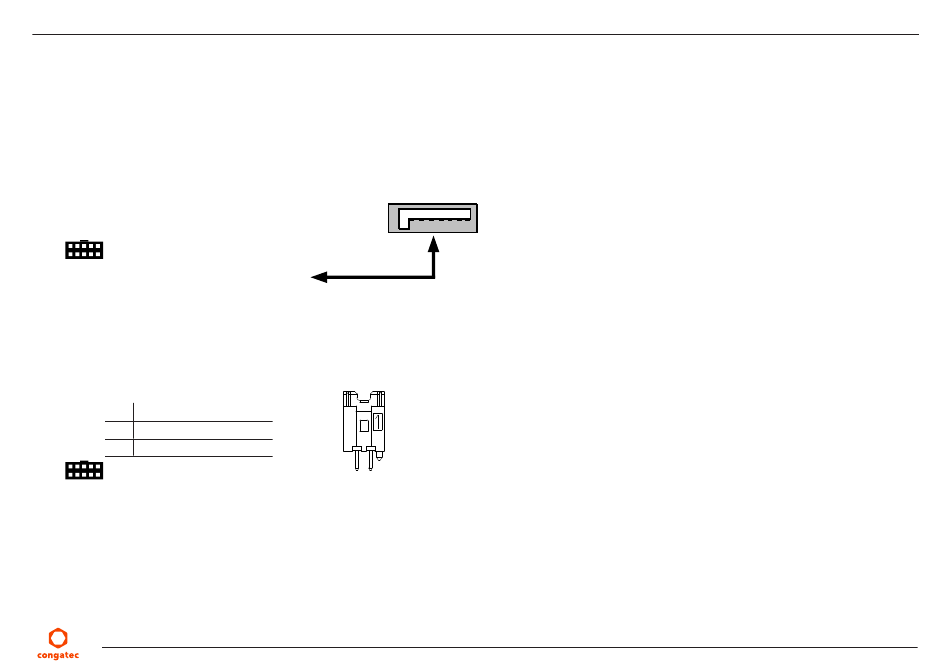

CN1
7
6
5
4
3
2
1
Serial ATA Channel 0
X11
PA50m112
31/48
