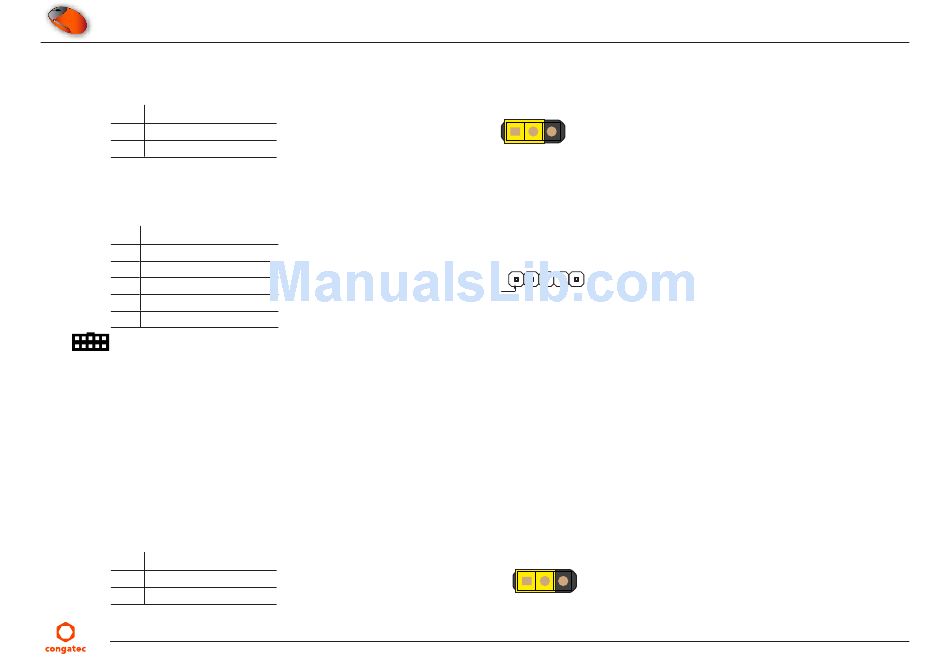

Use jumper X40 to enable or disable GPIO[0:7] pins.
Table 52 Jumper X40 Description
Pin Configuration
1-2 Enable GPIO [0:7] (default)
2-3 Disable GPIO [0:7]
Table 53 GPIO Connector X38 Description
Pin Signal
1 GPIO0
2 GPIO1
3 GPIO2
4 GPIO3
5 GND
Connector Type
X38: 2.54 mm, 1 x 5 pin header
X40: 2.54 mm grid jumper
5.6

JTAG (Debug Feature) - Internal Use Only

The conga-SEVAL provides a JTAG interface on connector X62. This interface is used for programming and debugging the congatec board
controller.
Set jumper X44 to position 1-2 for normal operation.
Table 54 Jumper X44 Description
Pin Configuration
1-2 Normal Operation (default)
2-3 Test Mode
Copyright © 2017 congatec AG
Jumper X40
1 2 3
GPIO [0:3] - X38
Pin 1
Jumper X44
1 2 3
SEVALm10 55/58
