4.6

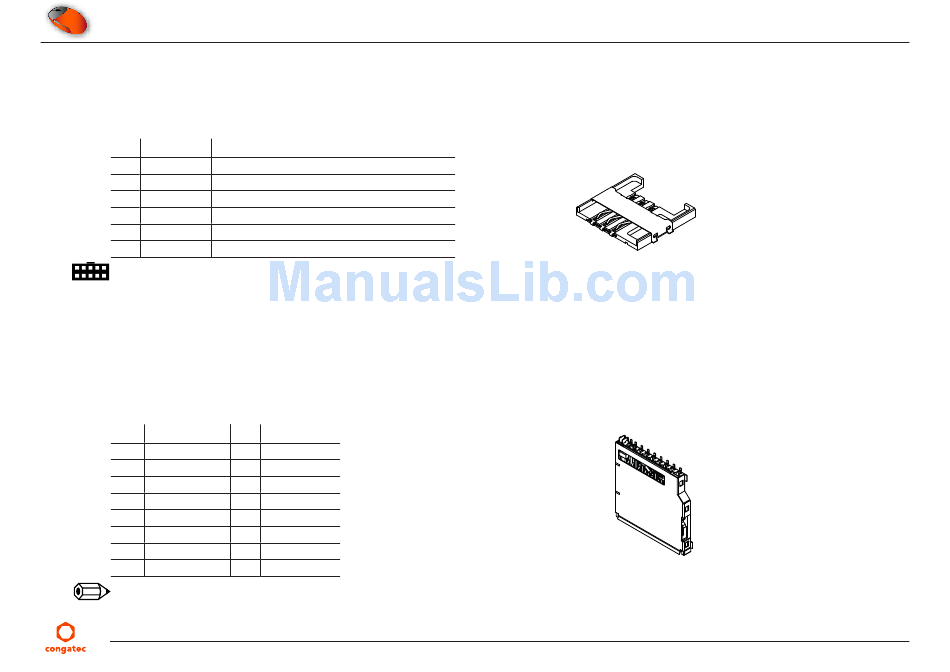

SIM Card Slot

The conga-SEVAL features a SIM card slot on connector X8. The slot is connected to the UIM interface of the mPCIe slot.
Table 23 Connector X8 Pinout Description
Pin Signal Description
1 UIM_PWR Power
2 UIM_RST Reset
3 UIM_CLK Clock
4 GND Ground
5 UIM_VPP Programming voltage input
6 UIM_DAT Data
Connector Type
X8: SIM Card socket (Molex 47308-0001)
4.7

SD Card Slot

The conga-SEVAL features a full-size SD card slot on connector CN1.
Table 24 Connector CN1 Pinout Description
Pin Signal
1 SDIO_WP
2 SDIO_CD#
3 SDIO_D1
4 SDIO_D0
5 N.C
6 GND
7 N.C
8 SDIO_CLK
Note
SDIO based cards will not function on the M.2 connector if an SD card is inserted into connector CN1.
Copyright © 2017 congatec AG
Pin Signal
9 +V3.3S_SDIO
10 GND
11 N.C
12 SDIO_CMD
13 N.C
14 SDIO_D3
15 SDIO_D2
SIM Card Slot - X8
SD Card Slot - CN1
SEVALm10 35/58
